DETAILS


Reliable Ethernet, Even When The Weather Isn’t!

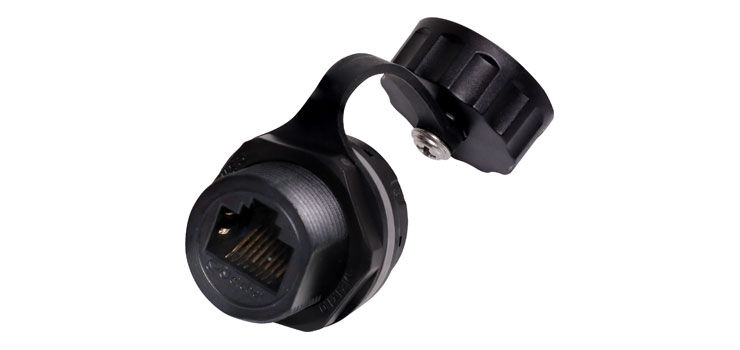

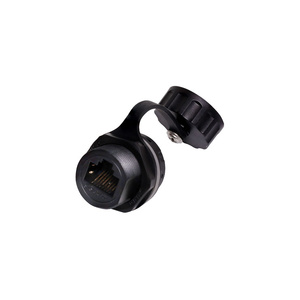

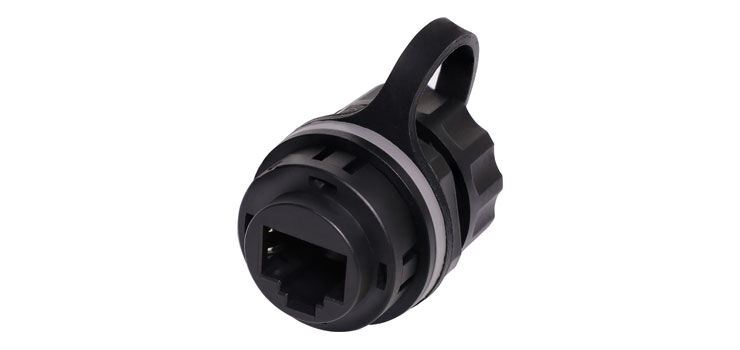

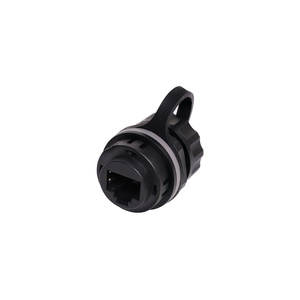

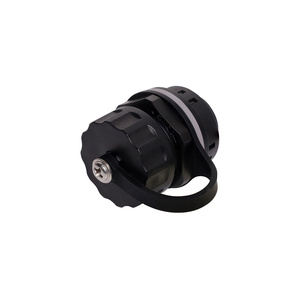

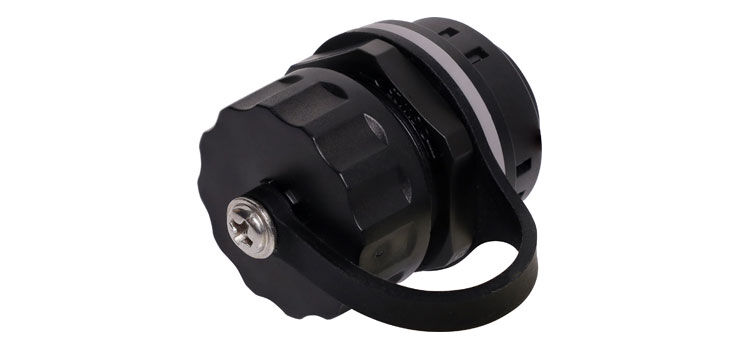

This waterproof IP68 rated 8P8C RJ45 panel mount connector provides secure wateproof data connections for equipment it is built into. It features a back to back connection - no termination or punchdown terminals to deal with. Requires 21mm mounting hole. Supplied with protective screw on cap fitted with rubber retainer.

SPECIFICATIONS:

  • Part Number    P0847 (Altronics)
  • Configuration    Chassis-mount, back‑to‑back RJ45
  • Panel Hole Size    21 mm
  • Material    Flame-retardant PBT
  • IP Rating    IP68
  • Rated Current    1.5 A
  • Withstand Voltage    1000 VAC
  • Flammability Rating    UL 94 V‑0
  • Acceptable Cable OD    4.0–6.5 mm
  • Panel Mount Style    M21 threaded mount
  • Protective Cap    Screw-on, rubber-retained
  • Warranty    12 months (30-day money-back)
