Ends in:Uniden XTRAK 80 Offroad Pack | Smart UHF CB Radio | ATX970S Heavy Duty Antenna
Buy Now, Pay Later.
DETAILS
Overview
UHF CB with a heavy duty antenna

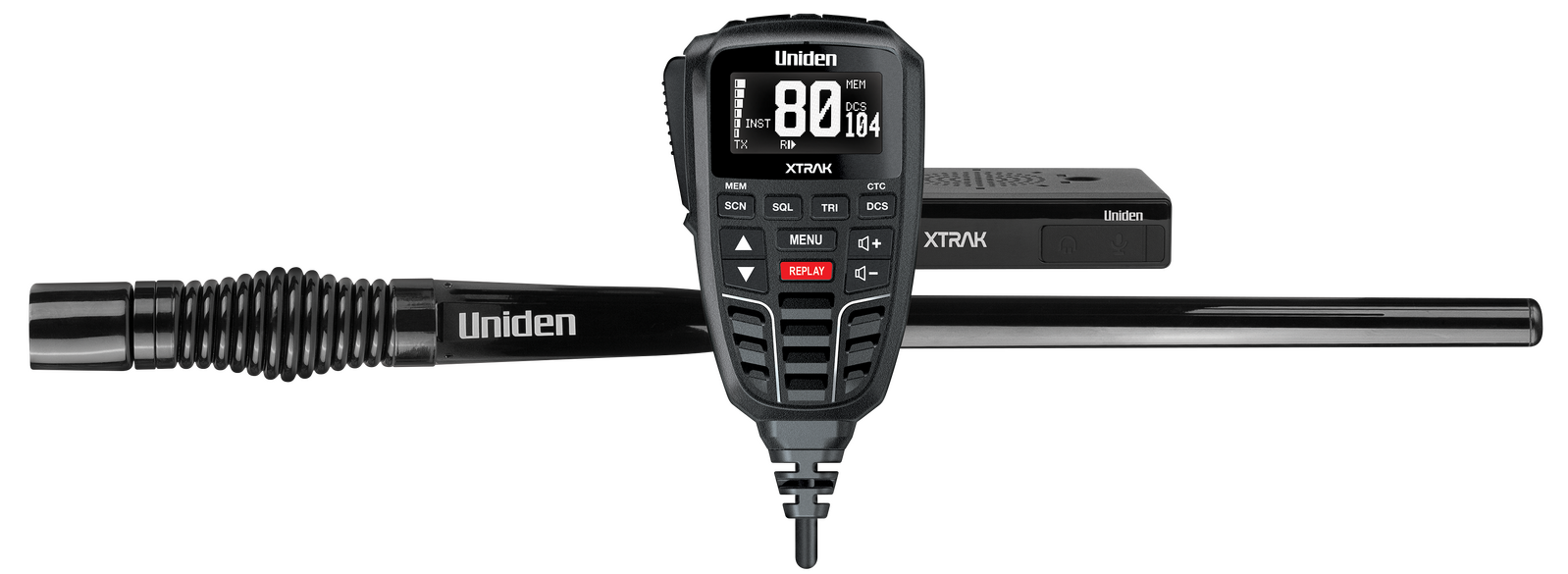

The XTRAK 80 in-vehicle UHF CB with an ATX970S 3.0 dBi heavy duty radome antenna. Everything you need to get a 4WD on air in one box.
The OLED display and controls sit on the remote speaker mic, and the slim base unit hides away. The ATX970S has an aluminium ferrule, stainless steel spring, locking key and weather cap, with 4.5m of coax already fitted. For a handheld at camp, add an XTRAK 50.
80UHF Channels
5WTransmit Power
6 minInstant Replay
3.0 dBiATX970S Antenna
In the cab
The whole radio sits in your hand

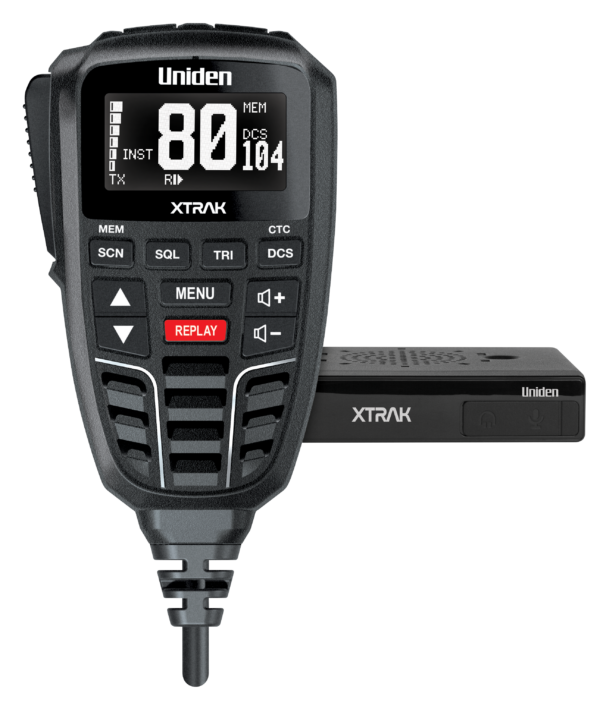

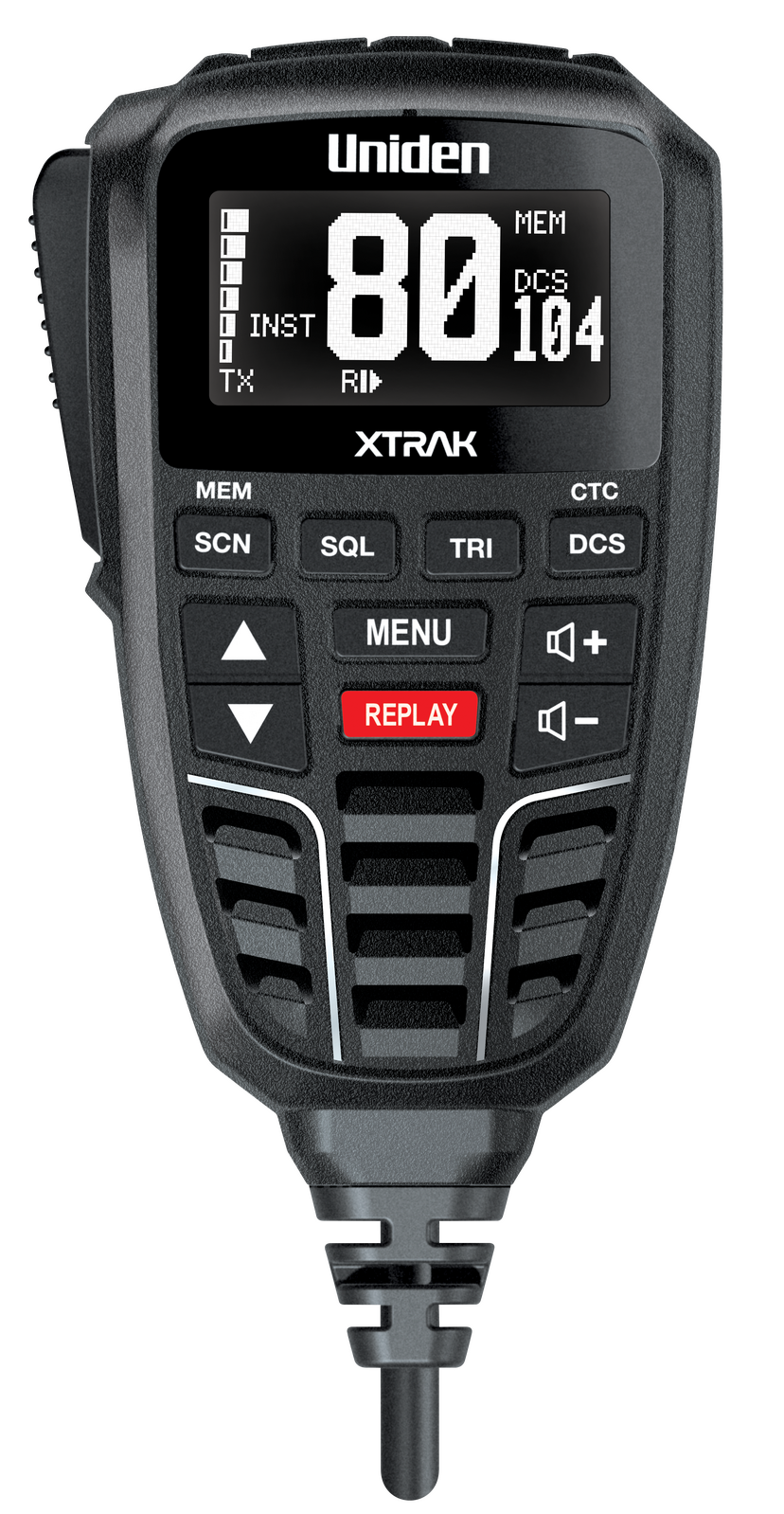

The XTRAK 80 puts the screen and controls on the remote speaker mic, so the compact base unit can hide under a seat or behind the dash. The large anti-glare OLED display has a dimmer for night driving, and the 2W speaker in the mic keeps voices clear over road noise.
- ✓Anti-glare OLED display with dimmer
- ✓2W speaker in the mic
- ✓Base unit only 24.8mm high
Antenna included
ATX970S heavy duty antenna

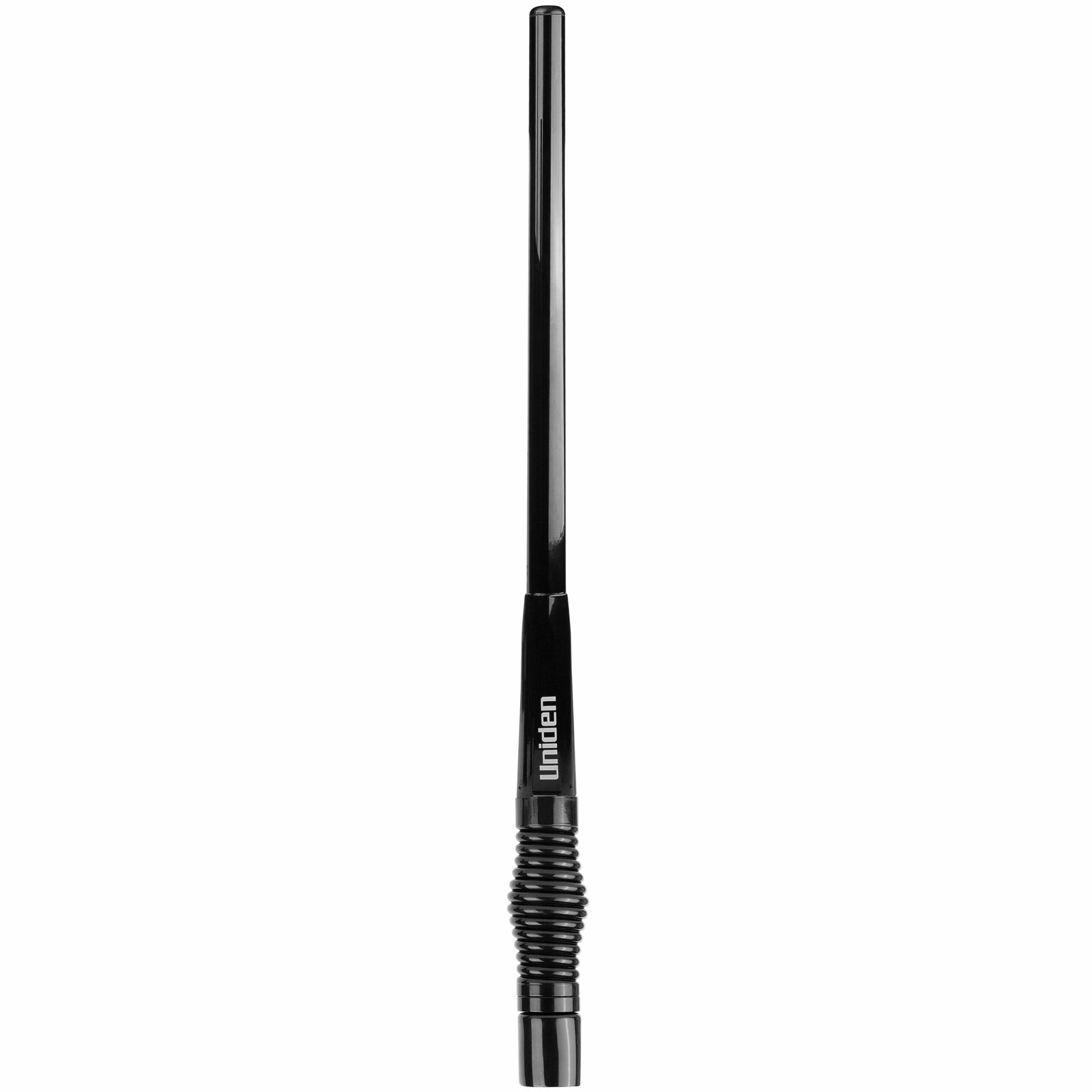

The ATX970S is a 3.0 dBi ground independent radome antenna, made for all-round use on flat terrain, in town and in the country. It has an aluminium ferrule and a heavy duty stainless steel spring, and stands 702mm tall once mounted. It comes with 4.5m of low loss coax, an FME connector with PL259 adaptor, a locking key and a weather cap.
- ✓3.0 dBi, 702mm mounted height
- ✓Stainless steel spring, 8mm thread
- ✓4.5m coax with PL259 adaptor
Channels
Stay on air when channels get busy
Master Scan keeps a group talking on busy channels. Every radio in the group scans the same channels with the same CTCSS or DCS code, and when another user jumps on, the radio moves to a clear group channel. You also get Open and Group Scan with Priority Watch, 50 CTCSS and 104 DCS codes, and 100 extra receive channels you can program from 400 to 520MHz.
- ✓Master Scan for convoys and groups
- ✓50 CTCSS and 104 DCS codes
- ✓100 extra receive channels
Goes well with
Complete your setup
Uniden XTRAK50 XTRAK 50 Smart UHF Waterproof Handheld Radio | 5W | OLED Display
5W waterproof handheld with the same OLED display and Instant Replay, for use away from the vehicle.
Uniden MBU-05BK Heavy Duty Folding Antenna Mount Bracket | Black
Heavy duty folding bracket to mount your UHF antenna on the vehicle.
Frequently asked questions
Do I need a ground plane for the antenna?
No. The ATX970S is ground independent, so it works on a bull bar or bracket mount without a metal ground plane. It comes with 4.5m of coax already fitted with an FME connector and PL259 adaptor.
Do I need a licence to use it?
UHF CB in Australia is covered by the ACMA Citizen Band Radio Stations Class Licence, and you must follow the conditions in that licence. Uniden notes the radio must only be used in the country of purchase.
Can I talk on all 80 channels?
Most of them. Channels 22 and 23 are for data only, so voice transmission is blocked, and channels 61, 62 and 63 are reserved for future use and are receive only. Channels 5 and 35 are emergency channels.
Will it work in my truck?
Yes. It runs on 12V or 24V DC and accepts 10.2V to 28.8V, so it suits cars, 4WDs, caravans and trucks. It alerts you if the supply goes too high or too low.
What's the difference between the XTRAK 80 and XTRAK 80 Pro?
They share the same radio features. The Pro adds Bluetooth: the XTRAK Pro App for location sharing, settings and text messages, and Bluetooth audio to compatible headsets and vehicle speakers.
Features
- ✓XTRAK 80 in-vehicle UHF CB, 80 channels, 5W
- ✓ATX970S 3.0 dBi heavy duty radome antenna, 702mm mounted
- ✓Large anti-glare OLED display with dimmer on the mic
- ✓Instant Replay of up to 6 minutes of received calls
- ✓Selcall with Alpha Tag, Master Scan and Triple Watch
- ✓Magnetic mic mount, 12V or 24V power
Specifications
| Channels | 80 UHF CB, narrowband |
| Channel notes | CH 22 and 23 data only (voice TX inhibited); CH 61 to 63 reserved, receive only |
| Transmit power | 5W maximum |
| Display | Anti-glare OLED with dimmer |
| Speaker | 2W in the remote speaker microphone |
| Instant Replay | Up to 6 minutes of received transmissions |
| Smart keys | 3 programmable |
| Scan | Open and Group Scan with Priority Channel Watch, Triple Watch, Master Scan |
| Squelch | 10 level |
| Quiet codes | 50 CTCSS and 104 DCS |
| Extra receive channels | 100 user programmable, 400 to 520MHz in 12.5kHz steps |
| Selcall | Yes, with Alpha Tag |
| Voice scramble | Yes |
| External speaker jack | Yes |
| Power | 12V or 24V DC (10.2V to 28.8V) |
| Mic extension cable | 2m |
| Base unit size | 126.5mm W x 99.8mm D x 24.8mm H |
| Antenna | ATX970S heavy duty radome, black |
| Antenna gain | 3.0 dBi, ground independent, 477MHz |
| Antenna height | 702mm mounted, 570mm whip |
| Antenna spring | Stainless steel, 44-55-44mm barrel, 8mm thread, aluminium ferrule |
| Antenna cable | 4.5m low loss coax, FME female with PL259 adaptor |
| Antenna extras | Locking key and weather cap |
| Designed in | Japan |
| Warranty | 5 years radio, 1 year included accessories |
| Brand | Uniden |
What's Included
- 1 x XTRAK 80 base unit
- 1 x XTRAK 80 remote speaker microphone
- 1 x ATX970S 3.0 dBi antenna
- 1 x quick release bracket kit
- 1 x gimbal mounting bracket
- 1 x magnetic mic mount
- 1 x 2m mic extension cable
- 1 x DC power lead with fuse
- 2 x Uniden decals
Product Details
| SKU | XTRAK80-OFFROAD |
| Barcode # | 9322402016962 |
| Brand | Uniden |
| Shipping Weight | 4.3200kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.080m |
| Shipping Length | 0.830m |
| Shipping Cubic | 0.019040000m3 |
