Overview

Made for the Suzuki Jimny,
plug in and go.

Gives your driving light or light bar harness a clean high beam signal, so your lights come on with your high beams. It plugs in line with the factory wiring, so there is no cutting, splicing or soldering, and it unplugs again whenever you like.

Designed to work with our Perception Lighting driving light wiring harnesses.

Suzuki Jimny

Vehicle shown for reference only. Photo: Rutger van der Maar, CC BY 2.0, via Wikimedia Commons, resized.

6-PinFactory Connector
2-PinHarness Plug
No CuttingPlug and Play
AdapterHarness Sold Separately

Connector check

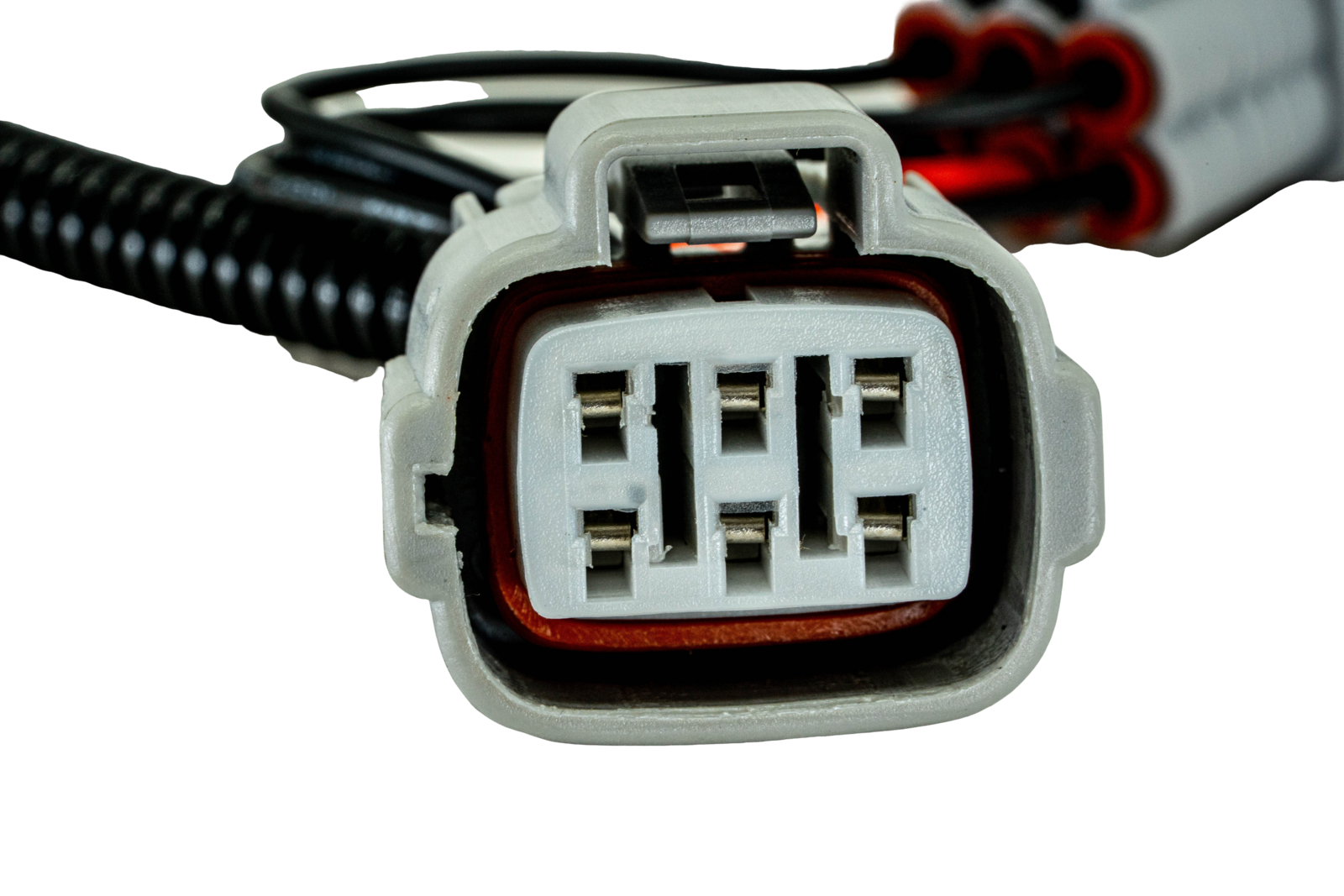

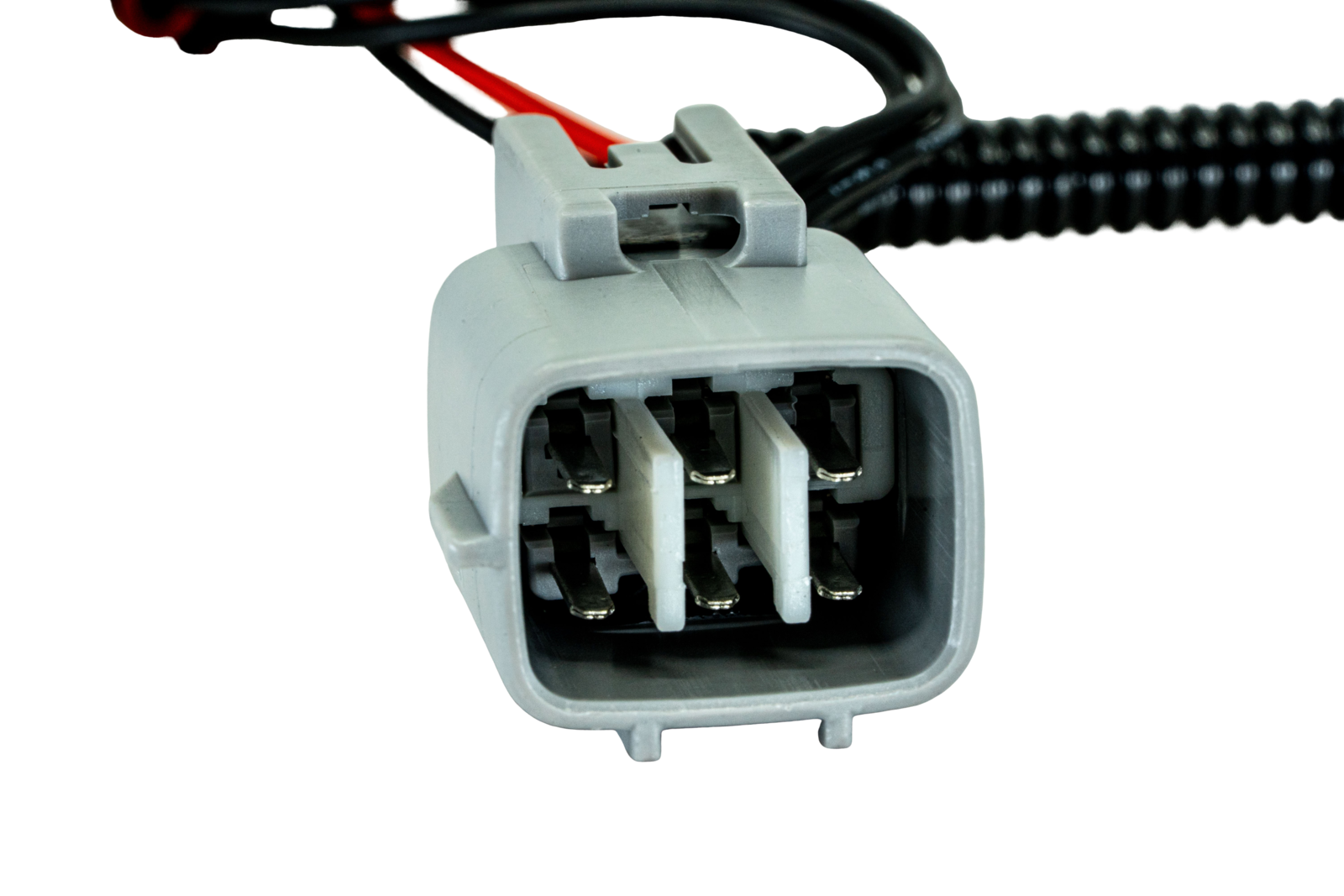

Plugs in line with the factory 6-pin headlight connector.

Check before you buy: Unplug the connector at the back of your headlight and count the pins. It should have 6 pins. Not sure? Ask our team.

Compatibility

  • ✓Suzuki Jimny JB64W
  • ✓Suzuki Jimny Sierra JB74W
  • ✓Suzuki Jimny XL 5-door JC74

Tech specs

Connection6-pin factory headlight connector

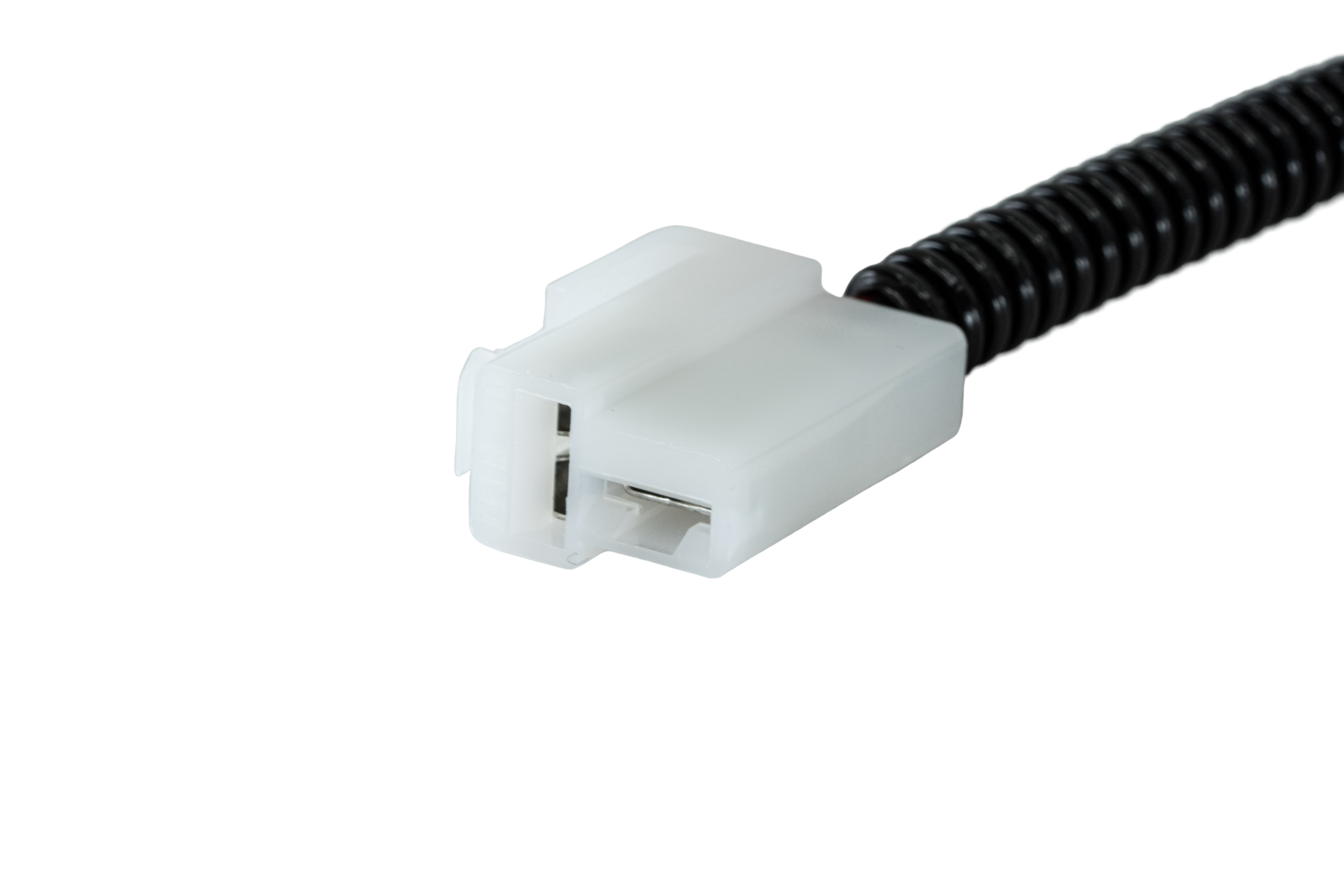

Harness Plug2-pin, suits our driving light harnesses
SuitsSuzuki Jimny JB64W
Suzuki Jimny Sierra JB74W
Suzuki Jimny XL 5-door JC74
InstallPlug and play, no cutting or soldering
BrandPerception Lighting

What’s included

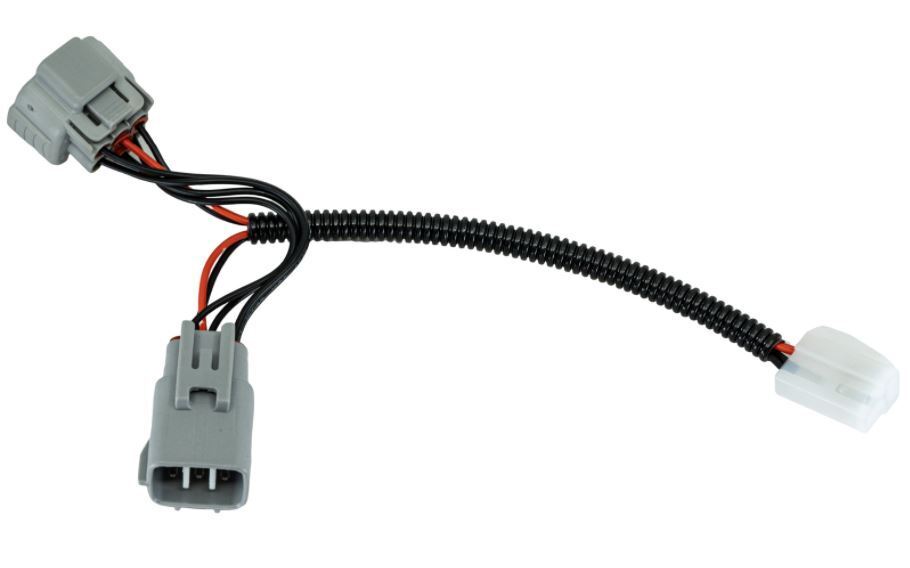

Suzuki Jimny High Beam Piggy Back Adapter (JB64W/JB74W)
  • ✓1 x high beam piggy back adapter

Driving light wiring harness, lights and switch are not included.

Simple installation

1Unplug

Unplug the factory connector from the back of the headlight.

2Plug in

Plug the adapter in between the headlight and the factory plug.

3Connect

Plug your driving light harness into the adapter, then test with your high beams.

Not sure what you need?

Tell us your vehicle, build date and headlight type and we will check the right adapter with you before you buy.

Contact our team

Features

Suzuki Jimny High Beam Piggy Back Adapter (JB64W/JB74W/JC74) Brand: Perception Lighting SKU: PIGGY-JIMNY

Product Details

SKU PIGGY-JIMNY
Brand Perception Lighting
Shipping Weight 0.1000kg
Shipping Width 0.190m
Shipping Height 0.050m
Shipping Length 0.130m
Shipping Cubic 0.001235000m3
