DETAILS

Starlink Gen 2 DC-DC Converter – Reliable Power for Your Starlink System!

The Powertec Starlink Gen2 DC/DC Converter enables you to power a Gen2 Actuated Starlink dish from 9-36V. Ideal for economically powering the dish in off grid applications in vehicles, caravans, motorhomes, homes and from solar.

Powering your dish from DC, instead of AC with an inverter, could save up to 15% in power consumption. When you are off grid using batteries, this can be a significant saving.

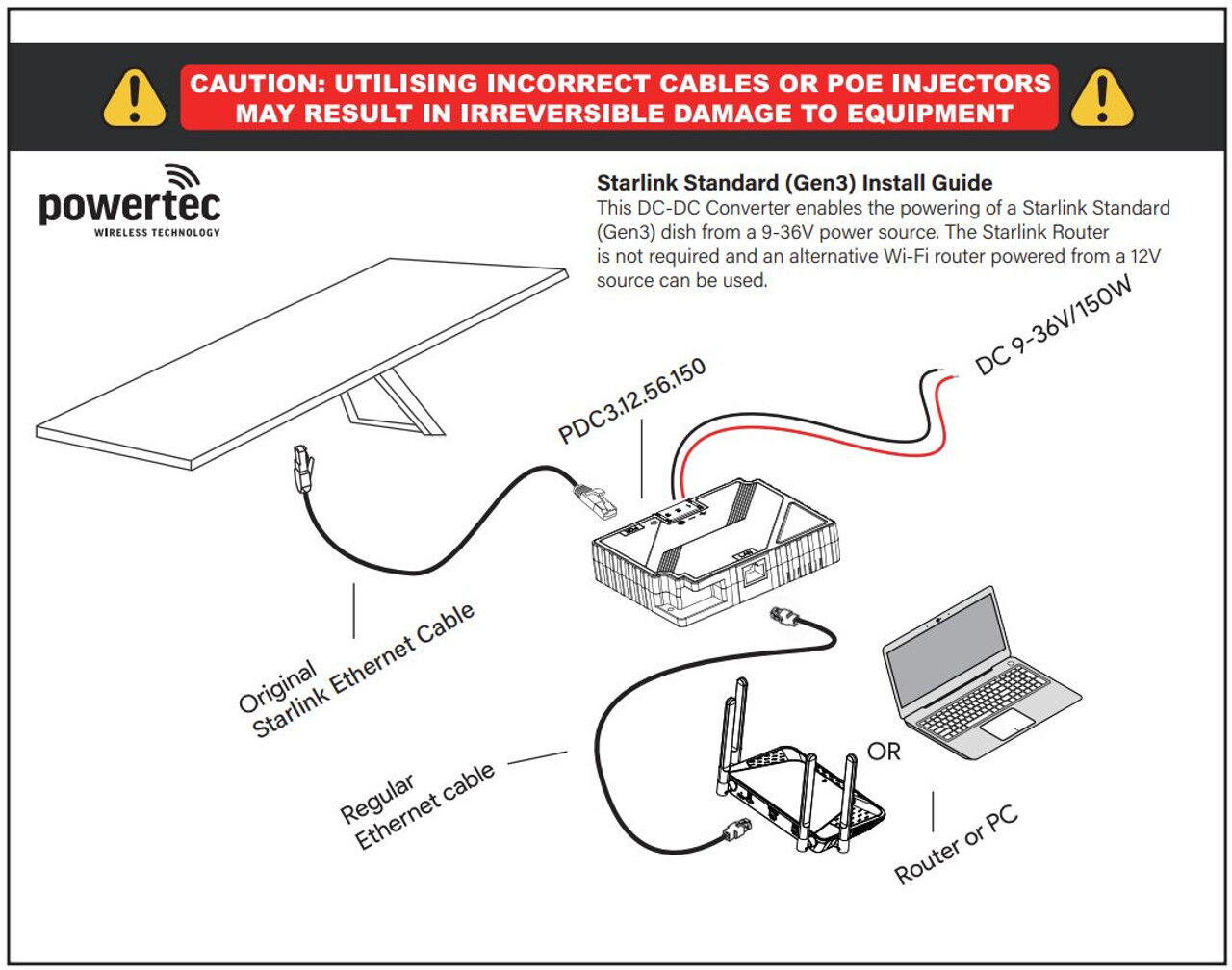

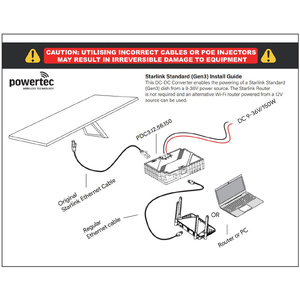

Connection to the Starlink dish is plug and play, and the existing Starlink router can be replaced with a 12V WiFi router. The existing Starlink Gen2 SPX network cable is used to power the dish, without the need to cut and terminate the cable.

Specifications:

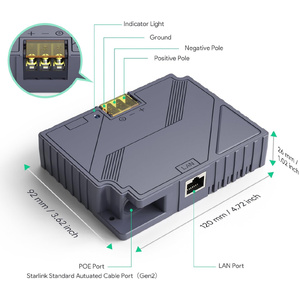

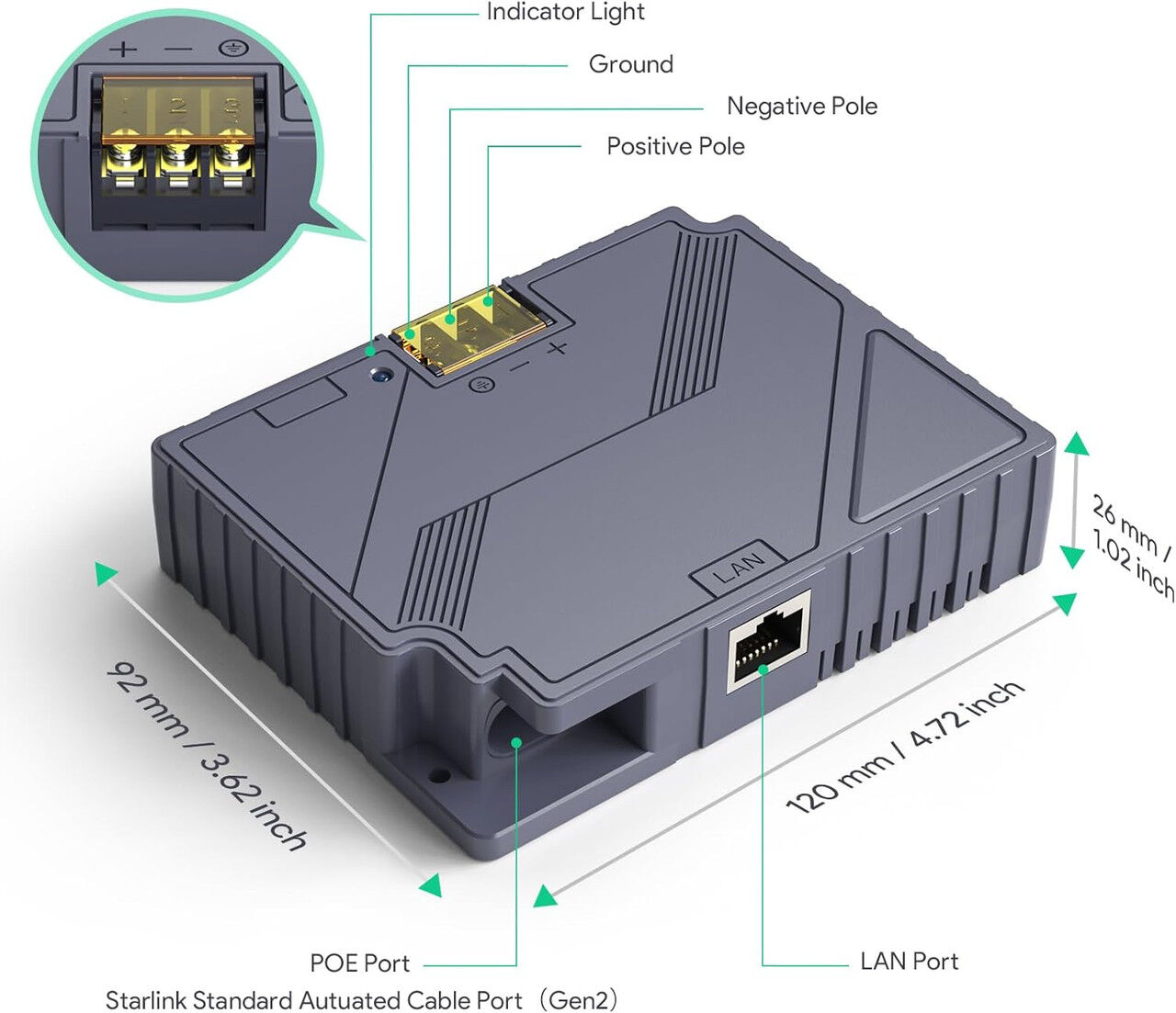

  • Interface    SPX x1, LAN x1, Power
  • Pin Configuration    +V: 1,2,3,6; -V: 4,5,7,8
  • Network Speed    10/100/1000Mbps (Gigabit Ethernet)
  • Input    DC 9-36V/15A
  • Input/Output    DC 56V/3A Max
  • Surge Protection    ± 8KV (Differential), Class A
  • ESD Protection    ± 8KV (Contact), ± 15KV (Air), Class A
  • Operating Temperature    -20~+55℃
  • Operating Humidity    10% - 90% (Non-condensing)
  • Storage Temperature    -40 to +70 °C
  • Power    150W Max

FEATURES

Designed for off grid caravans, motorhomes, homes, vehicles and remote sites

Enables a Starlink Gen2 Actuated dish to be powered from 9-36V DC

Plug and play installation

Compact in size

150W power output

10/100/1000 LAN Port for connecting to router or computer

Starlink SPX Port for connecting to dish

Australian RCM Approved
