BLUETTI SolarX 4K 4,000W Solar Charge Controller

In Stock - Typically ships in 2-5 business days.
Need it fast? Contact us to confirm lead times.
Pickup currently unavailable.

DETAILS

Overview

Rooftop-size solar for your BLUETTI system

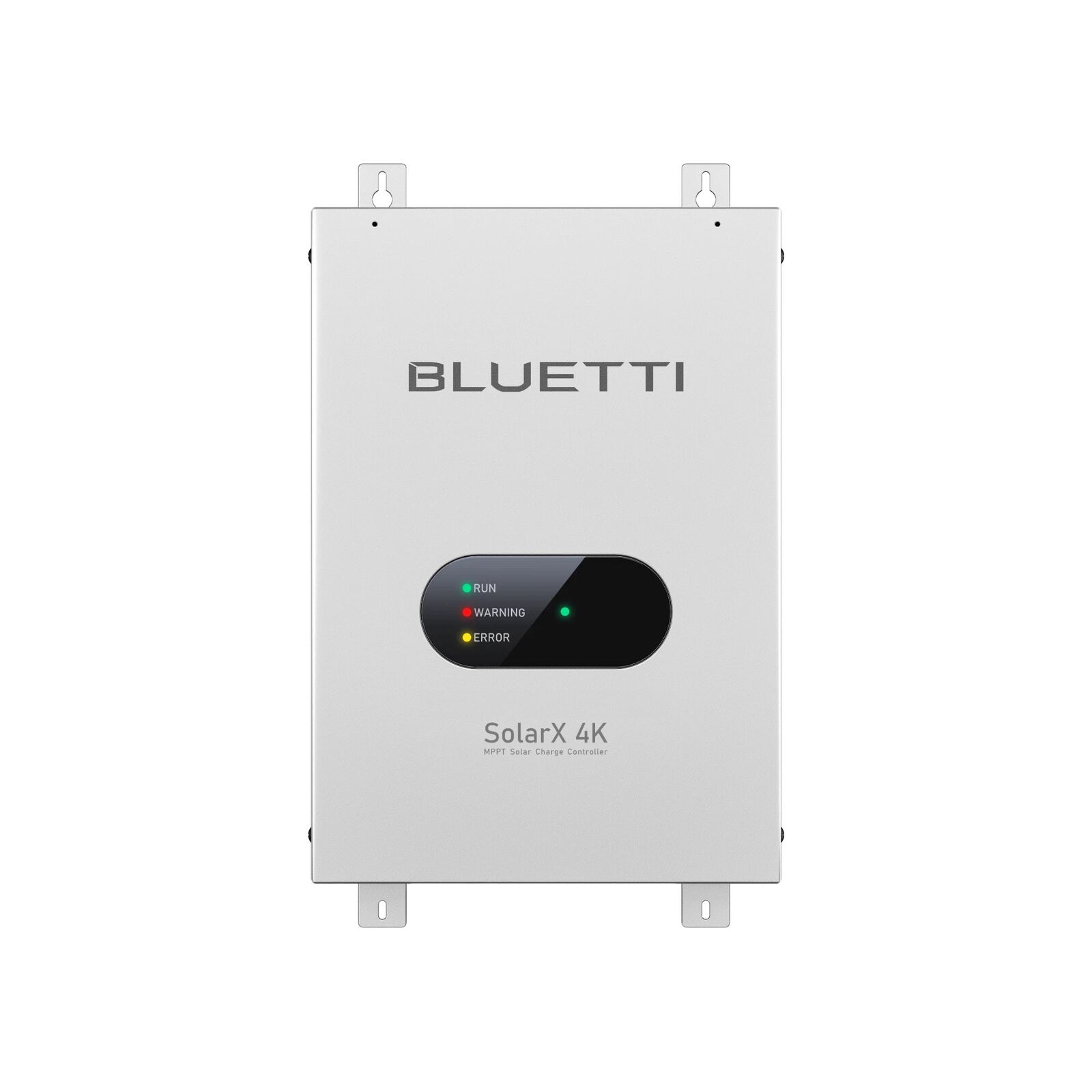

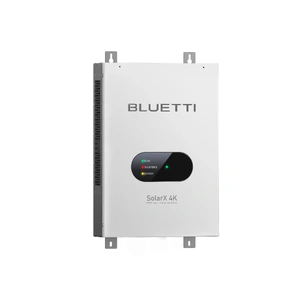

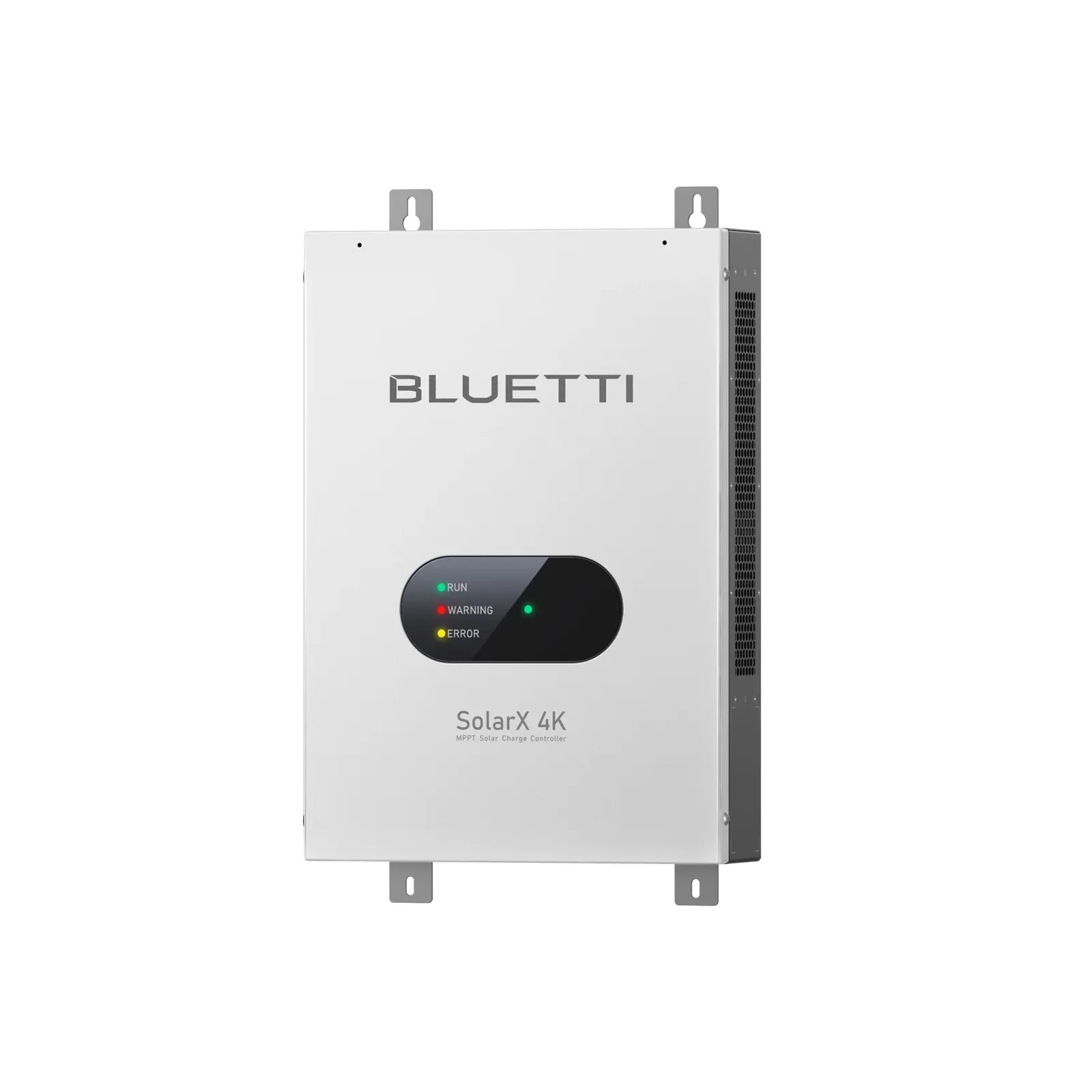

The SolarX 4K is a wall-mounted MPPT solar charge controller. It takes a high-voltage solar array (150-500V) and steps it down to a safe 35-58V to charge a BLUETTI system at up to 4,000W. That suits a rooftop or ground-mount array at an off-grid cabin, a shed or a home backup setup.

Connected through the battery port with the P090D cable, it leaves the power station’s own solar inputs free for more panels. With an Apex 300 and B300K, BLUETTI quotes up to 6,400W of combined solar: 4,000W through the SolarX 4K plus 2,400W into the Apex 300. You can run up to three SolarX 4K units in larger systems, and monitor everything in the BLUETTI app.

Works with: BLUETTI lists the Apex 300, AC300 and AC500 (with an expansion battery), and the B300K, B300, B300S, B4810, B1210 and B1232 battery packs. It does not support other brands or lead-acid batteries.

4,000W

Charging output

150-500V

Solar input

99%

Max MPPT efficiency

7.6kg

Net weight

IP21

Indoor rated

Why buy BLUETTI from us

Your local BLUETTI specialists

Buy your BLUETTI gear from a local team that knows what fits what.

✓A real shop in Sydney

We’re a bricks and mortar store, not a faceless online warehouse. You can visit us, or pick up your order from our Sydney shop.

✓Talk to a real person in Australia

Call or message our Sydney team (details on our contact page). You’ll speak to someone local who knows BLUETTI, not an overseas call centre.

✓Shipped Australia-wide

We send BLUETTI orders to every state and territory, from the city to the bush.

✓Checked to fit your unit

Tell us which BLUETTI you have and we’ll confirm this fits before it ships.

✓Local support after you buy

Questions about setting it up, charging or getting the most from your BLUETTI? Our team here in Australia is happy to help.

✓The whole setup in one place

We stock the BLUETTI power stations, panels, chargers, cables and mounting trays that work together, so you can get everything from one store.

Ask us a questionMake us your first stop for BLUETTI.

Compatibility

Which BLUETTI units it charges

✓Power stations: Apex 300, AC300 and AC500 (AC300/AC500 with an expansion battery)
✓Battery packs: B300K, B300, B300S, B4810, B1210, B1232
✓Mixed packs are supported, for example Apex 300 + B300/B300K/B300S
✓Not for other brands or lead-acid batteries

The AC300 needs ARM firmware in the 4032 series and the AC500 needs the 4044 series. Use the correct connection cable for each unit. contact our team and we’ll help you check.

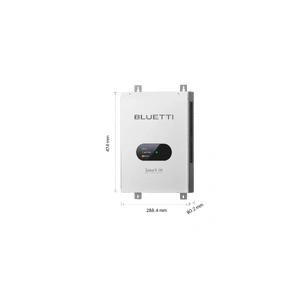

BLUETTI SolarX 4K solar charge controller with dimensions 474 x 288.4 x 90.2 mm

Scale it up

BLUETTI SolarX 4K for off-grid cabins, emergency backup and DIY solar farms

From 4kW to 12kW of solar

Start with one SolarX 4K on an Apex 300 and B300K. For bigger loads, BLUETTI shows two Apex 300s with two SolarX 4Ks, and three of each for a 12kW system.

BLUETTI rates the charge to full at about 1.9 hours with 4,000W of solar (BLUETTI lab figure; real-world times vary).

Before you install

Plan the array and the wiring

✓Total array open-circuit voltage must stay at or below 500V. Charging starts at 150V
✓One MPPT input: don’t mix different panel types
✓Fit a DC PV isolator rated at least 600V and 20A, with 4-5 mm² MC4 leads
✓Grounding is required (three earth terminals)
✓Wear insulated gloves. If you’re not confident with electrical work, use a licensed electrician

BLUETTI SolarX 4K with Apex 300 and B300K

Frequently asked questions

Which BLUETTI models does the SolarX 4K work with?

BLUETTI lists the Apex 300 and the AC300 and AC500 (with an expansion battery), plus the B300K, B300, B300S, B4810, B1210 and B1232 battery packs. Other brands and lead-acid batteries are not supported.

What solar array do I need?

A string between 150V (start-up) and 500V open circuit. The MPPT range is 120-450V, rated input current is 13A (17A max) and max input power is 4,200W. Don’t mix panel types, because there is only one MPPT input.

How much charging power does it give an Apex 300?

Up to 4,000W with the short CA90 cable, or about 3,000-3,500W with the long P090D/P090A cable. Panels on the Apex 300’s own DC input can add another 2,400W, for about 6,400W combined.

Can I install it myself?

BLUETTI says you can if you have basic electrical knowledge, but it must be grounded and needs a PV isolator. If you’re unsure, have a professional install it.

What happens when the battery is full?

The BLUETTI unit asks the SolarX 4K for 0A, so charging stops by itself.

Can it go outside?

It’s rated IP21, so mount it indoors or somewhere sheltered, like a garage or shed wall.

Still got a question? Our Sydney team is happy to help. Get in touch and you’ll talk to a real person in Australia.

Features

✓Up to 4,000W charging output (35-58V, 80A max)
✓150-500V high-voltage solar input, 4,200W max
✓MPPT 120-450V, up to 99% efficient
✓Charges through the battery port (P090D) or XT60 lead, depending on version
✓Works with Apex 300, AC300, AC500, B300K, B300, B300S, B4810, B1210, B1232

✓Scale up to three units for about 12kW of solar
✓BLUETTI app monitoring and firmware updates (Bluetooth, Wi-Fi)
✓Arc fault (AFCI) terminal and three grounding terminals
✓Wall-mounted, 288.4 x 474.0 x 90.2 mm, 7.6kg
✓Air cooled, 52 dB, IP21 for indoor or sheltered mounting

Make it a complete setup

Pairs well with

BLUETTI Apex 300 Versatile Power Station | 3,840W 2,764.8Wh

The main power station the SolarX 4K is built around: 4,000W solar into an Apex 300 system.

View product

Bluetti B300K Expansion Battery 2,764.8Wh for Apex 300

B300K battery: add capacity and connect the SolarX 4K through it.

View product

Specifications

Solar input

Max input power	4,200W
Max open-circuit voltage	500V DC
Start-up voltage	150V DC
MPPT operating voltage	120-450V DC
Number of MPPT	1
Rated input current	13A
Max input current	17A
MPPT efficiency	99% max

Output

Output power	4,000W
Output voltage	35-58V
Max output current	80A

General

Communication	RJ45, CAN 2.0, Bluetooth, Wi-Fi
Overtemperature protection	55°C
Operating temperature	-20°C to 55°C
Operating altitude	Up to 2,000 m
Noise	52 dB
Cooling	Air cooling
Net weight	7.6kg
Protection grade	IP21
Dimensions (L x W x H)	288.4 x 474.0 x 90.2 mm
Warranty	2 years

Compatibility

Power stations	Apex 300; AC300 / AC500 with expansion battery
Battery packs	B300K, B300, B300S, B4810, B1210, B1232

What's Included

✓SolarX 4K solar charge controller
✓DC output cable: P090D plug or 3-way XT60, depending on the version
✓Hex socket wrench
✓Fixing screws (ST4.8)
✓Grounding screw (M5)
✓Wall anchors
✓Knockout connector
✓OT terminal
✓Documents

Contents as listed by BLUETTI Australia for the SolarX 4K. Quantities aren’t published. contact our team to confirm which output cable version we stock.

Product Details

SKU	A-CG-SOLARX-US-0355
Brand	Bluetti
Compatible models	Apex 300, AC300, AC500, B300K, B300, B300S, B4810, B1210, B1232
Output power	4,000W
Solar input voltage	150-500V DC
