Overview

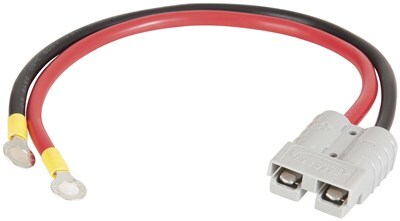

Anderson plug to M8 ring terminals

The quick way to add an Anderson outlet to a battery. Bolt the M8 ring terminals onto your battery posts or bus bar and you have a ready-made Anderson plug for chargers, fridges, solar panels and accessories. Heavy 8 B&S cable carries up to 50A.

M8
Ring terminals
8 B&S
Heavy cable
50A
Rating
36 cm
Lead length

Take a closer look

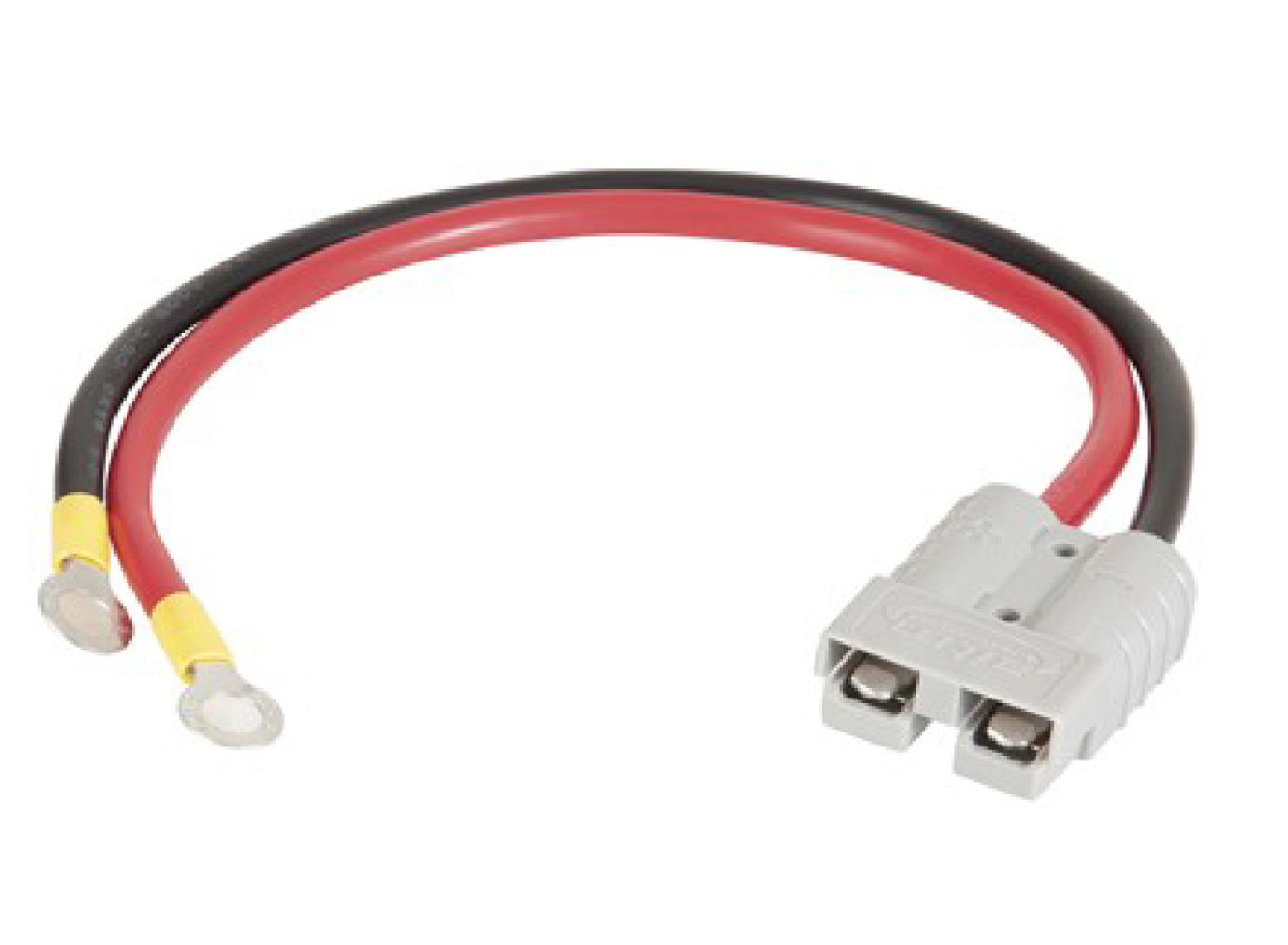

Anderson Plug to M8 Ring Terminals Adapter Lead 8 AWG / 8 B&S
Anderson Plug to M8 Ring Terminals Adapter Lead 8 AWG / 8 B&S

This lead has no fuse. For most battery installs, fit a fuse close to the battery, or choose our TVDA24 lead with a 50A fuse built in.

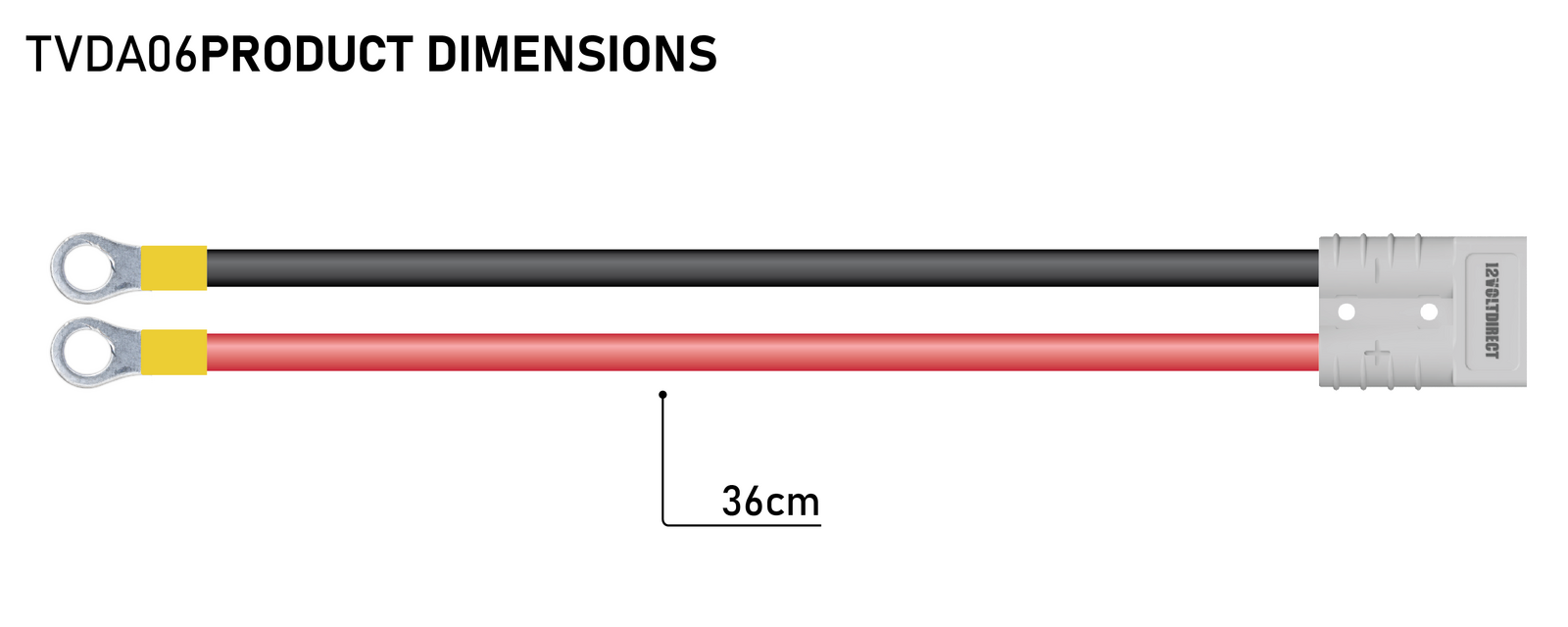

Dimensions

Anderson Plug to M8 Ring Terminals Adapter Lead 8 AWG / 8 B&S dimensions

Can’t see the lead you need?

12 Volt Direct makes a full range of 12V connection leads: Anderson to cigarette, fridge leads, extensions, splitters, fuse leads, and solar and power station adapters. If this lead doesn’t do quite what you need, there’s a good chance we have one that does. Browse the range, or send our team a text and we’ll find the right one.

Why buy from us

  • ✓Australian business with a Sydney store, shipping Australia-wide
  • ✓Talk to a real person here in Australia, not an overseas call centre
  • ✓3-year warranty and 30-day returns
Anderson Plug to M8 Ring Terminals Adapter Lead 8 AWG / 8 B&S

Features

  • ✓M8 ring terminals for battery posts or bus bars
  • ✓Heavy 8 B&S (8 AWG) red and black cable
  • ✓Rated to 50A continuous
  • ✓SB50 Anderson-style plug (grey)
  • ✓Machine-crimped terminals

Specifications

Battery end2 x M8 ring terminals (red +, black -)
Power endSB50 Anderson-style plug, grey
Cable8 B&S (8 AWG), red and black
Rating50A continuous
Length36 cm
FuseNone (see TVDA24 for a fused version)
Warranty3 years

What's Included

  • 1 x Anderson to M8 ring terminal lead

Product Details

SKU TVDA06
Barcode # 744109315237
Brand 12 Volt Direct
Shipping Weight 0.1000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.000500000m3
