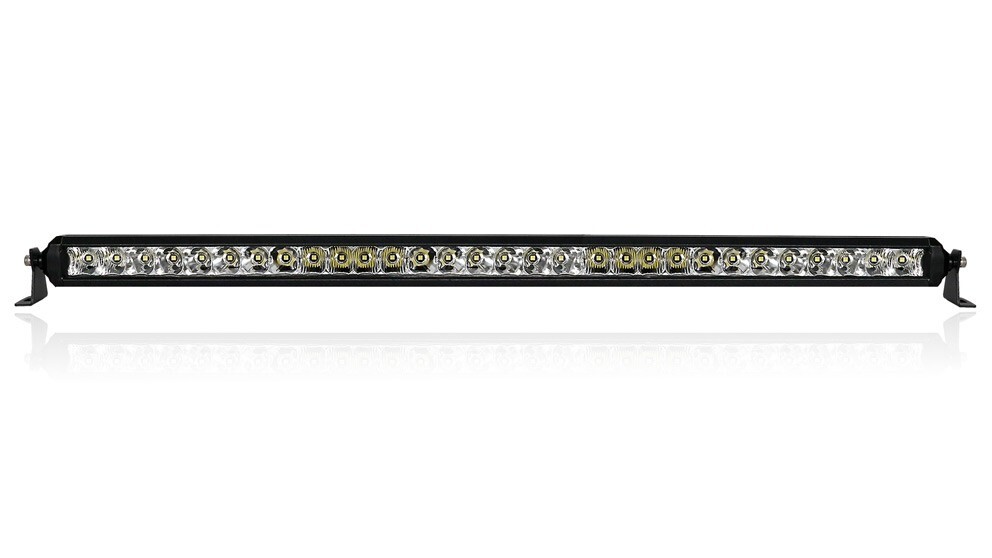

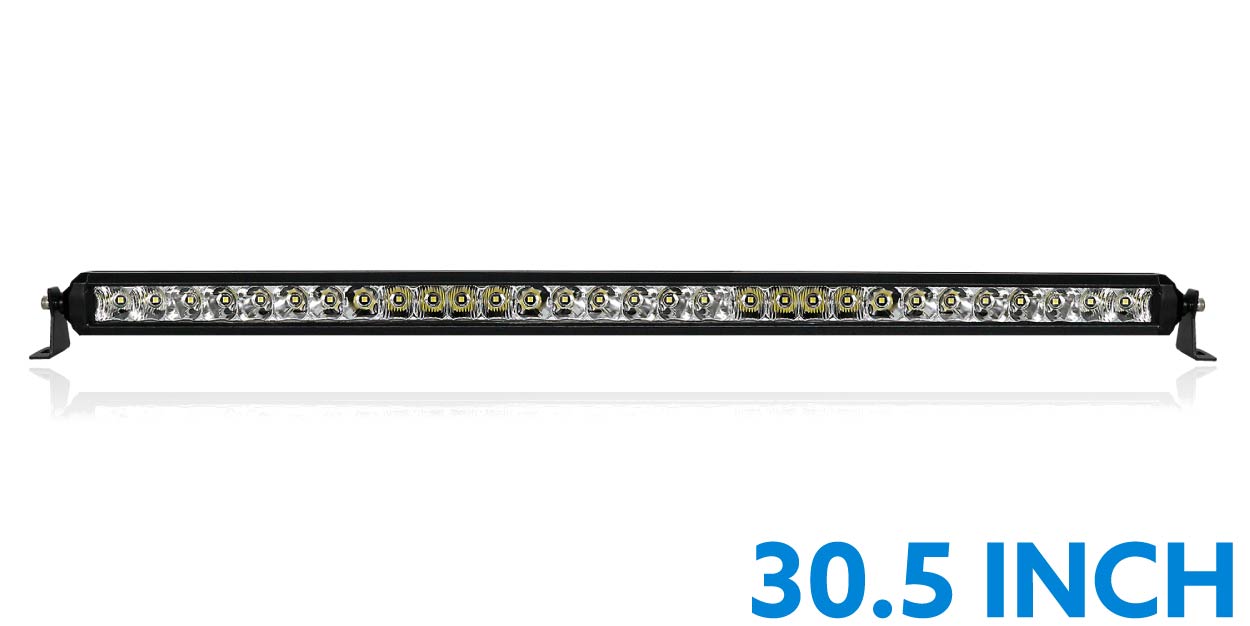

SRX SERIES 30.5" LED SINGLE ROW LIGHT BAR

DETAILS

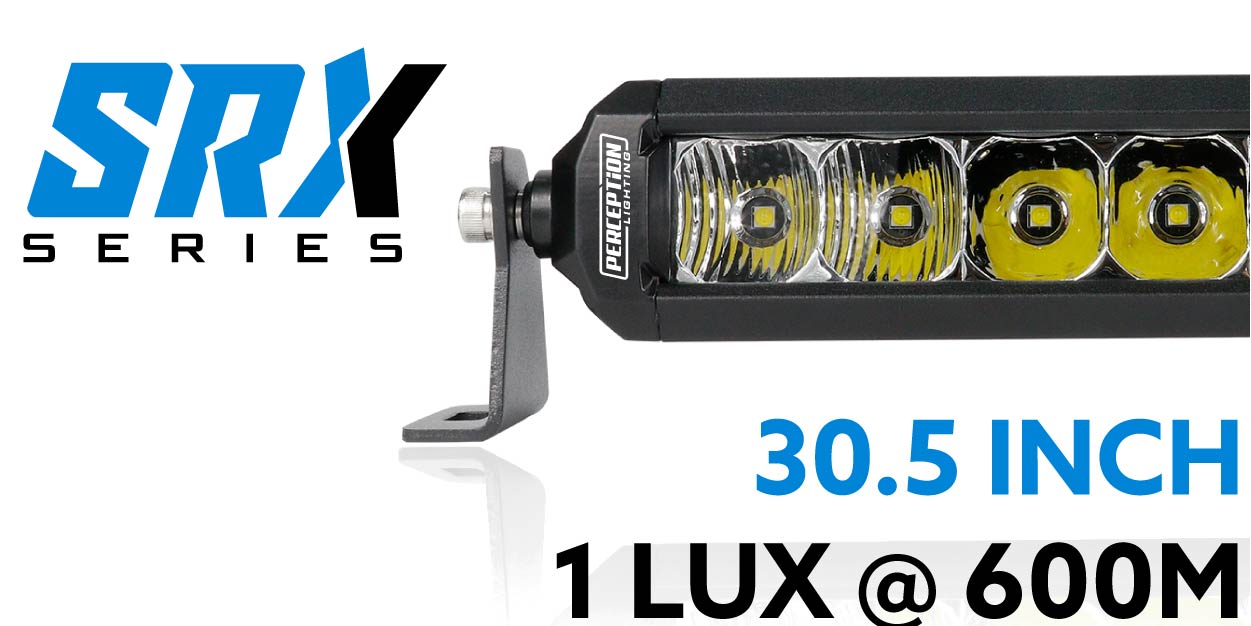

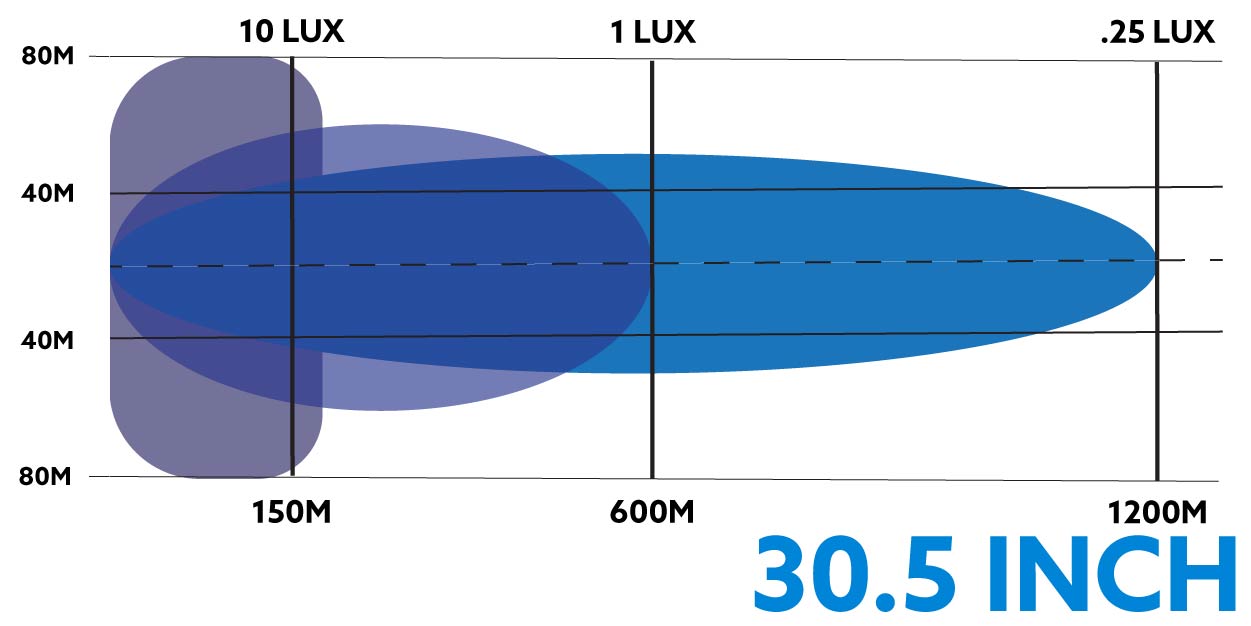

Our all new SRX SERIES 30.5" Inch is the result of our proven experience in delivering high performance LED lighting. Fitted with 30 of OSRAM’s® finest DURIS® LEDs and a combination reflector the SRX series produces a remarkable beam that pushes the flood beam out at 50° and spot beam at 5° all the way to whopping 1 lux @ 600m

The SRX range feature our all new TruOptics beam pattern to focus the light where you need it most, resulting in a +65% increase in lux performance in comparison to the outgoing 10 Series LED bars.

INSTANT PERFORMANCE

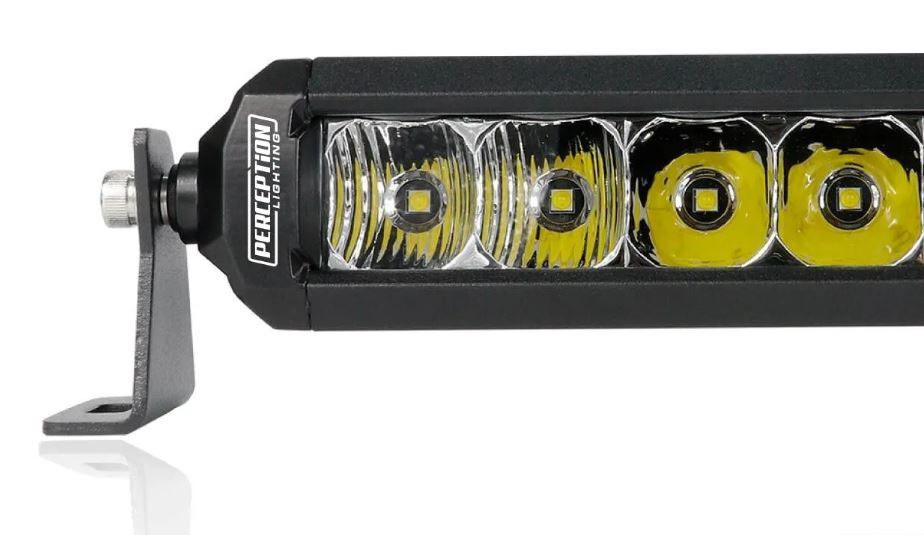

The SRX-30 features 30 of OSRAM’s® finest DURIS® LEDs, selected for its high output and matched optical geometry

The combination spot and flood reflector forms an astonishing beam that throwing beam wideout at 50° and spot beam punching all the way down to whopping 1 lux @ 600m

Pure White 5700K Colour temperature offers stunning clarity and definition and optimal Colour Rendering Index (CRI).

New circuit design allows 97% of input power to go directly to LEDs.

INSTANT PERFORMANCE

The SRX-30 features 30 of OSRAM’s® finest DURIS® LEDs, selected for its high output and matched optical geometry

The combination spot and flood reflector forms an astonishing beam that throwing beam wideout at 50° and spot beam punching all the way down to whopping 1 lux @ 600m

Pure White 5700K Colour temperature offers stunning clarity and definition and optimal Colour Rendering Index (CRI).

New circuit design allows 97% of input power to go directly to LEDs.

BUILT RUGGED

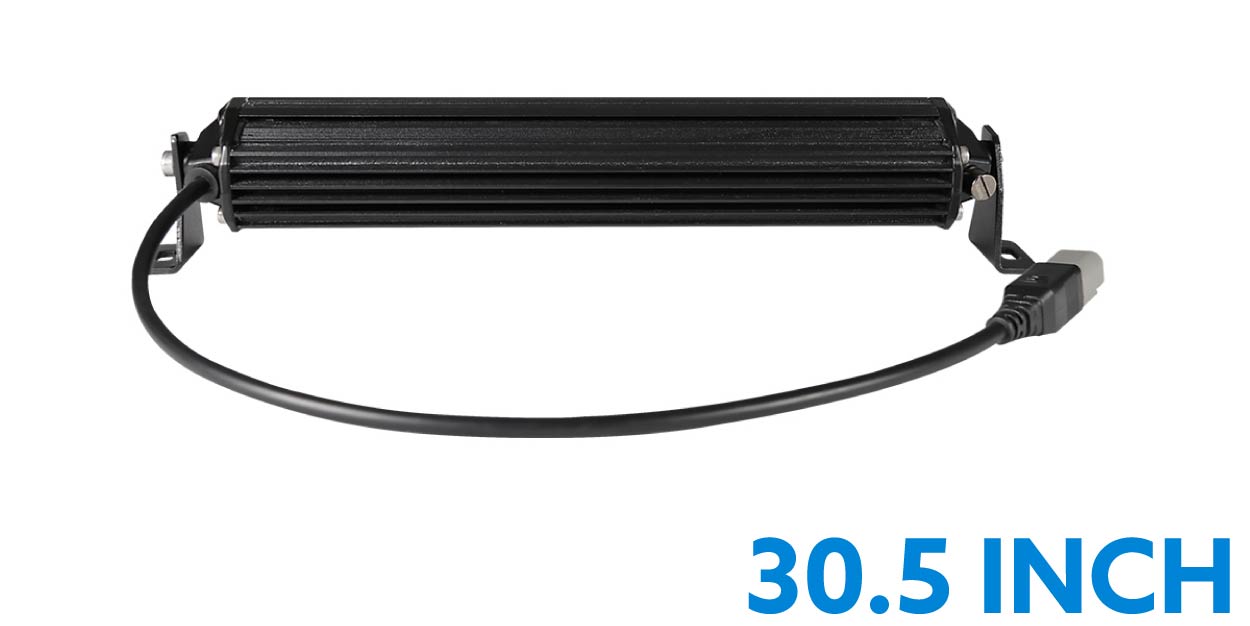

Diecast aluminum faceplate, extruded Aluminum heat sink
Dupont Powdercoat is UV and abrasion-resistant to ensure that our bars will never discolor.
Gore® Military breather protects against water & dust ingress
LEXAN Lens is unbreakable and optically clear
IP69K - Dust + high-pressure water-proof. No hassle car washing!

VERSATILE MOUNTING

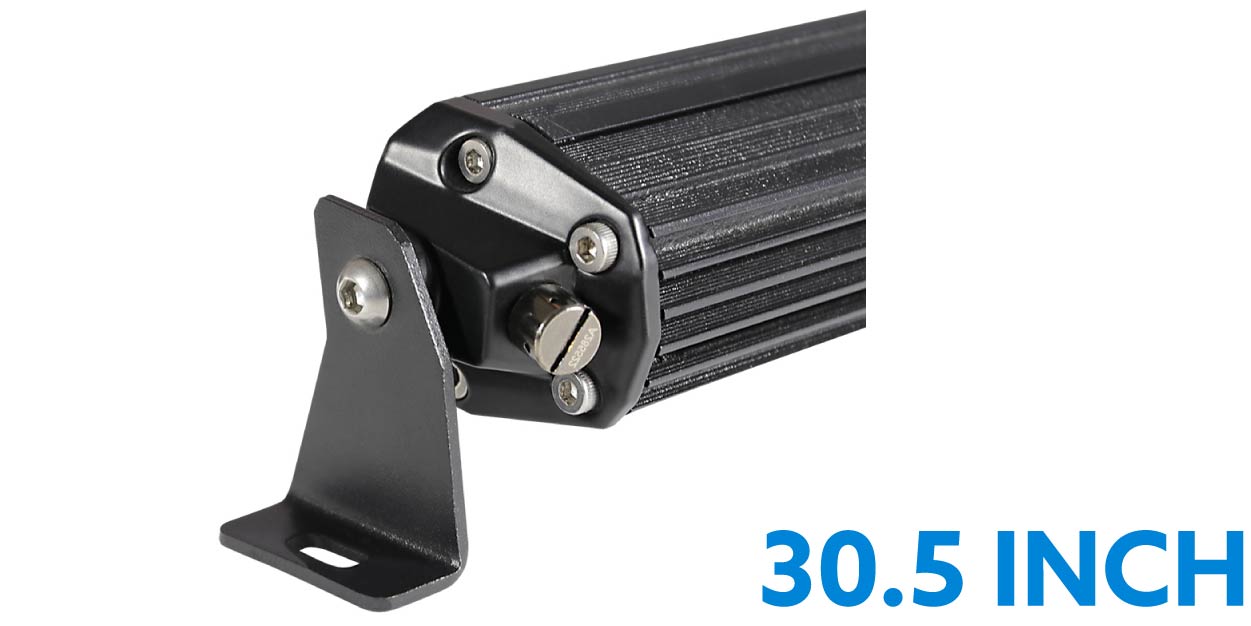

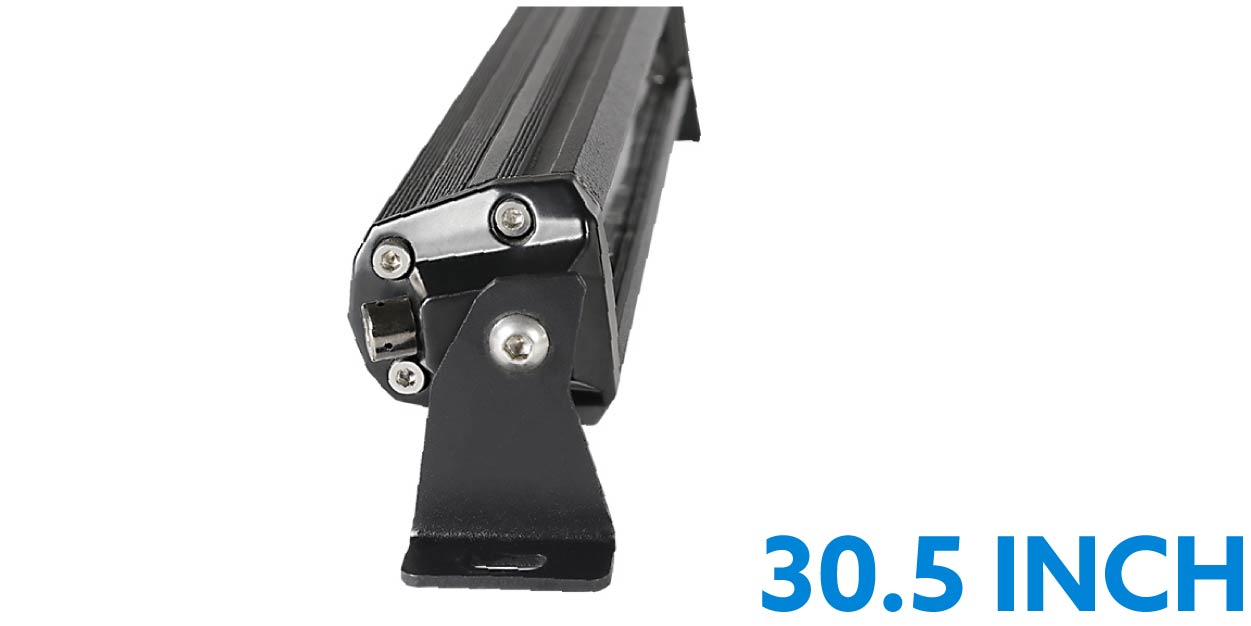

End mounts allow for 360 degrees of rotation.

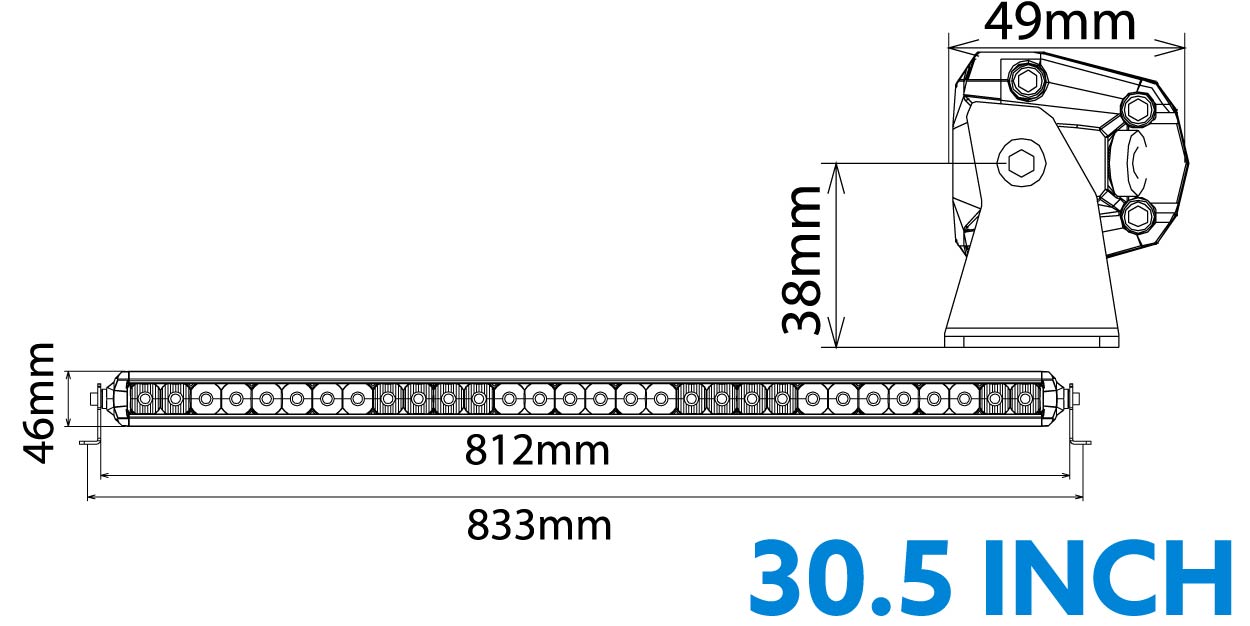

Slim profile allows fitment in low clearance applications.

VERSATILE MOUNTING

End mounts allow for 360 degrees of rotation.
Slim profile allows fitment in low clearance applications.

CONTENTS

1 X 30.5” SRX Series Lightbar
2 x Side mount legs
1 x Male & female Deutsch connectors

OSRAM LED TECHNOLOGY

Perception SRX series lightbars utilize a 5-watt OSRAM Duris P8 LEDs. The result is amazing distance and flood performance. These high output
5 watt LEDs are not to be confused with competitors' inferior 3-watt counterparts.

OSRAM LED TECHNOLOGY

THE PERCEPTION LIGHTING® GUARANTEE

All Perception Lighting products are manufactured using the highest quality materials. We are so confident that we stand behind this product with a comprehensive 5 Year Australian Warranty.

SPECIFICATIONS

LED Power		50W (10 x 5W)
LED Manufacturer		Genuine OSRAM®
LUX		1 LUX @ 600m
Beam Distance		0.25 LUX @ 1200m
Beam Pattern		Combination (Spot & Flood)
Output		18240 Lumens
Housing Material		Diecast Aluminium
Lens Material		GE Lexan Polycarbonate
Mounting Bracket		Side
Operating Voltage		10-30V DC
Colour Temperature		5,700K
LED Lifespan		50,000 hours
Certification		CE, RoHS, C-Tick

SPECIFICATIONS

LED Power		50W (10 x 5W)
LED Manufacturer		Genuine OSRAM®
LUX		1 LUX @ 600m
Beam Distance		0.25 LUX @ 1200m
Beam Pattern		Combination (Spot & Flood)
Output		18240 Lumens
Housing Material		Diecast Aluminium
Lens Material		GE Lexan Polycarbonate
Mounting Bracket		Side
Operating Voltage		10-30V DC
Colour Temperature		5,700K
LED Lifespan		50,000 hours
Certification		CE, RoHS, C-Tick
