Overview

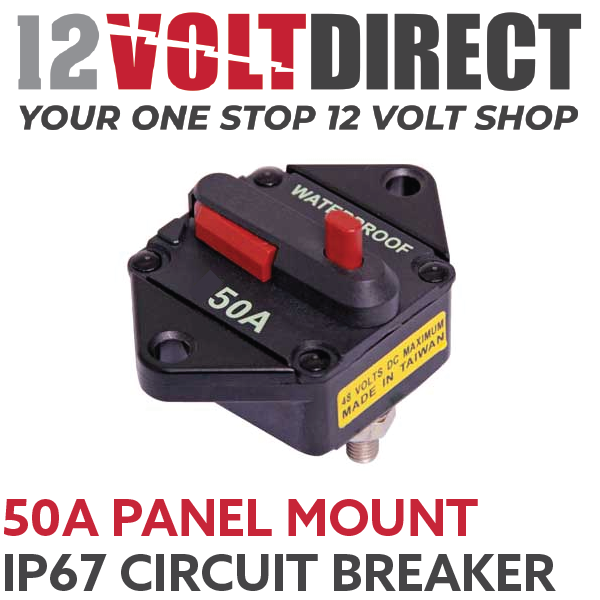

Panel Mount IP67 Circuit Breaker

This 50A high current panel mount circuit breaker is ideal for use in 12V or 24V DC power systems. It features a IP67 weatherproof casing with M6 terminal bolts for connection to power cabling. The breaker can be easily reset using the red lever switch. Typically used in auxiliary and accessory circuits in automotive and marine applications. Also suitable for battery charger designs. Tested to SAE J1625 & SAE J1171 (ignition protected).

Available in:

- 50A

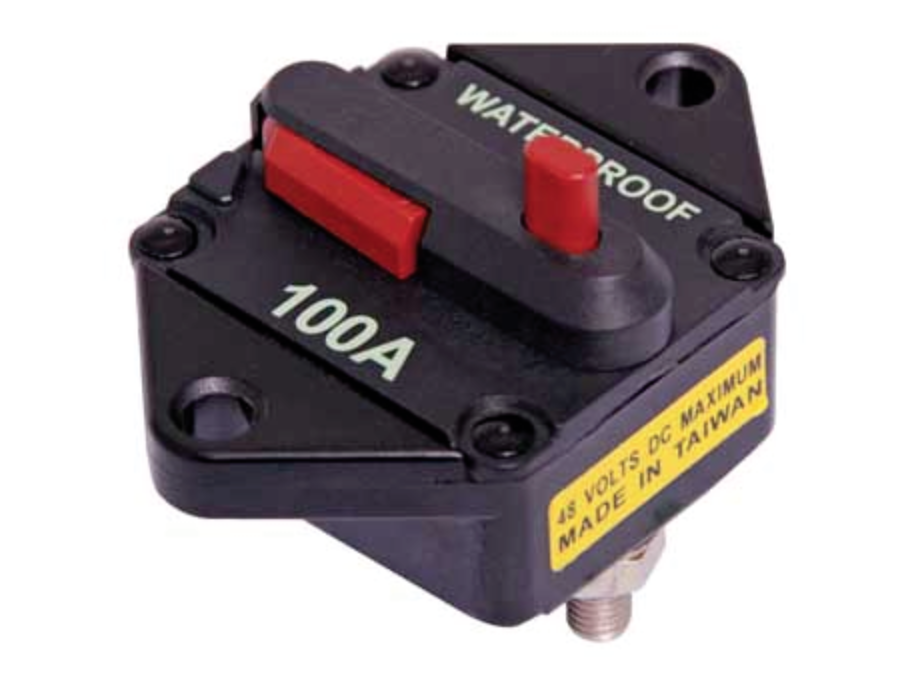

- 100A

- 150A

SPECIFICATIONS

Max. voltage: 42V DC
Interrupt rating: 3000A @ 30V DC
IP Rating: IP67
Operating temperature: -32°C to 92°C
Testing: SAE J1625, SAE1171 (ignition protected)
Material: UL94V-0
RoHS approved.

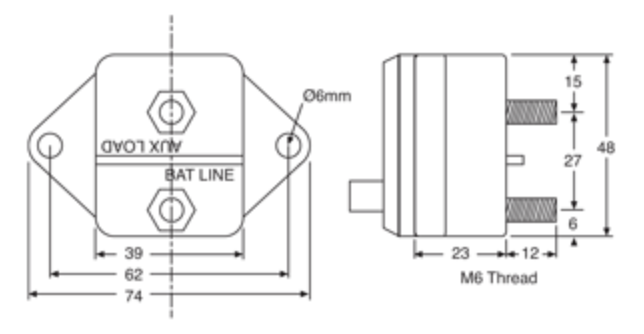

External dimensions: 70 x 50 x 35mm
*Specifications are subject to change without notice.

Features

Panel Mount IP67 Circuit Breaker Brand: 12 Volt Direct SKU: PANEL-CIRCUITBREAKER

Product Details

SKU PANEL-CIRCUITBREAKER
Brand 12 Volt Direct
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
