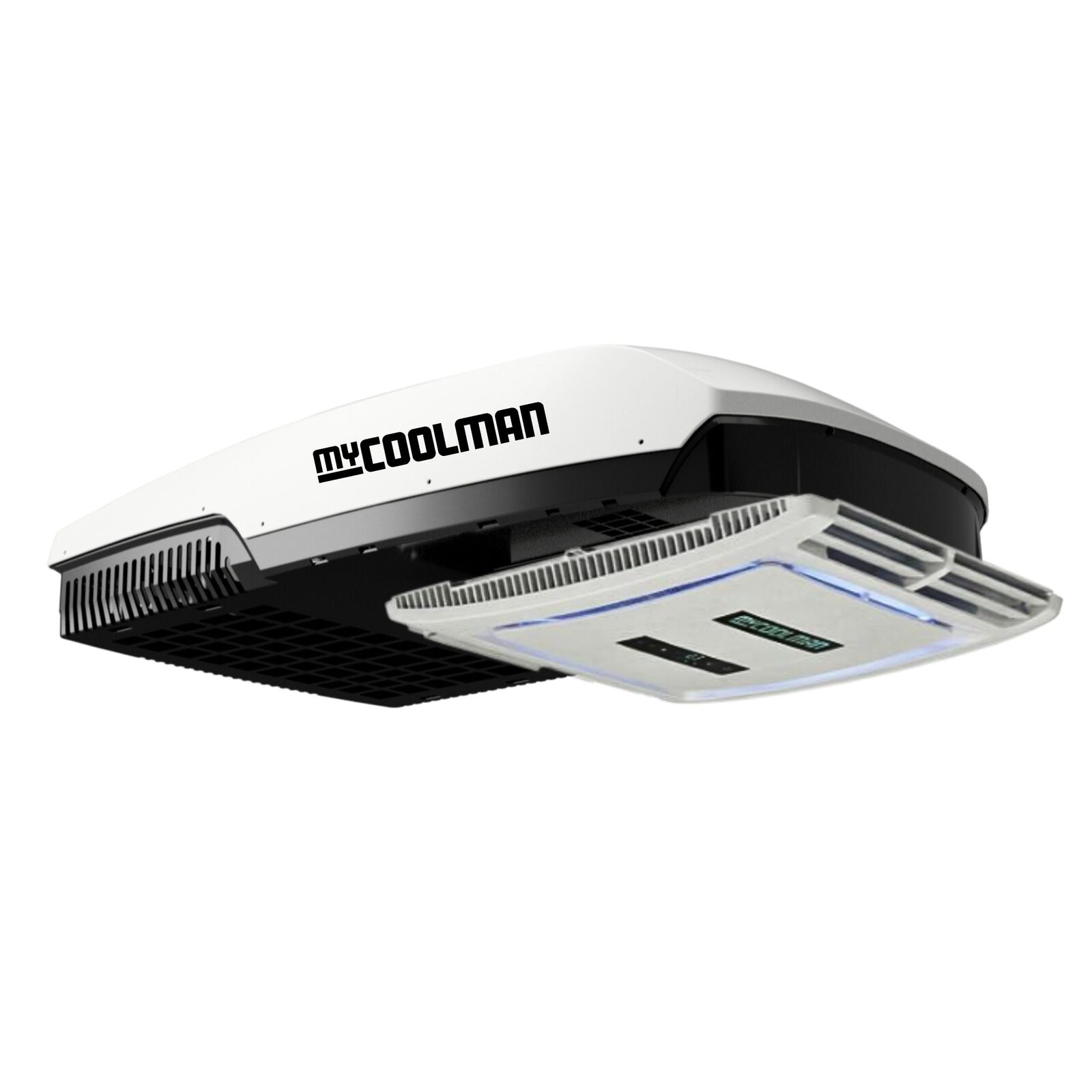

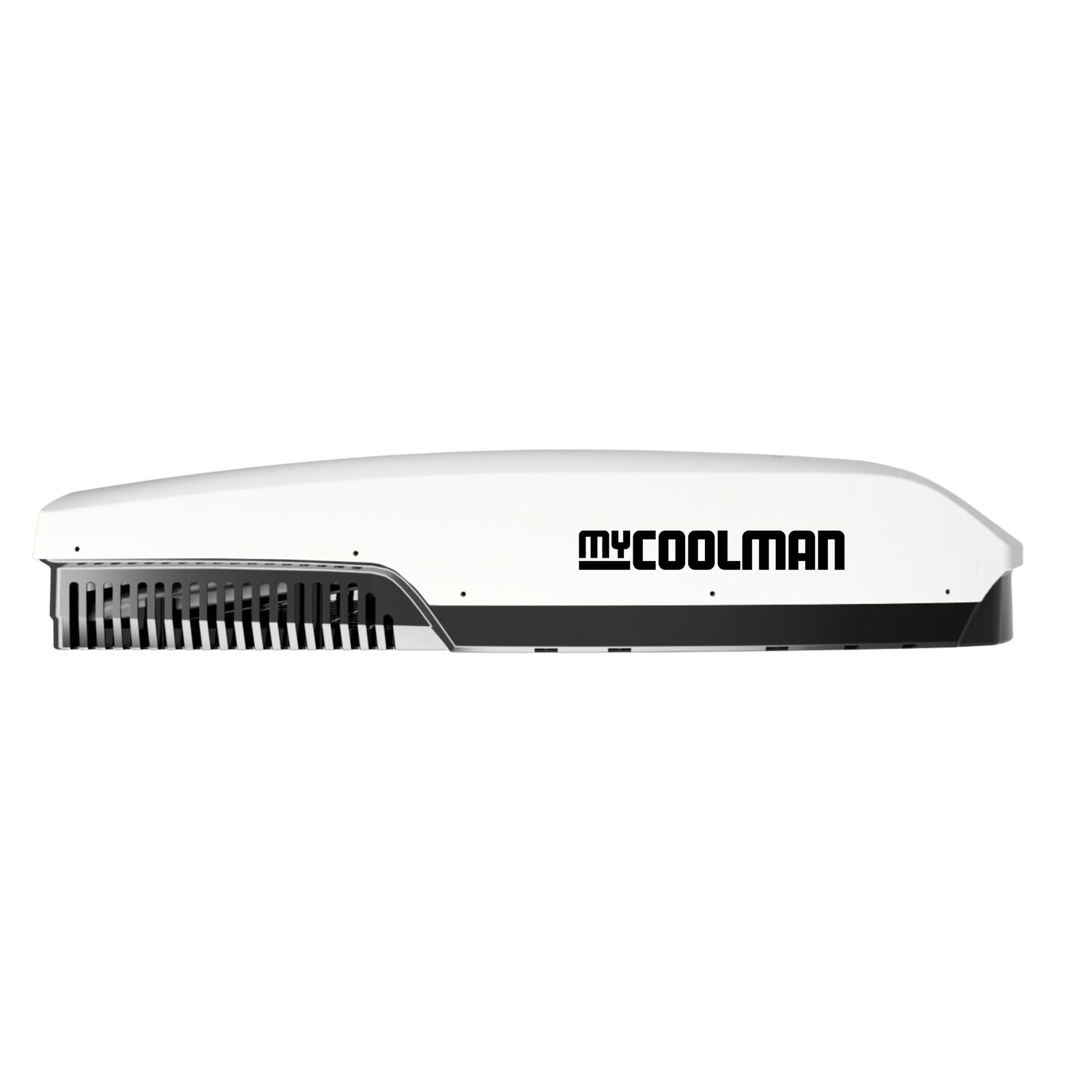

myCOOLMAN 3.5kW roof top air conditioner

Cool summers, warm winters

The myCOOLMAN 3.5kW is the most powerful unit in the myCOOLMAN roof top range. This reverse cycle inverter air conditioner cools at 3.5 kW and heats at 3.0 kW, and suits caravans and RVs up to 8.5 m long.

The anti-vibration inverter compressor starts softly and runs quietly, and you can control it from your phone over Bluetooth. The low profile roof unit stands just 225 mm high and the whole system weighs under 36 kg.

3.5 kW

Cooling

3.0 kW

Heating

8.5 m

Max van length

3 years

Warranty

Off grid ready

Run it from batteries or a generator

The inverter compressor ramps up and down to match the load instead of cycling hard on and off, which keeps power draw down. That makes it practical to run away from mains power.

✓On mains: 240 V AC from a powered site or home
✓Off grid: a quality 2000 W pure sine wave inverter running from a battery bank
✓Generator: a quality 2 kVA pure sine wave generator
✓Input power: 1200 W cooling / 1100 W heating

Planning an off grid setup? contact our team and we can help you size the inverter and batteries.

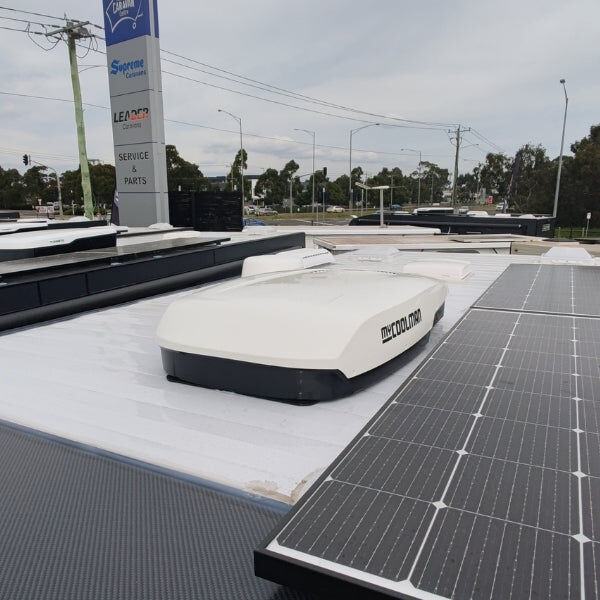

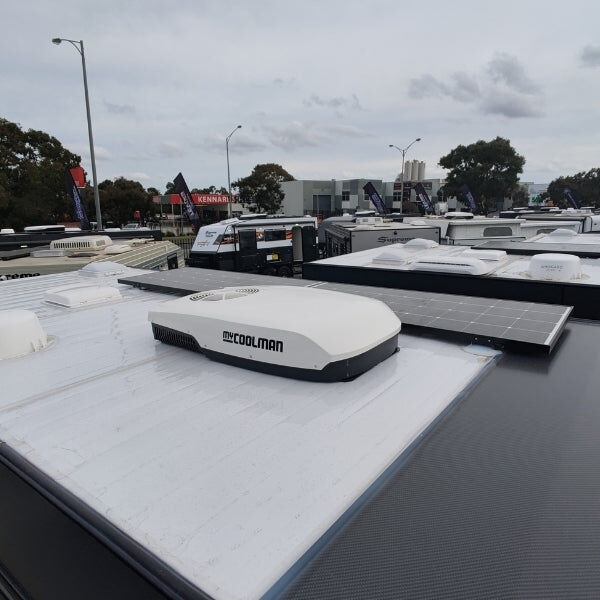

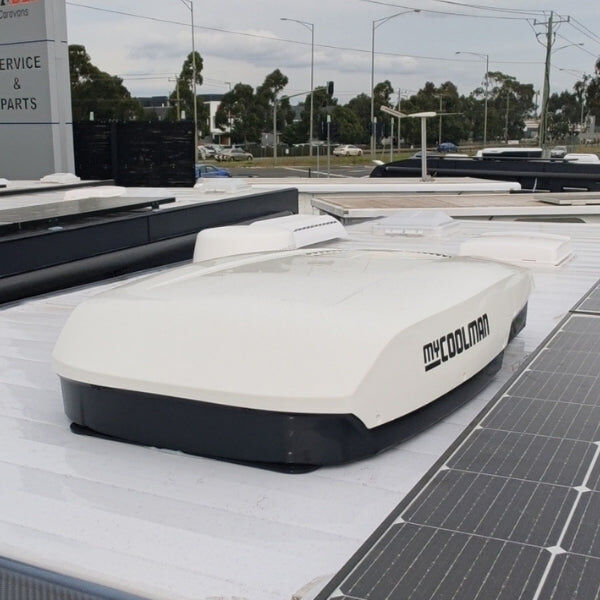

myCOOLMAN 3.5kW roof top air conditioner installed on a caravan roof beside solar panels

Off grid ready

Run it from batteries or a generator

The inverter compressor ramps up and down to match the load instead of cycling hard on and off, which keeps power draw down. That makes it practical to run away from mains power.

✓On mains: 240 V AC from a powered site or home
✓Off grid: a quality 2000 W pure sine wave inverter running from a battery bank
✓Generator: a quality 2 kVA pure sine wave generator
✓Input power: 1200 W cooling / 1100 W heating

Planning an off grid setup? contact our team and we can help you size the inverter and batteries.

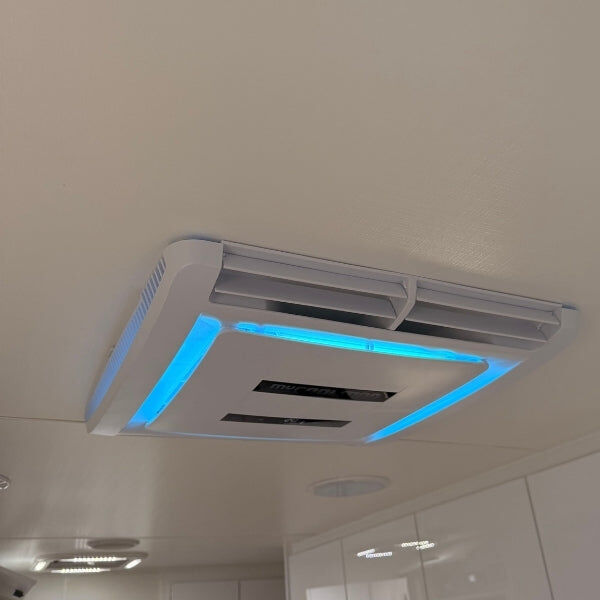

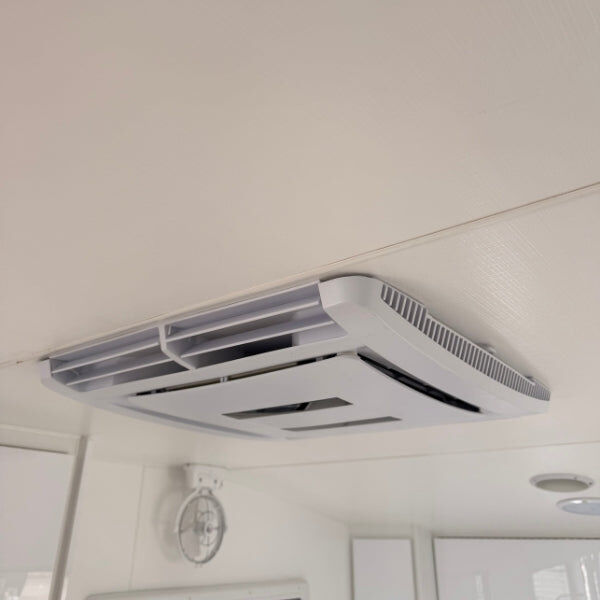

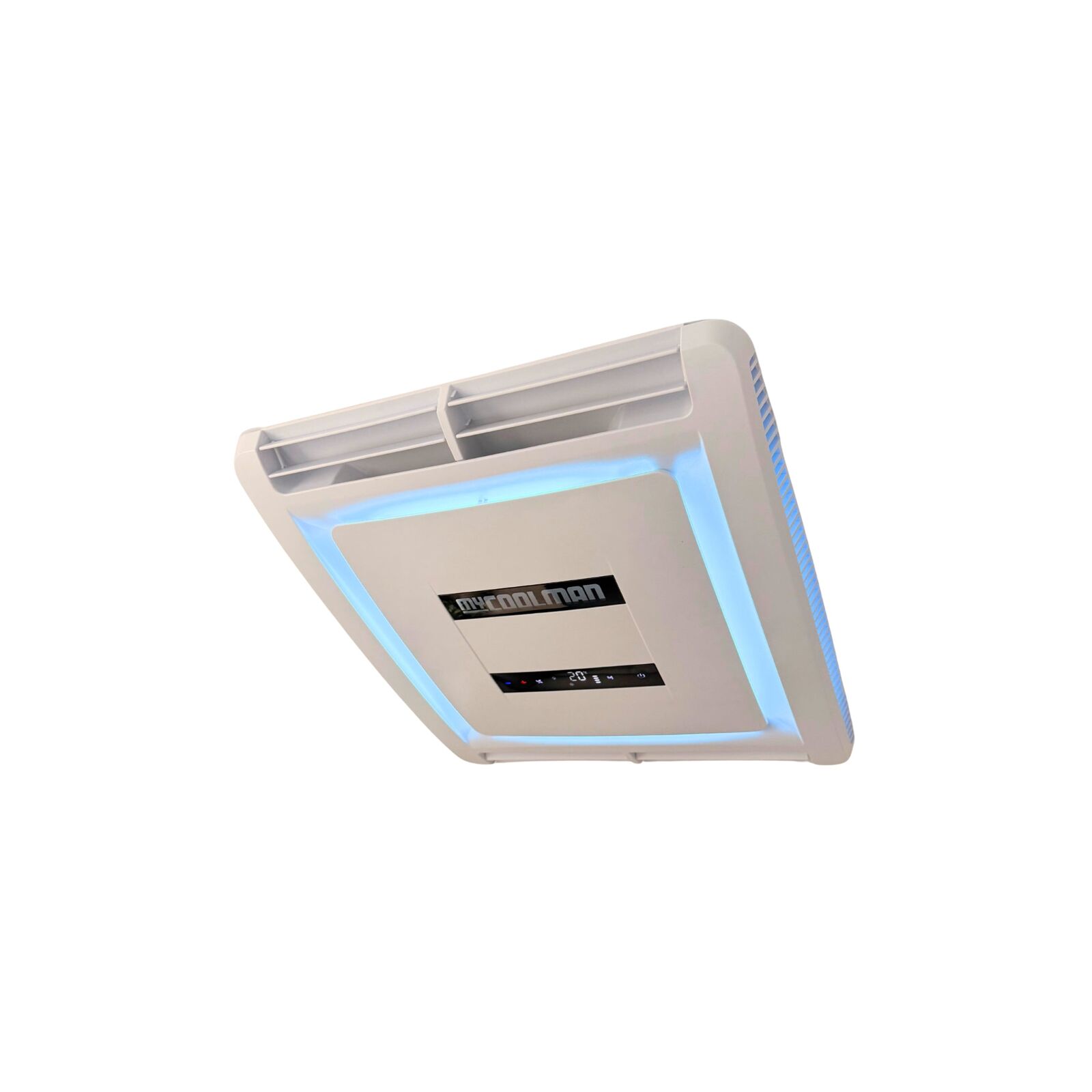

myCOOLMAN 3.5kW ceiling unit with LED lighting inside a caravan

Control and comfort

Set the temperature from your phone

✓Full Bluetooth control: check and change the settings from your phone
✓Slimline ceiling unit with multiple airflow angles, so you can point the air where you want it

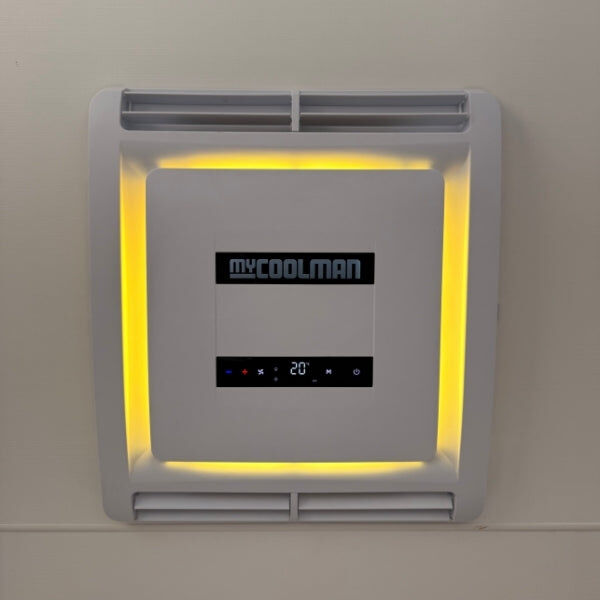

✓LED mood lighting built into the ceiling unit
✓Smooth soft start and quiet running, so it will not wake you at night

About the brand

myCOOLMAN

myCOOLMAN is an Australian brand, designed in Melbourne with real Australian trips and conditions in mind. The range covers portable and upright fridge freezers for the ute, campsite and caravan, through to roof top air conditioners, and every myCOOLMAN product is backed by a nationwide warranty.

Not sure which unit suits your van? contact our team and we will help you pick the right one.

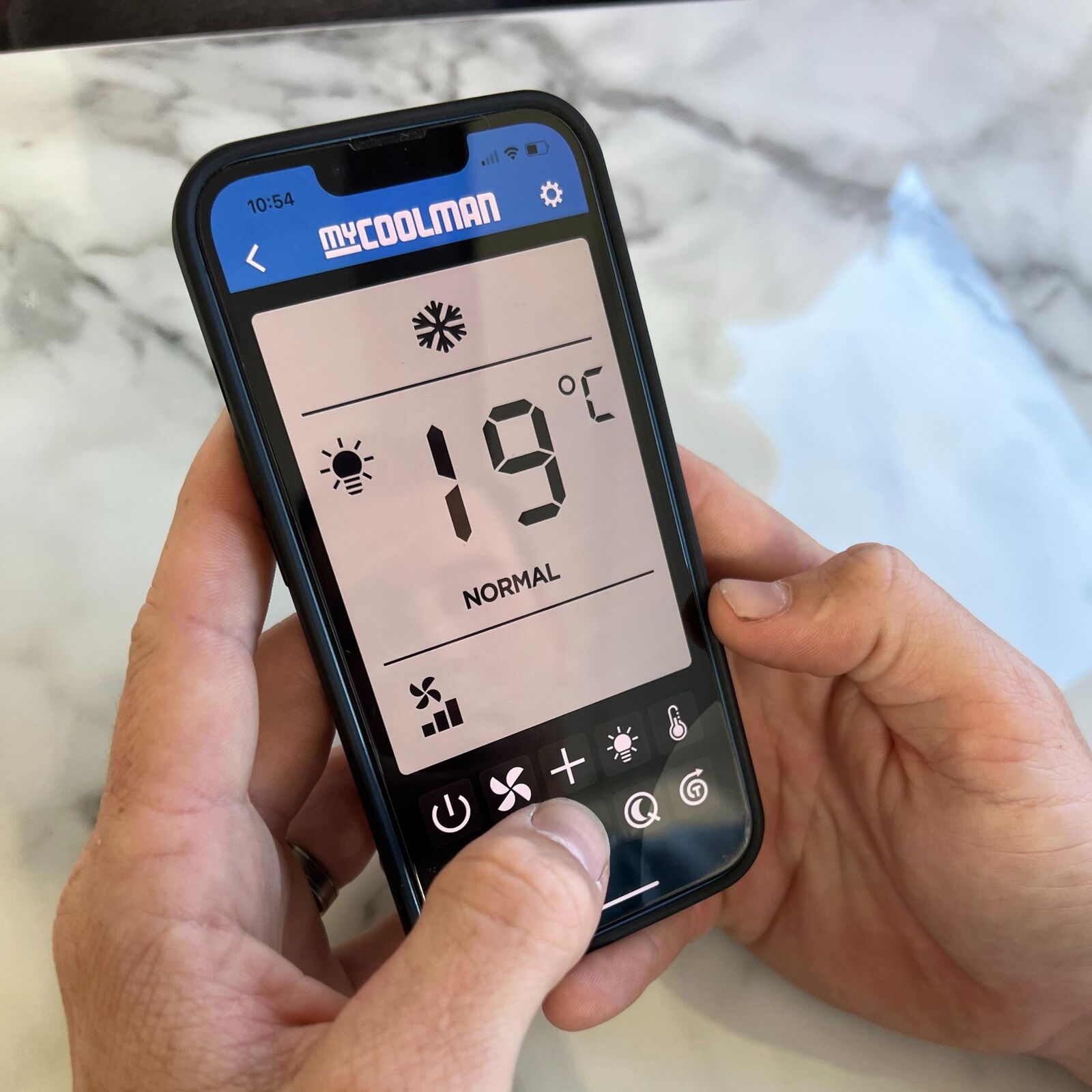

Controlling the myCOOLMAN air conditioner from the Bluetooth phone app

About the brand

myCOOLMAN

Not sure which unit suits your van? contact our team and we will help you pick the right one.

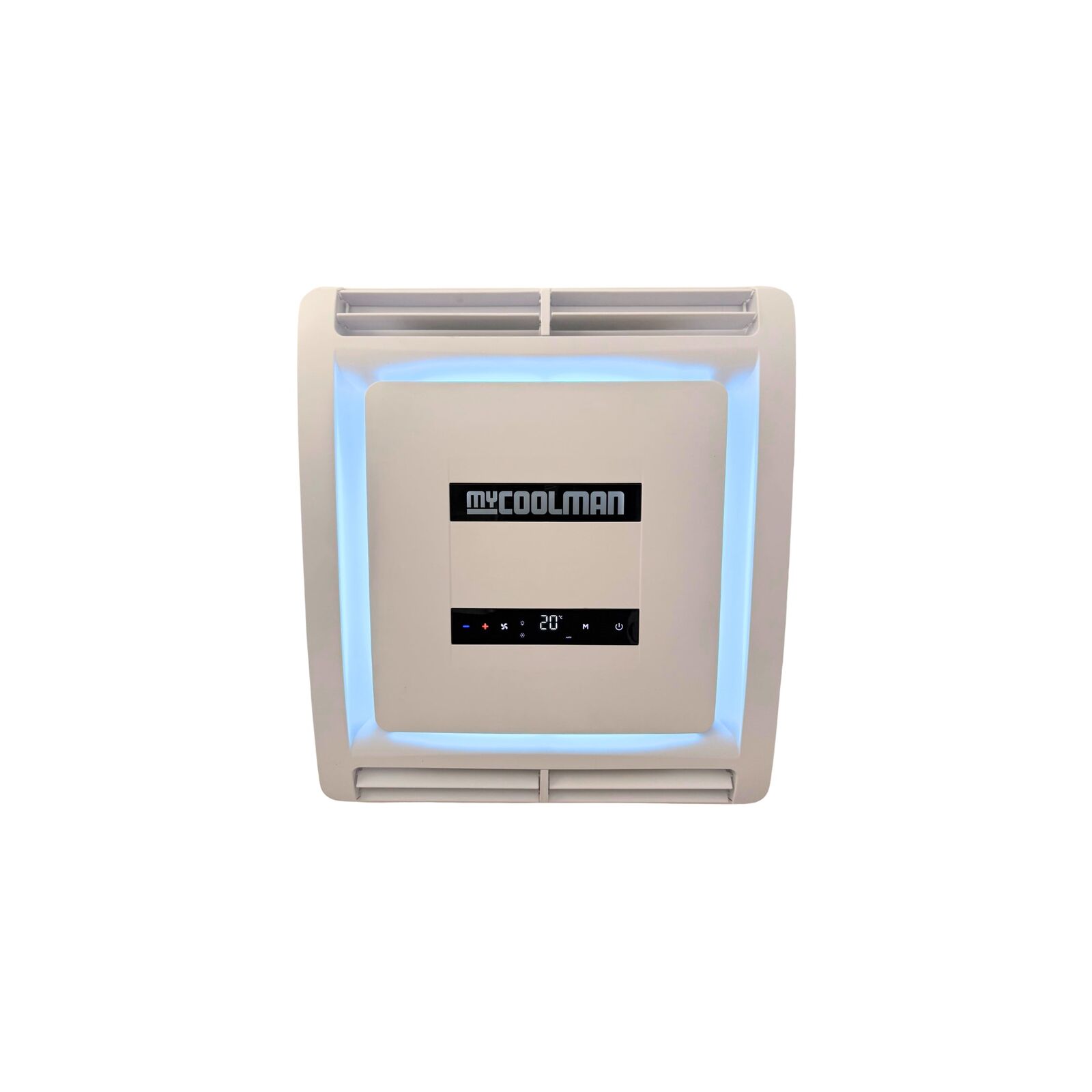

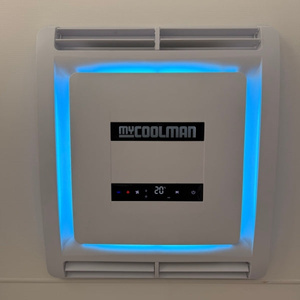

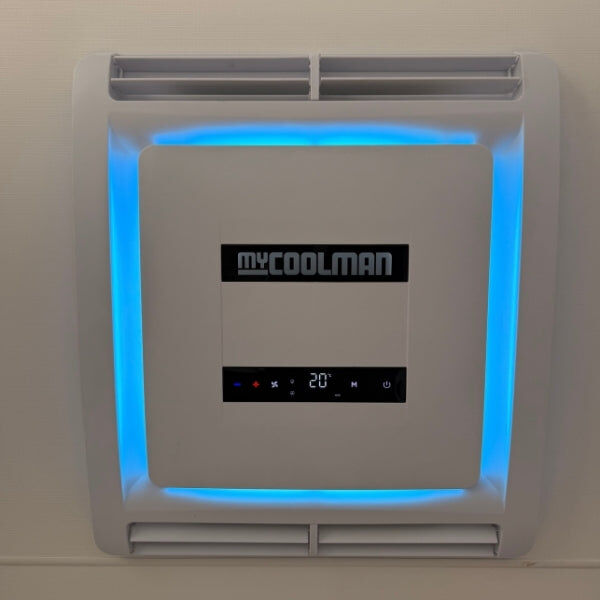

myCOOLMAN 3.5kW ceiling unit with blue LED mood lighting and temperature display

Installation: This air conditioner must be connected by a licensed electrician to Australian Standards AS/NZS 3000 and AS/NZS 3001. Installing it without the right qualified tradesperson voids the warranty and can be a safety risk.

Frequently asked questions

Will it fit my roof hatch?

It fits a standard 360 x 360 mm or 400 x 400 mm roof opening, and both sealing frames are included. It suits roof panels from 20 to 100 mm thick; extra spacers are needed for roofs 40 to 100 mm thick.

Which size do I need?

It suits caravans and RVs up to 8.5 m long. For smaller vans, the 2.7kW model may be enough. Contact our team if you are unsure.

Can I run it off grid?

Yes. It will run from a quality 2000 W pure sine wave inverter with a battery bank, or from a quality 2 kVA pure sine wave generator.

Do I need an electrician to install it?

Yes. It must be connected by a licensed electrician to AS/NZS 3000 and AS/NZS 3001, or the warranty is void.

What warranty does it have?

myCOOLMAN gives a 3 year warranty, provided it is installed by a licensed electrician.

FEATURES

✓3.5 kW cooling and 3.0 kW heating, reverse cycle
✓Inverter compressor with a smooth soft start and quiet running
✓Bluetooth app control from your phone
✓Slimline ceiling unit with adjustable airflow and LED mood lighting
✓Sleek, low profile aerodynamic roof unit

✓Suits caravans and RVs up to 8.5 m long
✓Fits a 360 x 360 mm or 400 x 400 mm roof opening, both sealing frames included
✓Roof thickness adaptors included (20 to 100 mm roofs)
✓Runs off grid from a quality 2000 W inverter and battery bank, or a 2 kVA pure sine wave generator
✓3 year warranty

WHAT'S INCLUDED?

What's in the box

✓Roof top unit
✓Ceiling unit (air distribution box)
✓360 x 360 mm and 400 x 400 mm sealing frames
✓Roof thickness adaptors

SPECIFICATIONS

myCOOLMAN 3.5kW roof top air conditioner specifications

Model	CCA3500i
Type	Reverse cycle, anti-vibration inverter compressor
Cooling capacity	3.5 kW (3500 W)
Heating capacity	3.0 kW (3000 W)
Input power	1200 W cooling / 1100 W heating
Power supply	240 V AC
Airflow	550 m³/h
Roof unit dimensions	L 1107 x W 718 x H 225 mm
Roof unit weight	31 kg

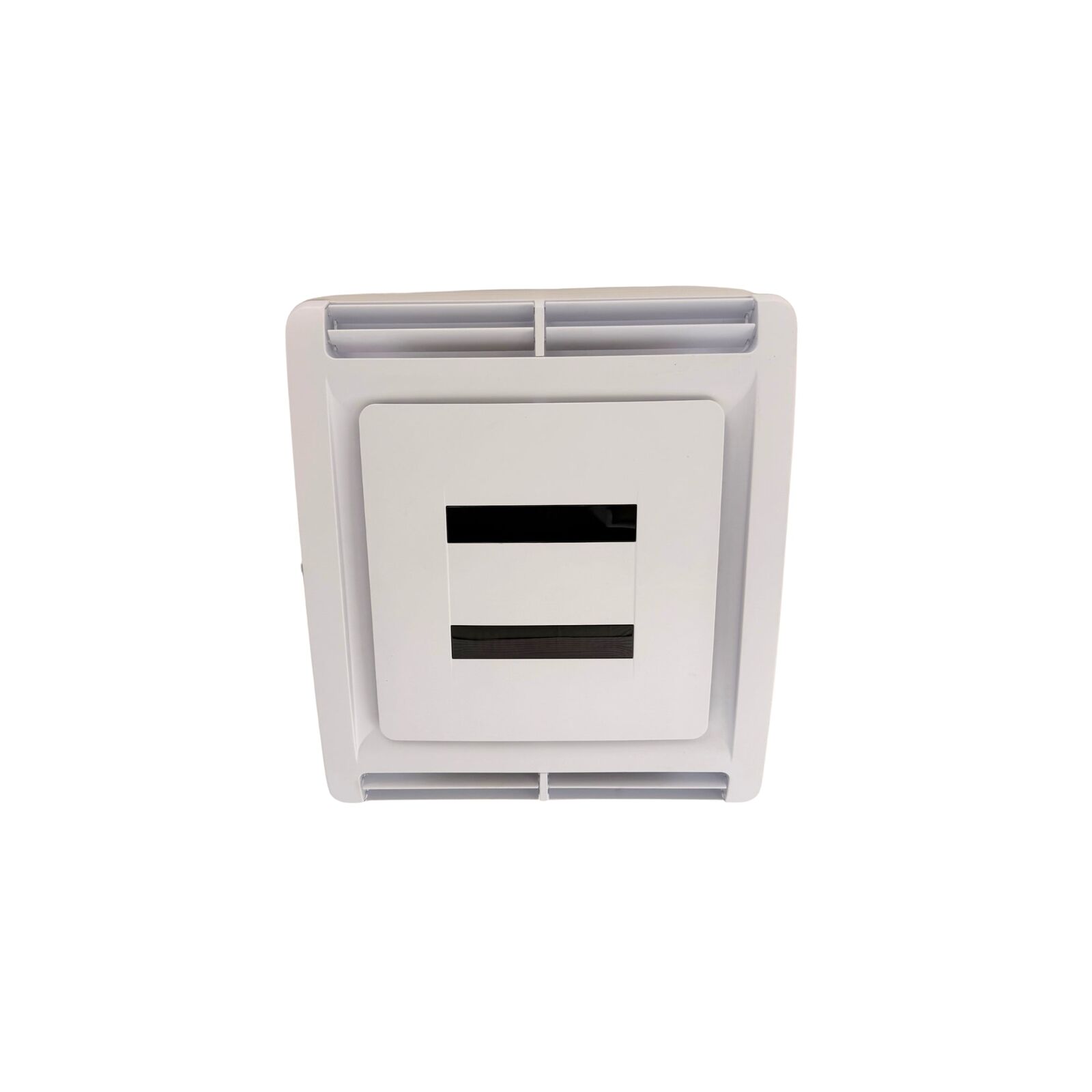

Ceiling unit dimensions	L 581 x W 536 x H 59 mm
Ceiling unit weight	4.8 kg
Total weight	35.8 kg
Roof opening	360 x 360 mm or 400 x 400 mm
Roof thickness	20 to 100 mm (extra spacers needed for 40 to 100 mm)
Suits vans up to	8.5 m
Control	Bluetooth app and ceiling unit control panel
Lighting	LED lighting in the ceiling unit
Warranty	3 years

SKU	CCA3500i
Brand	myCOOLMAN
Type	Roof Top Airconditioner
Shipping Weight	60.0000kg
Shipping Width	0.800m
Shipping Height	0.580m
Shipping Length	1.200m
