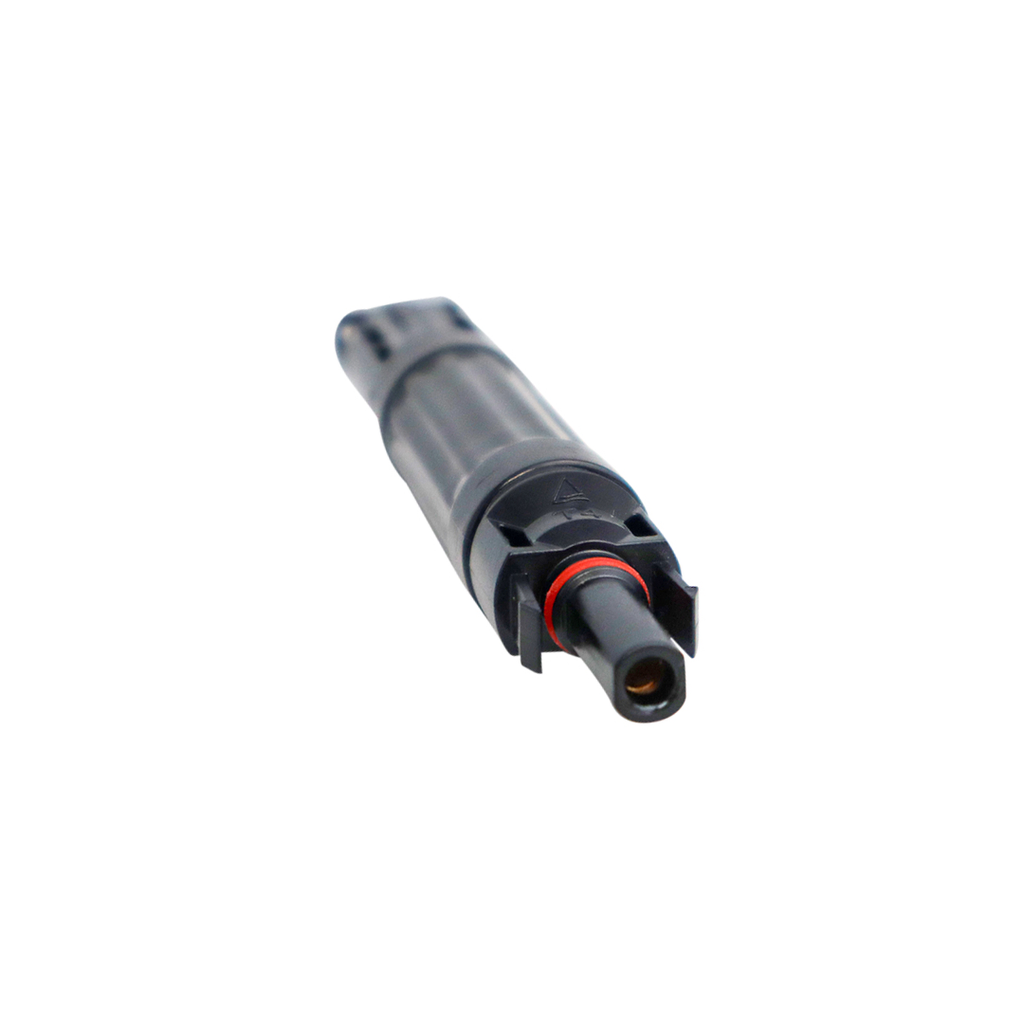

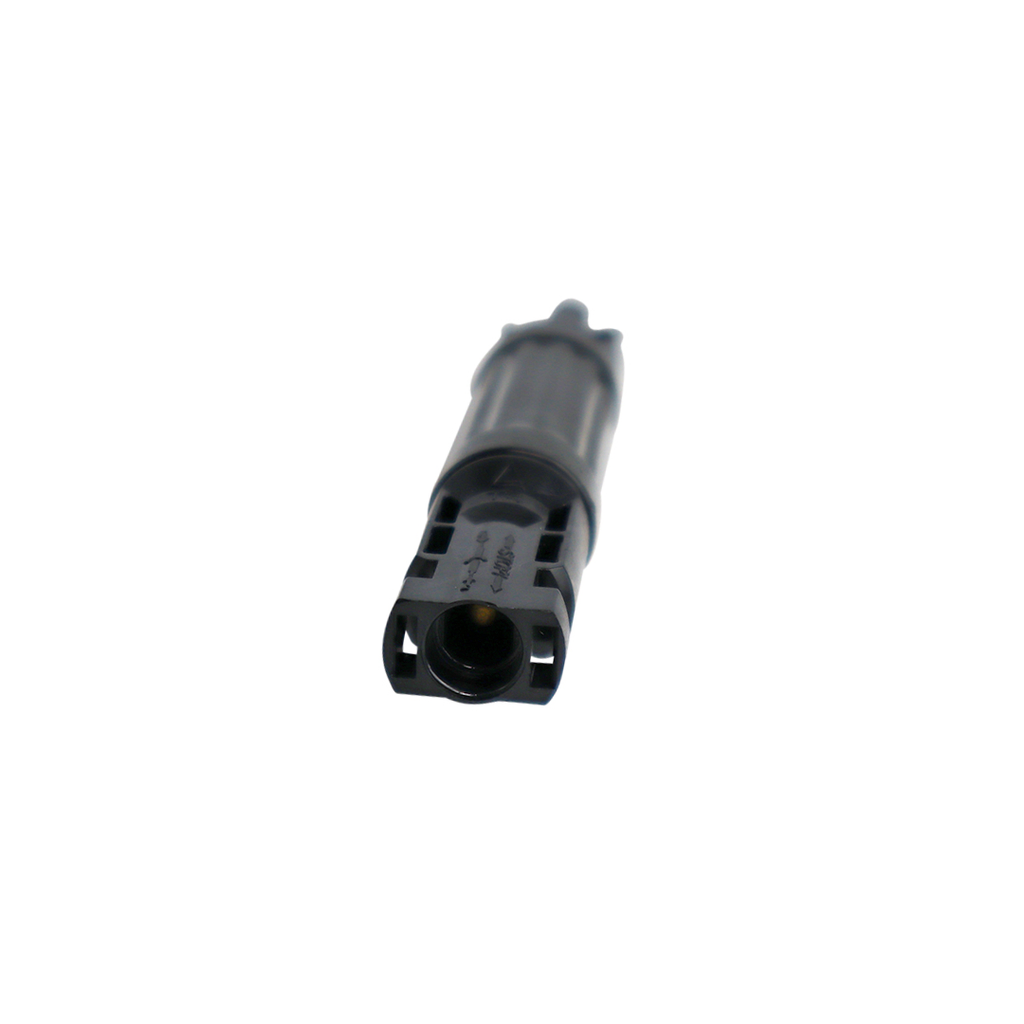

20A MC4 Inline Solar Fuse Connector with Spare Fuse
Buy Now, Pay Later.
DETAILS
Solar protection
Fuse your panels in seconds
Our inline solar fuse connector plugs straight into your MC4 solar leads, so you can fuse a panel or solar run without cutting or crimping.
Fully sealed against dust and water, it is ready for the roof of your caravan, canopy or camp setup.
15–30A
Four fuse ratings
IP68
Dust and waterproof
MC4
Plug and play
Spare
Fuse included
Why fuse your solar
Protect the cable, not just the panel
A short or a damaged lead on the roof can draw far more current than your cable is rated for. A fuse close to the panel cuts the circuit before the cable overheats, protecting your wiring, your regulator and your rig.
- ✓Fits between the panel and your extension lead
- ✓Male in, female out, so it only plugs in one way
- ✓Spare fuse in the box for a quick roadside swap
Choosing a rating
Match the fuse to your panel
Pick a rating just above your panel's short-circuit current (Isc), printed on the label on the back of the panel. As a guide, 15A suits most single panels up to about 200W, and 30A suits larger panels or two panels in parallel.
Always make sure the fuse rating is no higher than your cable's current rating. Not sure what your setup needs? Contact our team and we will check it with you.
Complete your solar run
Goes well with
MC4 Solar Extension Cables
Run power from the panel to your regulator. 2m, 5m and 10m lengths.
Pre-Wired Dual Entry Junction Box
A sealed, tidy entry point for your solar cables through the roof.
MC4 Panel Parallel Connectors (Pair)
Join two panels in parallel. Fuse each panel before it joins.
Frequently asked questions
Which fuse rating do I need?
Choose the next rating above your panel's short-circuit current (Isc), and make sure it is no higher than your cable's current rating.
Where should the fuse go?
In the positive lead, as close to the panel as practical.
Do I need one for each panel?
If you run two or more panels in parallel, fit a fuse to each panel before they join.
Can I replace the fuse?

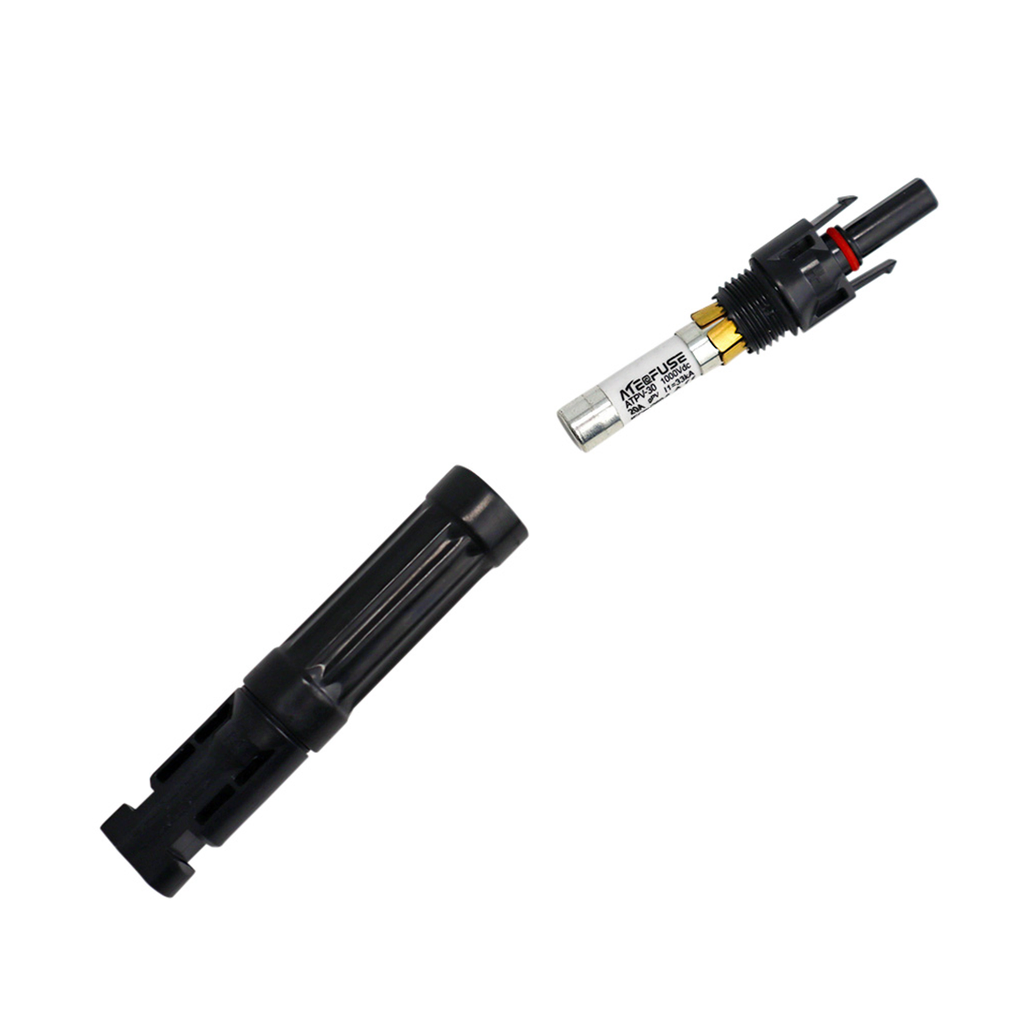

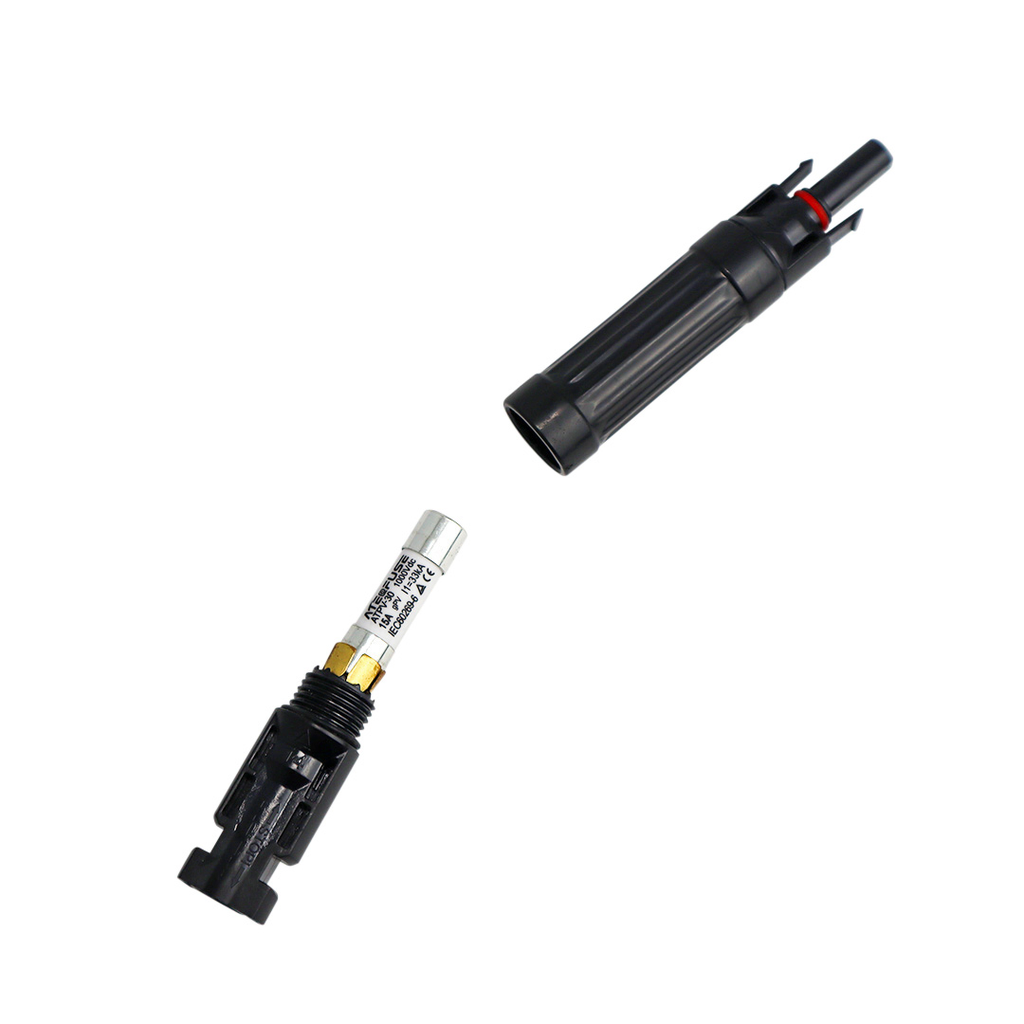

Yes. Unscrew the holder and fit the spare fuse supplied.
Does it suit 24V systems?
Yes. It suits 12V and 24V solar setups.
What is in the box and what is the warranty?
One fuse connector with the fuse fitted, plus one spare fuse. It is covered by a 12 month warranty.
FEATURES

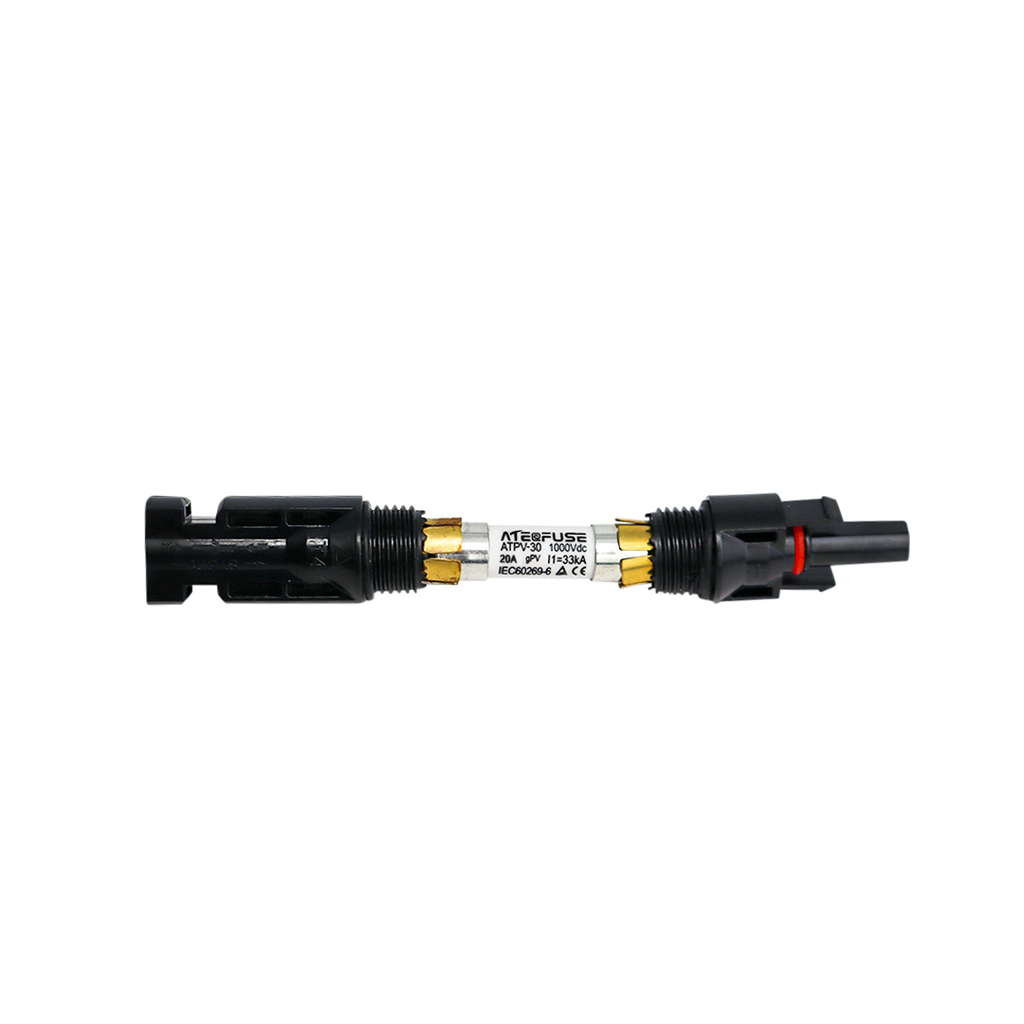

- ✓Inline fuse holder with MC4 connectors
- ✓Male to female, fits standard solar leads
- ✓IP68 sealed against dust and water
- ✓Spare fuse included
- ✓15A, 20A, 25A and 30A ratings
- ✓Suits 12V and 24V solar systems
WHAT'S INCLUDED?

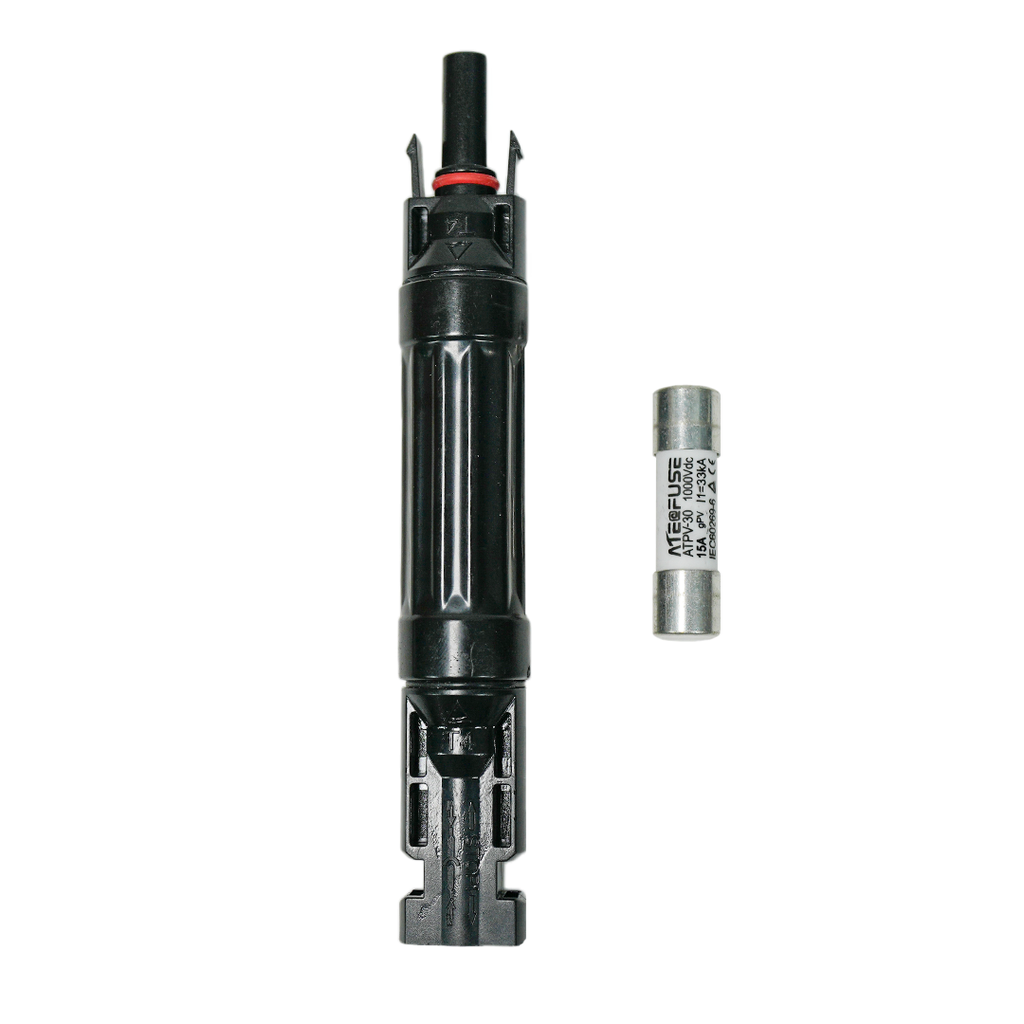

- 1 x Inline solar fuse connector, fuse fitted
- 1 x Spare fuse (same rating)
- Solar panel and extension leads not included
SPECIFICATIONS
Fuse connector
| Fuse rating | 15A / 20A / 25A / 30A |
| Connectors | MC4 male to MC4 female |
| Ingress rating | IP68 |

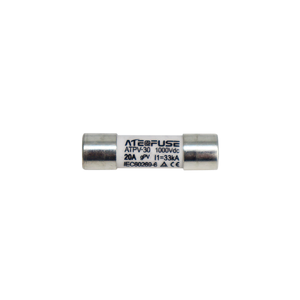

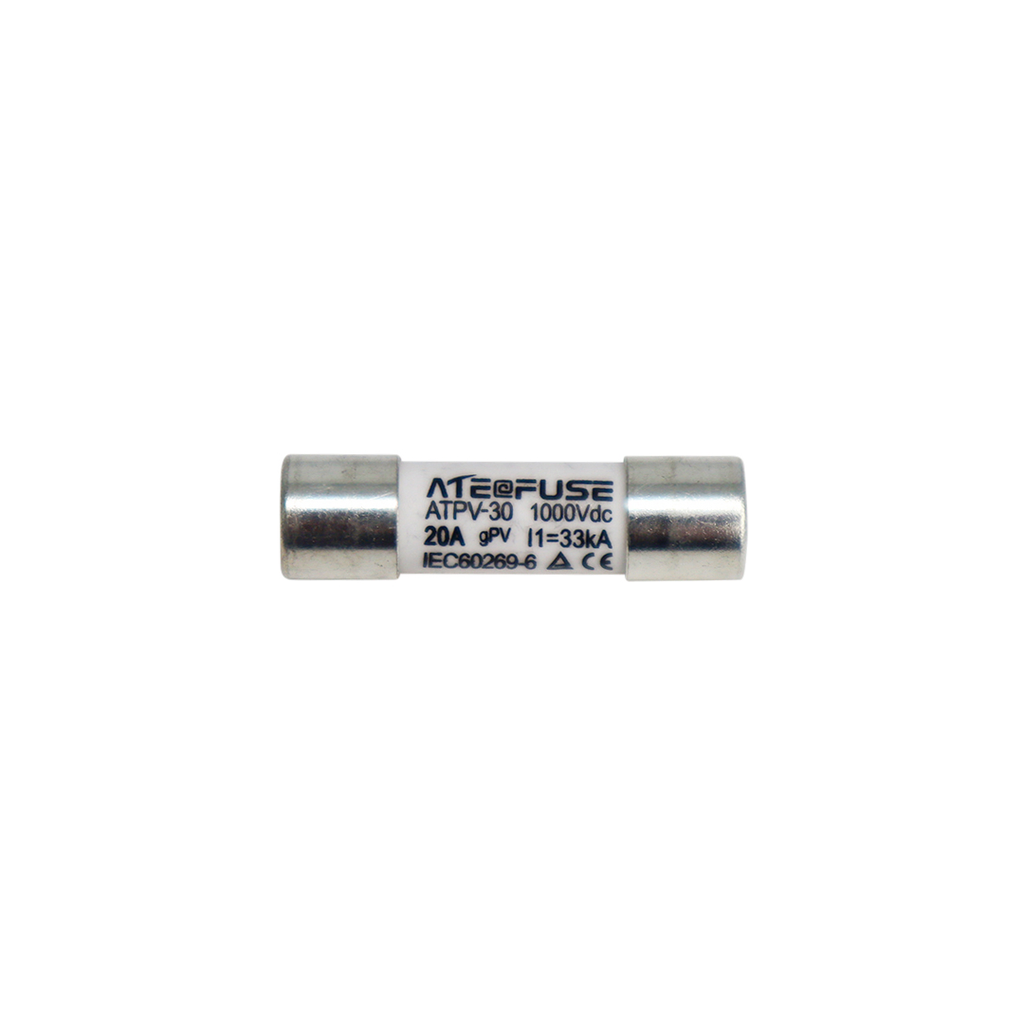

| Fuse type | 10 x 38mm cartridge |
| Maximum voltage | 1000V DC |
| Suits cable | 4–6mm² |
| Spare fuse | 1 x same rating |
| Warranty | 12 months |
| SKU | TVD-SFXX |
| Brand | 12 Volt Direct |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.010m |
| Shipping Length | 0.150m |
