Alpine HX-Z8 Rugged Navigator Tablet with Hema Nav & Mount

In Stock - In Stock at Supplier - Item Ships in 2-5 business days
Special Order Item - Terms and Conditions apply.
Need it fast? Contact us to confirm lead times.
Pickup currently unavailable.

DETAILS

Overview

A big, tough screen for road and track

The Alpine HX-Z8 is a rugged Android tablet with Hema's on-road and off-road maps built in. You get offline maps, GPS tracking, 4G and the full Google Play Store on a large screen, plus a professional anti-vibration windscreen mount in the box.

Alpine HX-Z8 Rugged Smart Navigator Tablet with Hema Nav and Pro Mount (203 mm Screen)

203 mmHD Screen

IP68 / IP69KWaterproof

12 hNavigation Time

Pro MountIncluded

Hema Maps has been mapping Australia since 1983, with roads and 4WD tracks field checked by the Hema Map Patrol. The HX-Z8 puts that mapping on a screen you can read at a glance.

Hema Nav

From city streets to remote tracks

Route planning, turn-by-turn directions and a seamless switch from on-road to off-road navigation get you there smoothly. The 3D Explorer Map shows elevation and track difficulty, and record your own tracks with waypoints and an elevation profile.

✓Hema on-road and off-road maps
✓All-new Hema 3D Explorer Map with elevation and track difficulty
✓Turn-by-turn directions from road to track

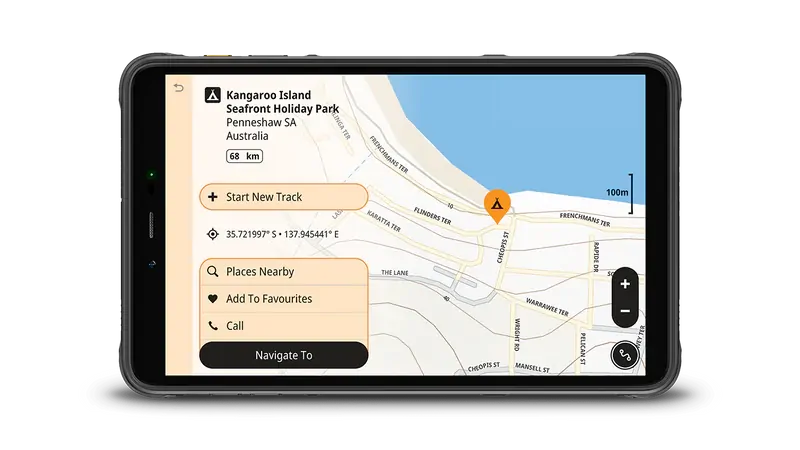

✓Campsite and point-of-interest details

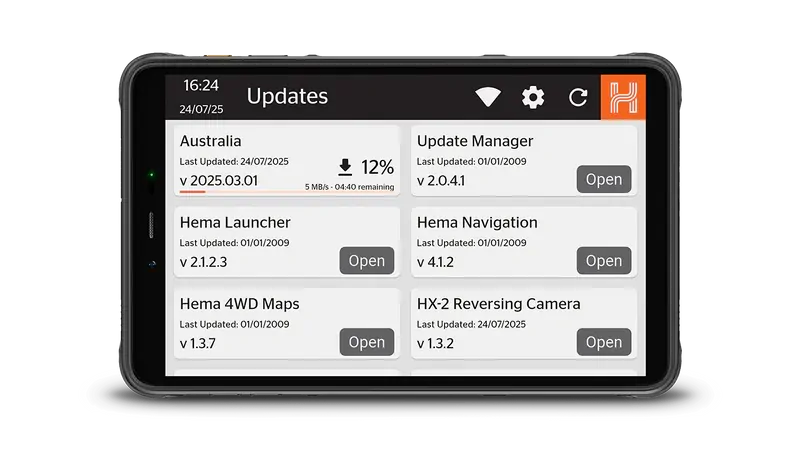

✓Online map updates

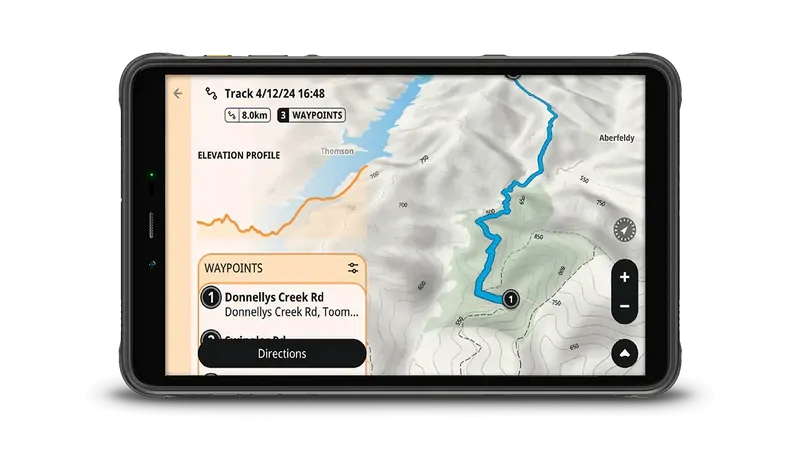

Alpine HX-Z8 showing a recorded track with waypoints and elevation profile in Hema Nav

Built tough

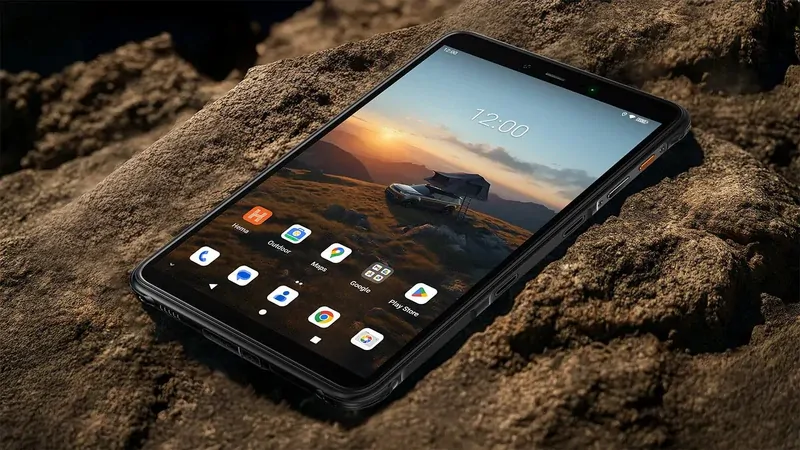

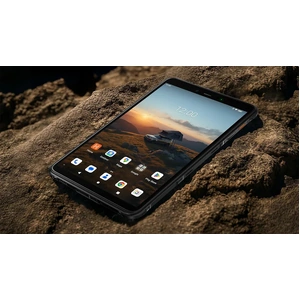

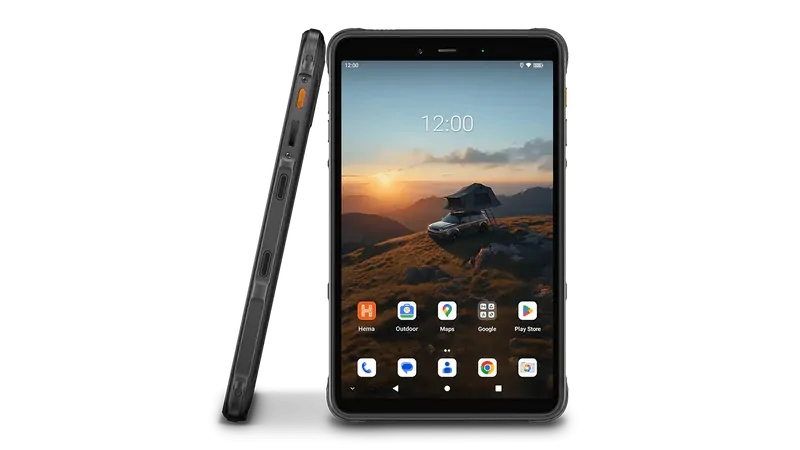

Alpine HX-Z8 rugged tablet lying on rocky ground showing the home screen

Made for corrugations and weather

The HX-Z8 is shock and dust resistant, waterproof to IP68 and IP69K, and MIL-STD-810H military certified. An octa-core processor and 4 GB RAM handle navigation and apps, with up to 12 hours navigation time and 18 W USB-C fast charging.

✓Water resistant to 1.5 m for 30 minutes (IEC 60529)
✓7,650 mAh battery, up to 414 h standby
✓4G dual nano SIM with VoLTE, Wi-Fi and Bluetooth
✓NFC with Google Pay, face and fingerprint unlock

Pro Mount included

Rock-solid on the windscreen

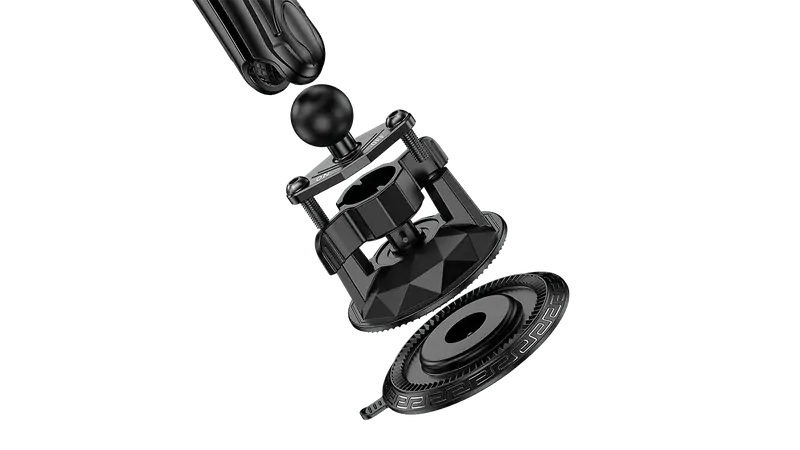

The included KTX-HX8 Professional Rugged Alloy Mount is made for the HX-Z8. A triple-action vacuum cup locks to the windscreen with a twist, four anti-vibration torsion dampeners soak up the shakes, and a 360-degree dock holds the tablet with a four-point clip-in and secondary lock.

✓Triple-action vacuum suction
✓360-degree rotating dock

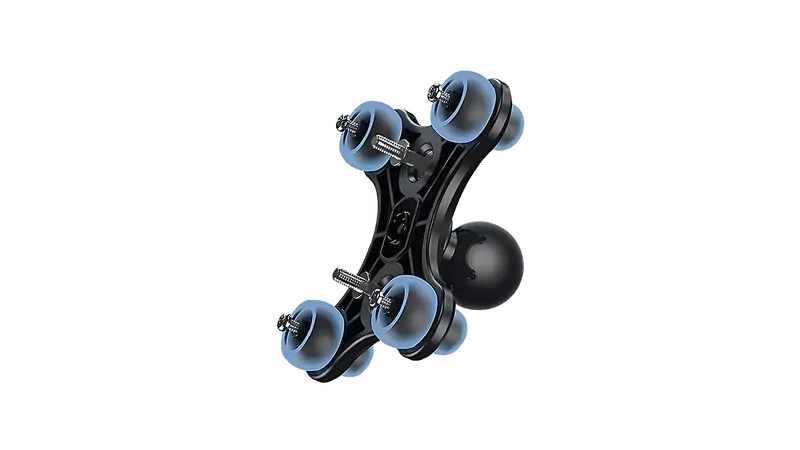

✓Four anti-vibration torsion dampeners
✓Corrosion-resistant aluminium alloy arm

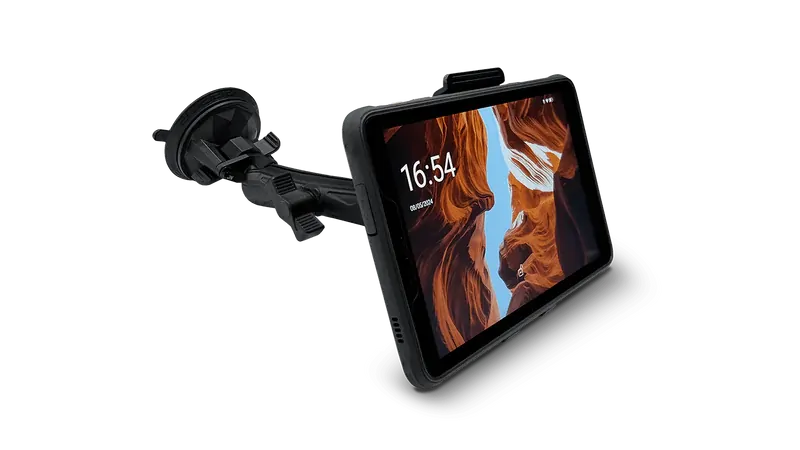

Alpine HX-Z8 held in the KTX-HX8 Pro windscreen mount

Frequently asked questions

Does it need mobile coverage to navigate?

No. Hema states the HX-Z8 offers reliable offline maps and GPS tracking. Mobile data or Wi-Fi is only needed for things like online updates and apps.

Is the mount included?

Yes. The KTX-HX8 Pro Mount comes in the box with the HX-Z8.

Can I make calls on it?

Yes. It supports 4G on global bands with dual nano SIM and VoLTE HD calling.

Are Hema 4WD Maps included?

Hema Nav on-road and off-road maps are included. Hema's 4WD Maps collection (digital copies of Hema's topographic maps) is sold separately.

How long does the battery last?

Alpine quotes up to 12 hours navigation time and up to 414 hours standby from the 7,650 mAh battery.

Pairs well with

Alpine HX-Z6 Rugged UHF DMR Smartphone Navigator with Hema Nav

Pocket-size rugged phone with Hema Nav and a built-in UHF/DMR radio.

$1299.95 · View

Hema HX-2+ GPS Navigator with Hema Nav

Hema's dedicated 4WD navigator with a 177 mm screen and offline Hema maps.

$849.95 · View

Hema Australia Road & 4WD Touring Atlas (13th Edition)

The paper back-up for any trip: Australia-wide road and 4WD atlas.

$39.95 · View

Features

✓Rugged 203 mm Android tablet with Hema Nav on-road and off-road maps
✓Hema 3D Explorer Map with elevation and track difficulty
✓Offline maps and GPS tracking
✓IP68 and IP69K waterproof, dust and shock resistant
✓MIL-STD-810H military certified

✓Up to 12 hours navigation, 414 hours standby, 18 W fast charging
✓4G dual nano SIM, VoLTE calling, Wi-Fi and Bluetooth
✓Google Play, NFC with Google Pay, built-in FM radio
✓KTX-HX8 Pro anti-vibration alloy windscreen mount included

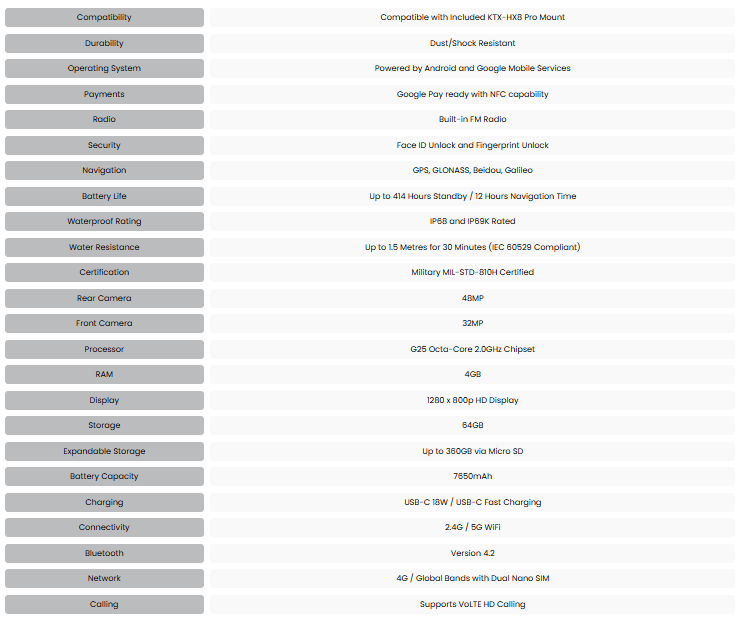

Specifications

Display & performance

Screen	203 mm diagonal, 1280 x 800 HD
Processor	G25 octa-core, 2.0 GHz
RAM	4 GB
Storage	64 GB, expandable up to 360 GB via micro SD
Operating system	Android with Google Mobile Services

Navigation

Navigation	Hema Nav on-road and off-road maps, 3D Explorer Map
Satellite positioning	GPS, GLONASS, BeiDou, Galileo

Connectivity & cameras

Mobile network	4G / global bands, dual nano SIM, VoLTE HD calling
Wi-Fi	2.4 GHz / 5 GHz
Bluetooth	4.2
NFC	Yes, Google Pay ready
FM radio	Built-in
Rear camera	48 MP
Front camera	32 MP
Security	Face unlock, fingerprint unlock

Power & toughness

Battery	7,650 mAh
Battery life	Up to 414 h standby, 12 h navigation
Charging	USB-C, 18 W fast charging
Waterproof rating	IP68 and IP69K; water resistant to 1.5 m for 30 minutes (IEC 60529)
Toughness	Dust and shock resistant, MIL-STD-810H certified

Mount & model

Mount	KTX-HX8 Pro Mount (included): triple-action vacuum cup, 360-degree dock, alloy arm, anti-vibration dampeners
Brand	Alpine (with Hema Nav)
Model	HX-Z8

What's Included

✓1 x Alpine HX-Z8 unit
✓1 x KTX-HX8 Pro Mount

Product Details

SKU	6937748735229
Model #	6937748735229
Barcode #	6937748735229
Brand	Alpine
Shipping Weight	1.0000kg
Shipping Width	0.250m
Shipping Height	0.050m
Shipping Length	0.250m
