DETAILS

Overview

Flush mount power panel: Anderson, cigarette and USB

Three outlets in one neat, low-profile panel: a recessed 50A Anderson-style plug for your fridge, compressor or power station, a 10A marine cigarette socket for 12V accessories, and a fast-charging USB socket with QC 3.0 USB-A and USB-C PD ports. It mounts flush into trims, canopy walls, drawer fronts and battery boxes for a factory-finished look.

50A
Anderson-Style Plug
10A
Cigarette Socket
USB-C + QC 3.0
USB Socket
160 x 43 mm
Faceplate
2 Years
Warranty
Flush Mount Panel: 50A Anderson-Style Plug + Cigarette Socket + QC 3.0 USB-A & USB-C PD Socket

What’s on the panel

OutletRatingUse it for
Anderson-style plug50AFridges, compressors, power stations, Anderson leads
Marine cigarette socket10A12V plugs: pumps, inflators, chargers, cigarette fridges
USB socketUSB-C PD 45 W + QC 3.0 USB-A 18 WPhones, tablets, cameras, GPS, headlamps

The USB socket is the same QC 3.0 + USB-C PD unit we sell on its own as the TVDSU3, so it fast charges iPhone, Samsung, Pixel and most other phones.

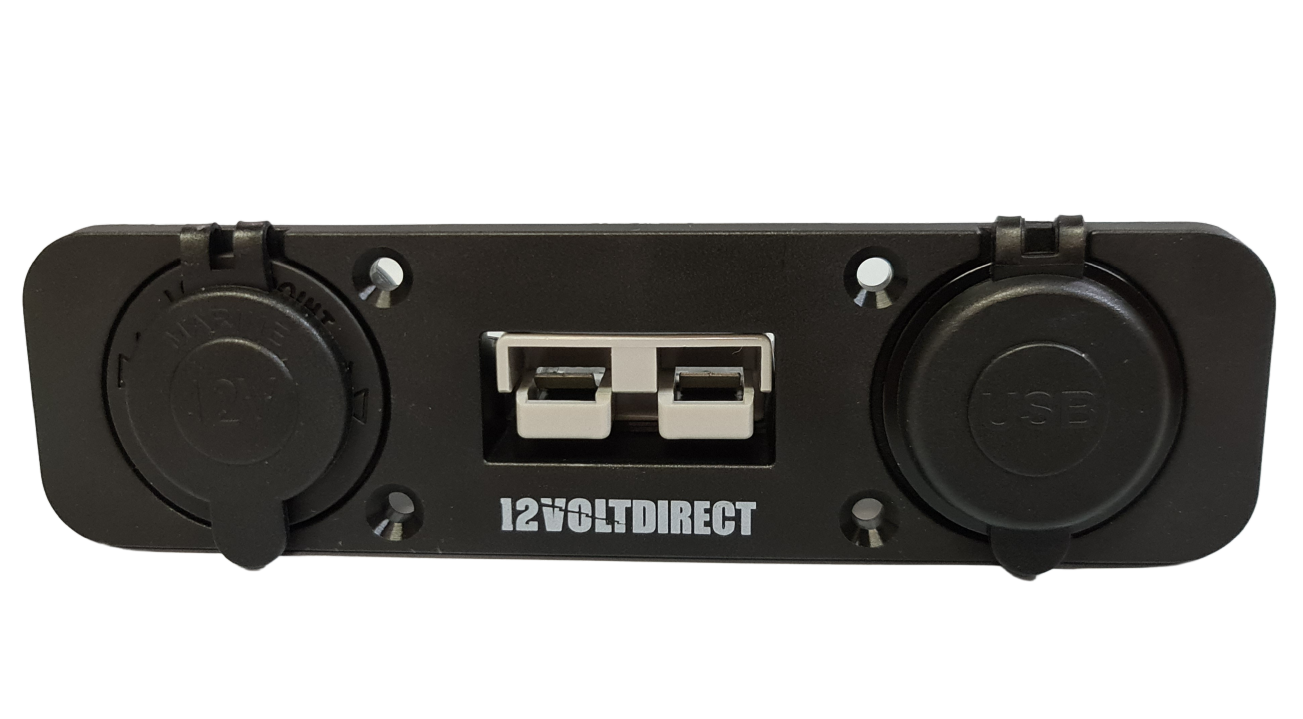

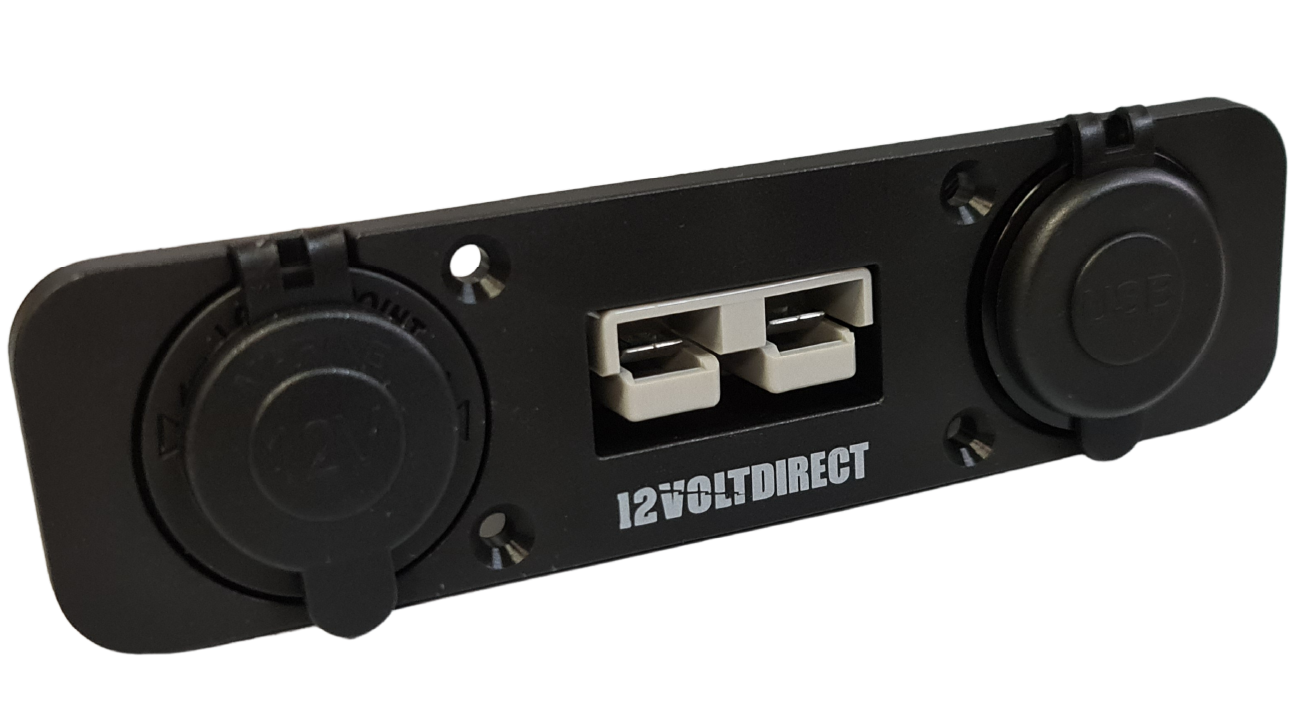

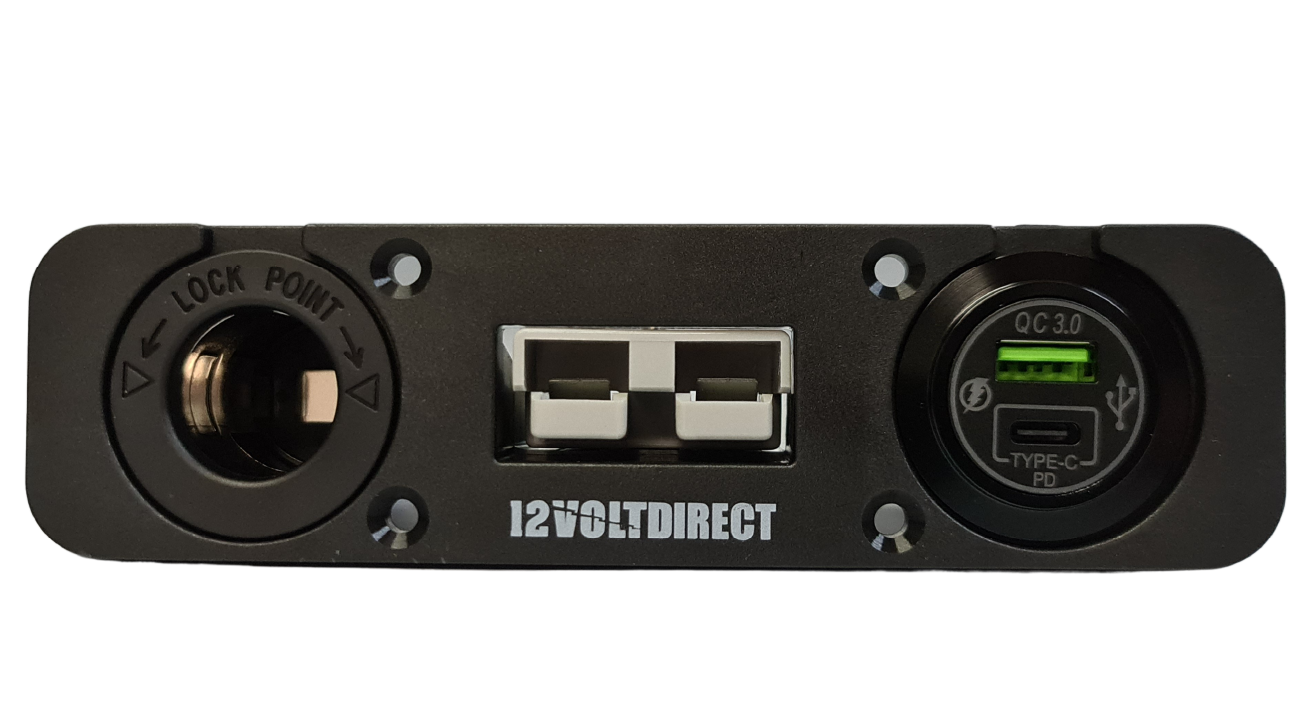

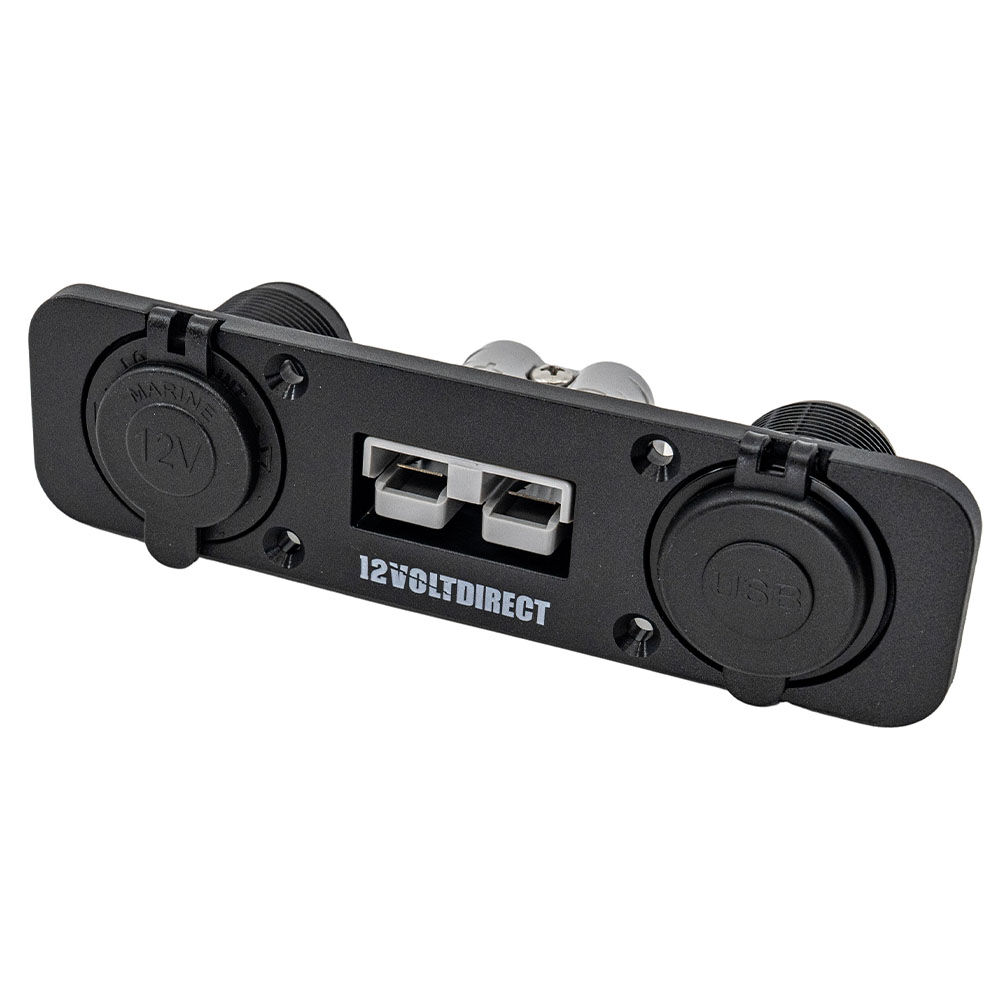

Flush mount panel with cigarette socket, Anderson-style plug and USB socket

Neat, strong installation

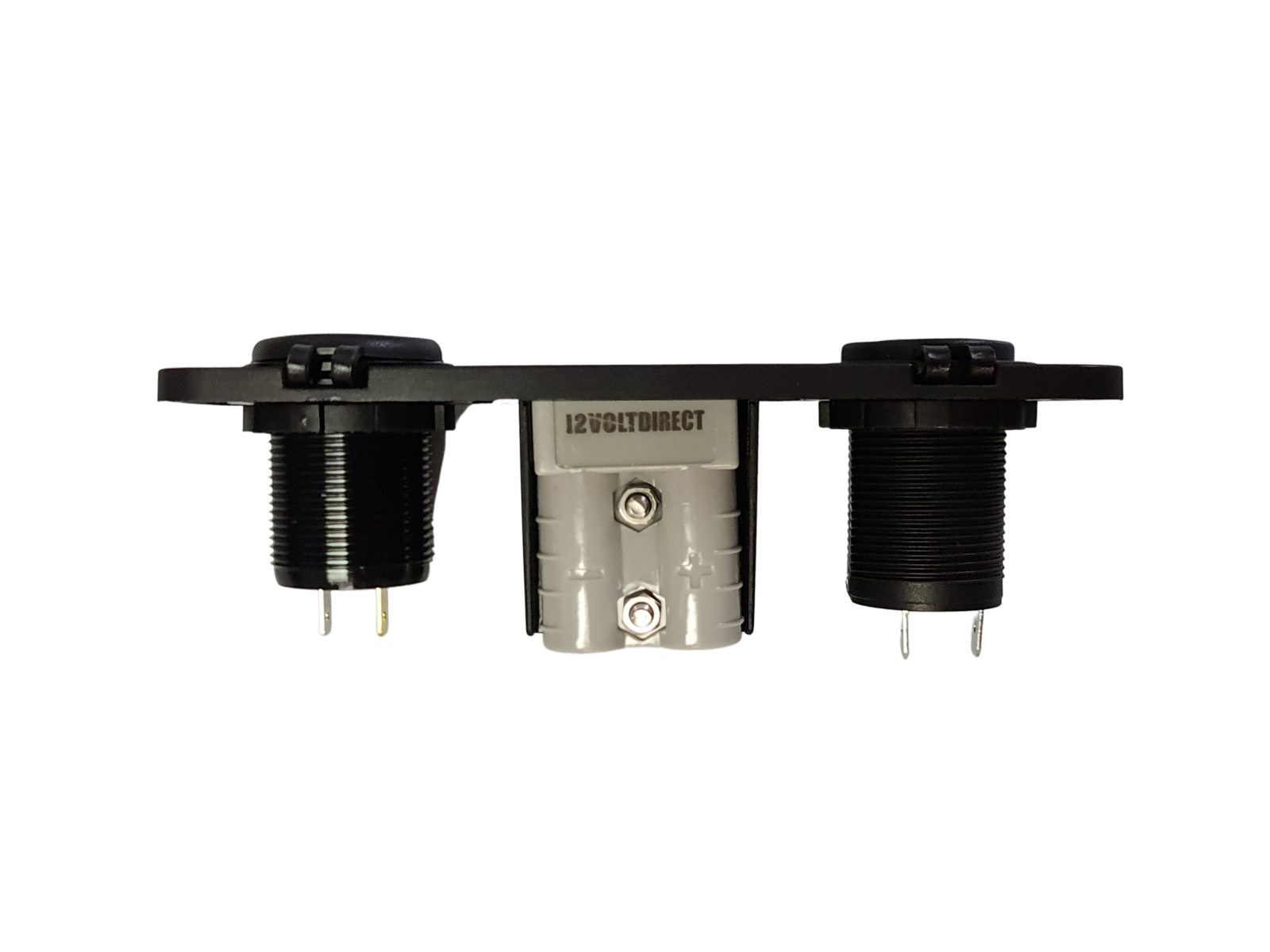

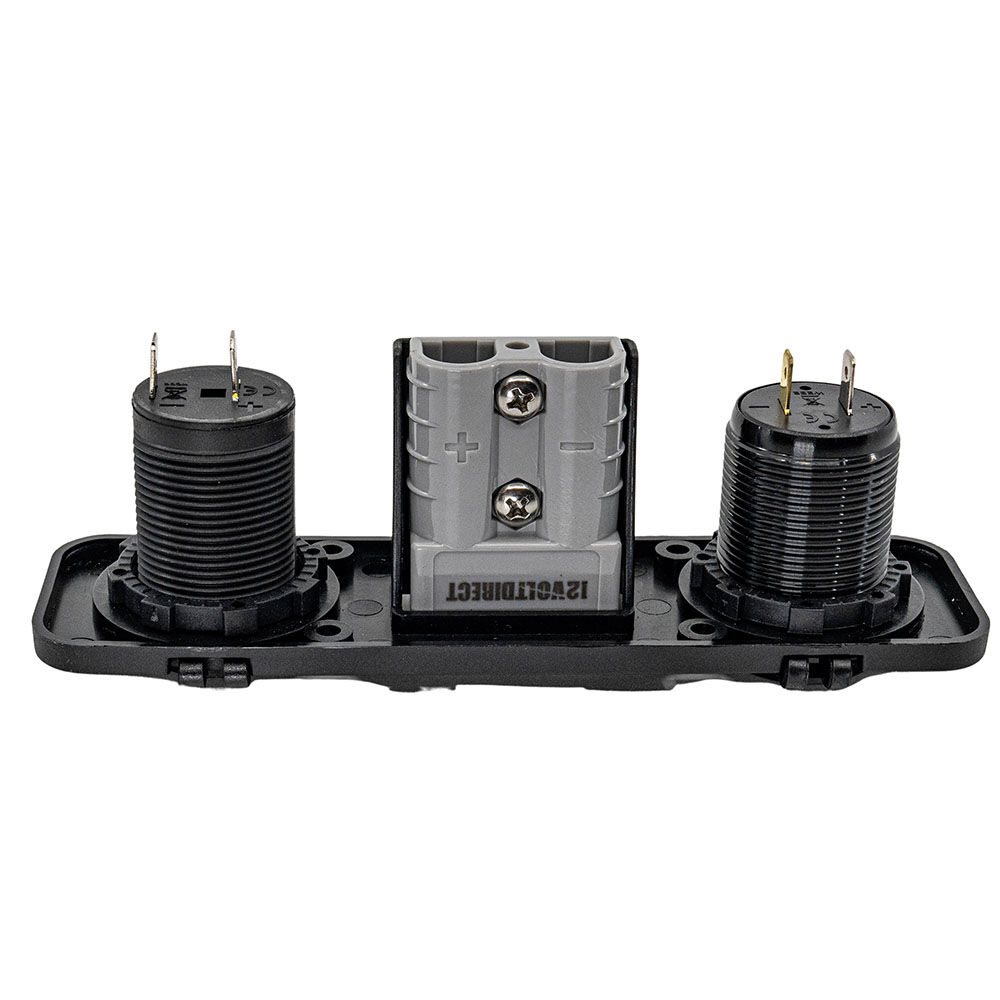

Rear of the flush mount panel showing the socket bodies and Anderson housing

  • ✓Flush faceplate 160 x 43 x 5 mm: sits almost flat against the panel for a clean, factory look
  • ✓Recessed Anderson plug: the plug sits behind the face, protected from knocks
  • ✓Hinged caps on the cigarette and USB sockets keep out dust and water
  • ✓Mounting hardware included
  • ✓Wire each outlet separately: run each through its own fuse so a fault on one doesn’t shut down the others

The flush mount range

This panel is part of our flush mount range, so you can match the outlets across your setup: a flush mount Anderson plug on its own, an Anderson plug with a cigarette socket, and this three-outlet panel with USB.

Wire the Anderson plug with cable sized for the load (6 mm² or heavier for a 50A circuit over short runs) and fuse each circuit close to the battery.

The 12 Volt Direct flush mount panel range

2
Year
Warranty
Why buy from Perception Lighting12 Volt DirectSPC Enterprises
Australian business since 2007
Sydney store, shipping Australia-wide
Real people, here in Australia
Not an overseas call centre
2-year warranty
Plus 30-day change-of-mind returns

Need a hand choosing?

Not sure which socket suits your setup? contact our team and we’ll help you pick the right one. Every socket ships from our Sydney store with a 2-year warranty.

Features

  • ✓Recessed 50A Anderson-style plug
  • ✓10A marine cigarette socket with cap
  • ✓USB socket with USB-C PD (45 W) and QC 3.0 USB-A (18 W)
  • ✓Flush faceplate 160 x 43 x 5 mm
  • ✓Mounting hardware included
  • ✓2-year warranty

Specifications

OutletsAnderson-Style Plug, Cigarette Socket, USB Socket
Anderson Rating50A
Cigarette Socket10A Marine Type with Cap
USB Socket1 x USB-C PD + 1 x USB-A QC 3.0
USB-C PD Output5V / 3A
9V / 3A
12V / 3A
15V / 3A
20V / 2.2A (45 W Max)
USB-A QC 3.0 Output5V / 3A
9V / 2A
12V / 1.5A (18 W Max)
USB Total Power36 W on 12V, 45 W on 24V
Faceplate160 x 43 x 5 mm
MountingFlush, Hardware Included
Voltage12V DC
Warranty2 Years

What's Included

  • 1 x flush mount panel with Anderson-style plug, cigarette socket and USB socket fitted
  • 1 x set of mounting hardware

Product Details

SKU TVDFMAUC
Barcode # 744109316111
Brand 12 Volt Direct
Shipping Weight 0.1000kg
Shipping Width 0.190m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.001425000m3

12 Volt Direct is a 12 V power specialist for the automotive, 4WD, caravan and off-grid industry. When 12V matters, trust the professionals. 12 Volt Direct was built around a simple idea: 12 V systems should be done properly. Its range is designed for the way Australians power their vehicles, carava...
