DETAILS


Operating on all 3G and 4G frequencies in Australia and abroad, this high-grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network. This is the ideal omni-directional external antenna for Cel-Fi repeater systems.

ELECTRICAL SPECIFICATIONS
  • Frequency Range 698-960 MHz / 1710-2700 MHz
  • Input Impedance 50 Ω
  • Peak Gain 6 / 6 dBi
  • VSWR ≤2.5:1 / ≤2.5:1
  • Polarisation Vertical linear
  • Horizontal Beamwidth 360° (omnidirectional)
  • Vertical Beamwidth 60°
  • Maximum Input Power 100 W

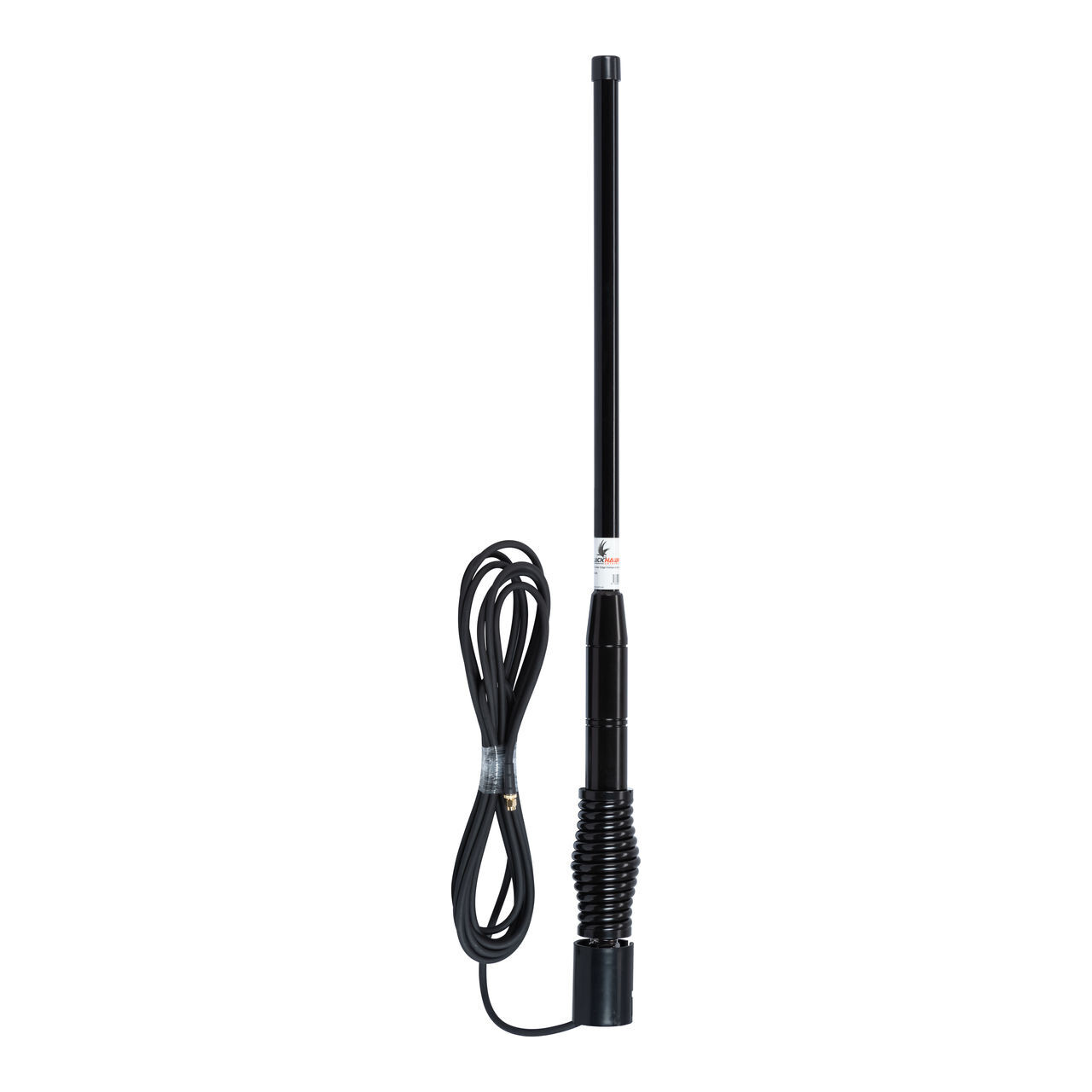

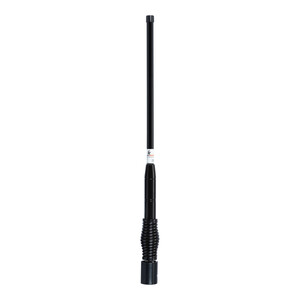

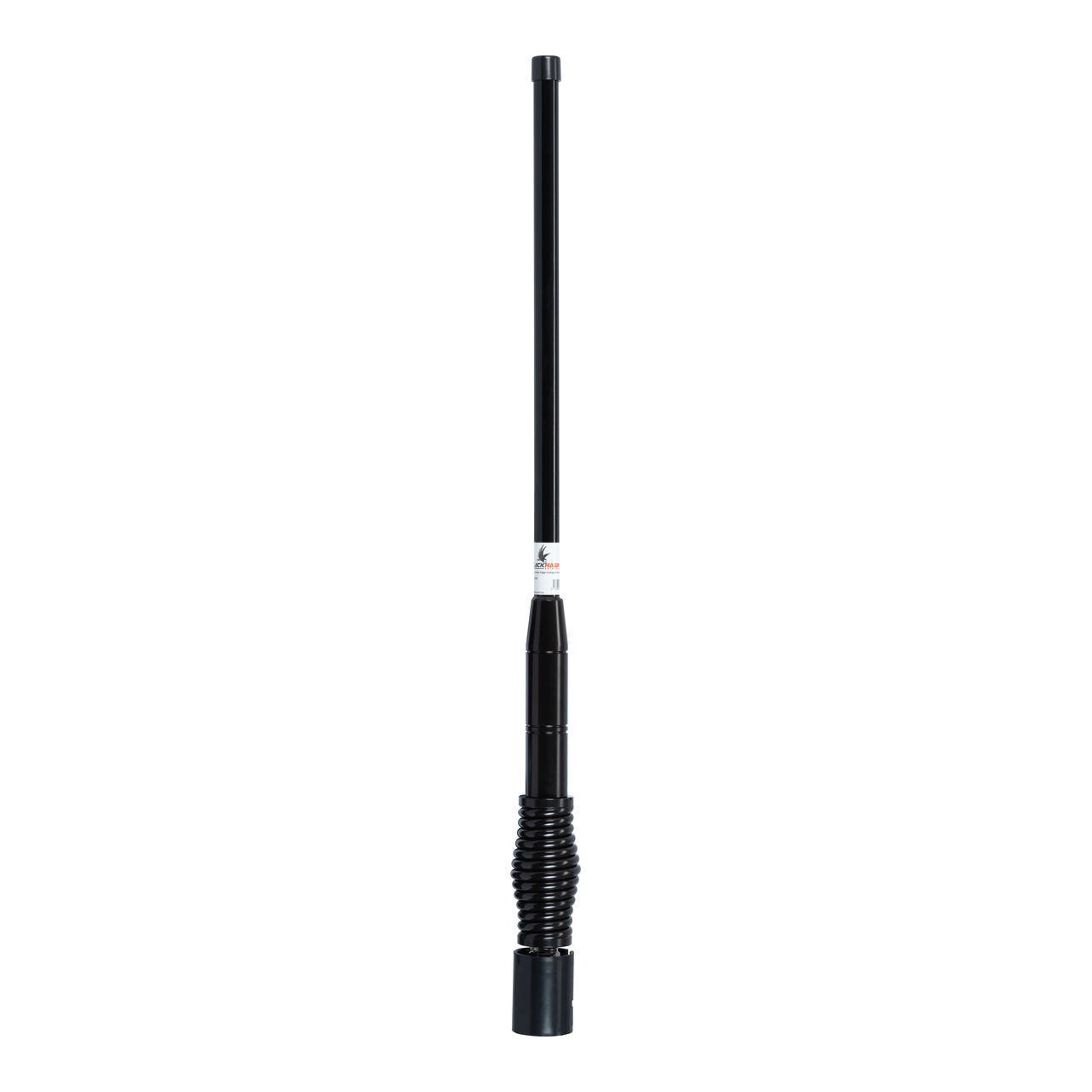

The Blackhawk Wideband Omni Antenna provides an ideal solution for 3G / 4G voice and data applications. With the rollout of new 3G and 4G frequencies such as 700 MHz 4GX and 2600 MHz 4G, traditional omni-directional antennas just haven’t been able to keep up. Blackhawk wideband omni-directional antennas provide high gain across the full cellular band 700 to 2700 MHz regardless of mounting direction, allowing quick and easy installation with no technical know-how required.

The true wideband performance has been achieved through a clever engineering design utilising multi-sized collinear radiators and microwave-grade combiners, demonstrating consistently high gain with exceptional azimuthal stability.

FEATURES
  • 6 dBi gain across lower bands 698-960 MHz
  • 6 dBi gain across upper bands 1710-2700 MHz
  • Ruggedised construction for Australian conditions
  • UV-stable PVC construction
  • Stainless steel L-bracket included
  • Integrated N Female connector
  • Optional 6m or 10m LMR240 cable
  • Input Connector N Female
  • Cable (optional) 6m PT240 LSHF SMA Male
  • 10m PT240 LSHF SMA Male



  • Lightning Protection DC Ground
  • Radiator Material Collinear copper elements
  • Radome Material UV stable PVC
  • Mounting Stainless Steel, pole mount Ø30-50 mm
  • Dimensions Ø63 × 680 mm
  • Weight 1.9 kg
  • Packing Dimensions 700 × 100 × 100 mm
  • Rated Wind Velocity 210 km/h
  • Operating Temperature -40 to +65°C
