In Stock - Ready for immediate dispatch or pickup
Order in for Dispatch Today
Pickup Available from Punchbowl, NSW




DETAILS


Overview

Ideal for boosting 3G and 4G LTE signals where mounting access is a problem.

Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G.

FEATURES:

  • 3.5 dBi gain across lower bands 698-960 MHz

  • 3.5 dBi gain across upper bands 1710-2700 MHz

  • Mounting by 3M sticker

  • Connector Type SMA Male

  • Cable length 3 metres

ELECTRICAL SPECIFICATIONS

Frequency Range (MHz) 698-960/1710-2700 MHz
Input Impedance 50
VSWR ≤3.0
Gain (dBi) 3.5
Polarisation Type Vertical
Radiation Direction Omni Directional
Maximum Input Power 50 W

MECHANICAL SPECIFICATIONS

Antenna Length 115x21x3mm
Cable 3000mm
Connect Type SMA Male
Mounting 3M Sticker
Radome Color Black
Cable RG174
Suction 0.7 kg
Attachment Welding

Features

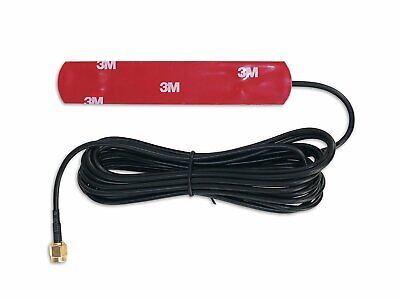

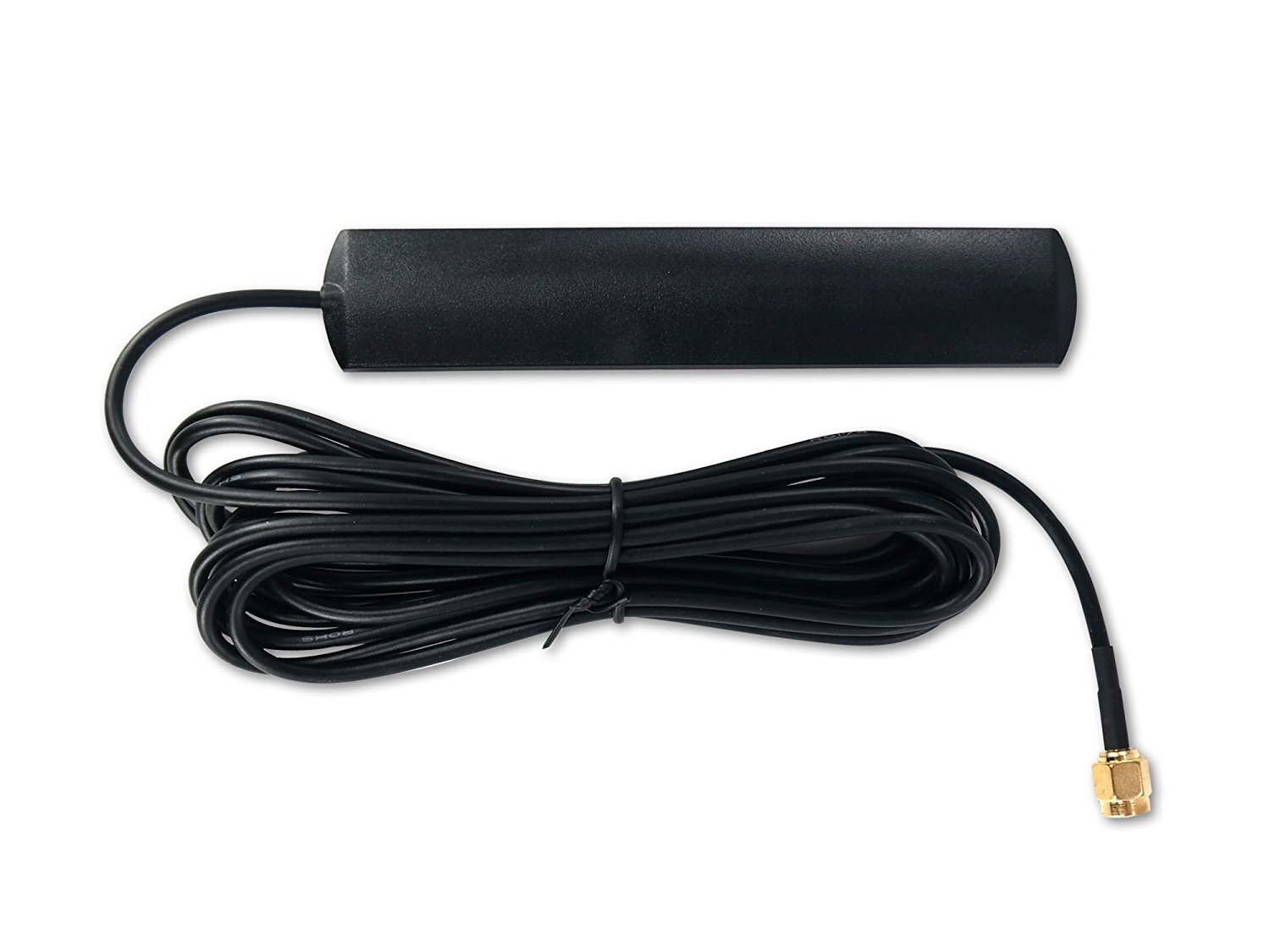

Cel-Fi GO Adhesive Mount Antenna 698-2700MHz Brand: Blackhawk Antennas SKU: ANT-BH-OG-02

Product Details

SKU ANT-BH-OG-02
Barcode # ANT-BH-OG-02
Brand Blackhawk Antennas
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.001000000m3
