Overview

Compact, bright and fully sealed

The ROK-3 is a compact, fully sealed LED pod that puts 966 lumens of crisp 5700K daylight-white light wherever you can fit two screws.

Use it as a rock light under the 4WD, a scene light on the roof rack, a work light in the ute canopy, a camp light on the awning, or a deck light on the boat. It runs on 12V or 24V and draws only 0.5A, so it is easy on your auxiliary battery.

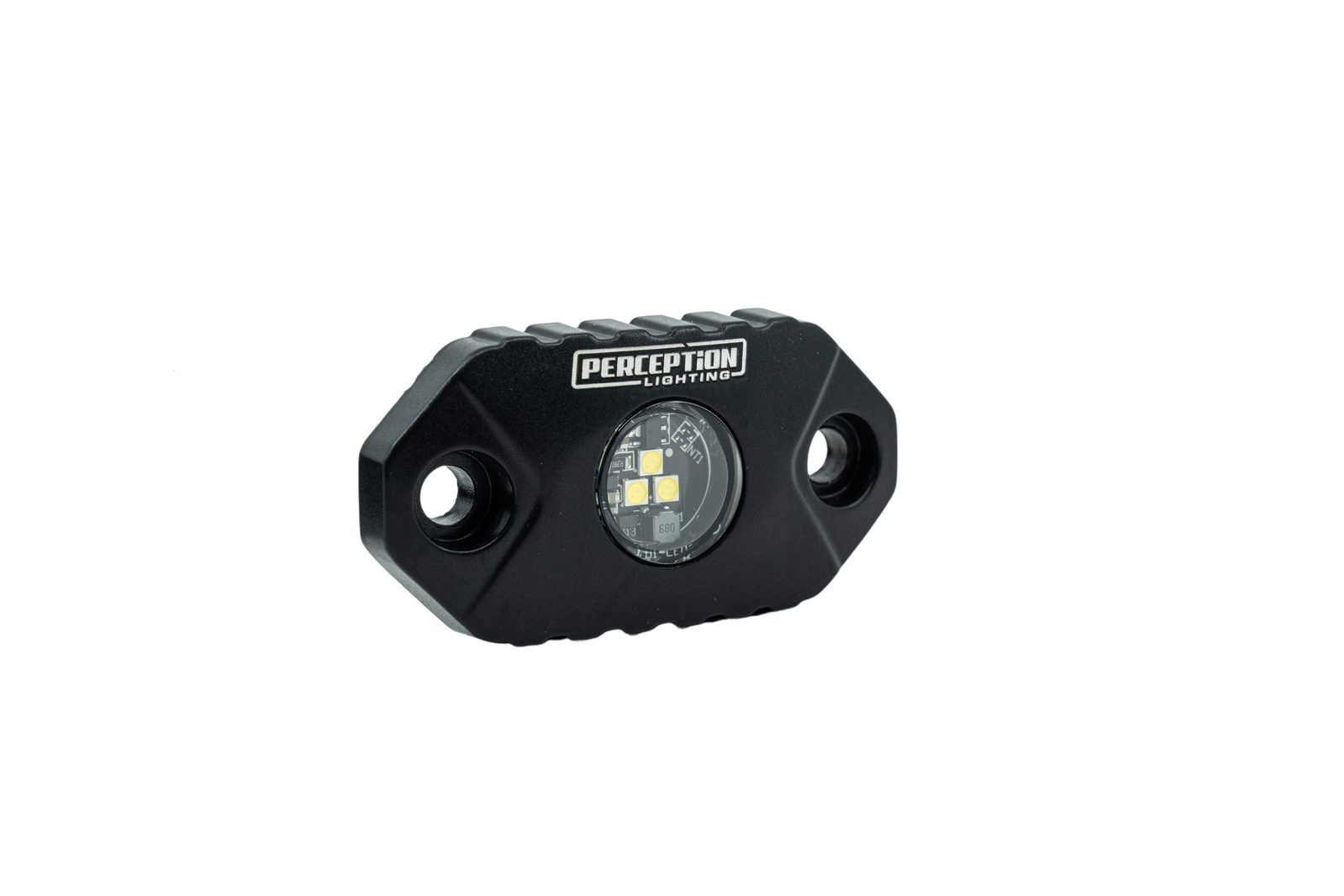

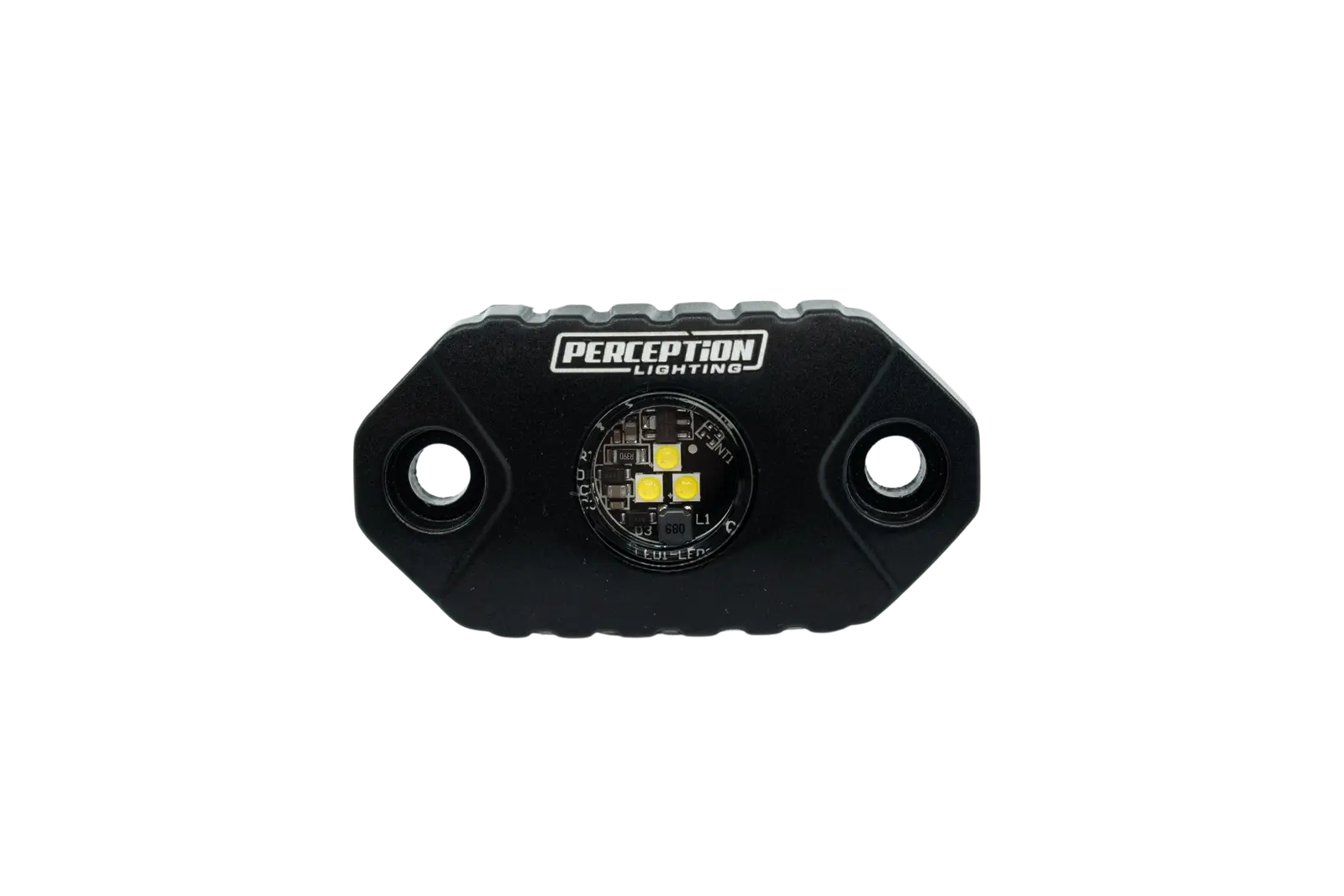

ROK-3 LED Rock Light - White 5700K
966 lmLight Output
5700KDaylight White
IP69KSealed Rating
0.5 AAt 12V

Where it goes

One light, plenty of uses

  • ✓Rock and underbody lighting: see your wheel placement on the tracks at night

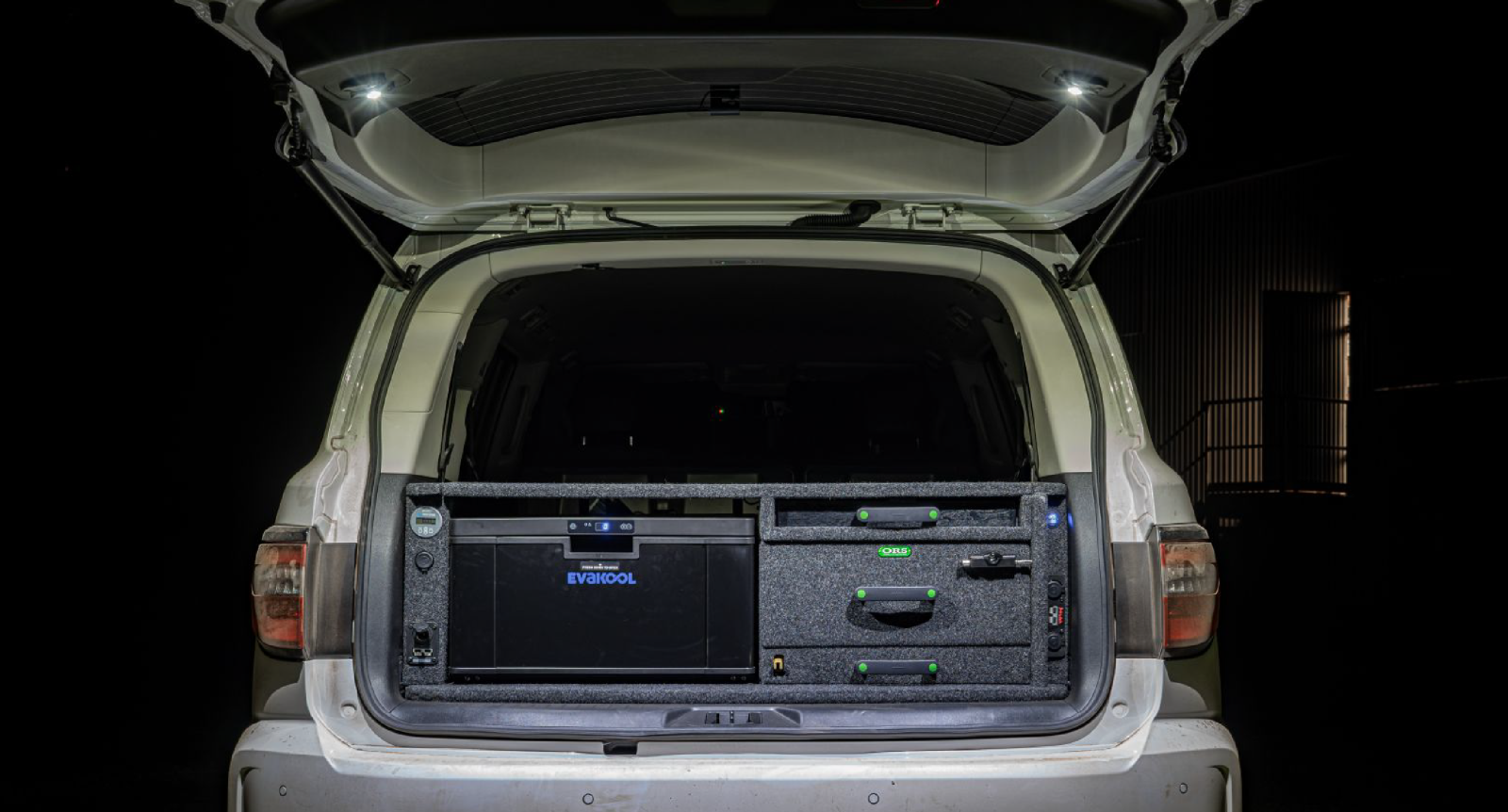

  • ✓Canopy and tray: light up drawers, fridge slides and toolboxes

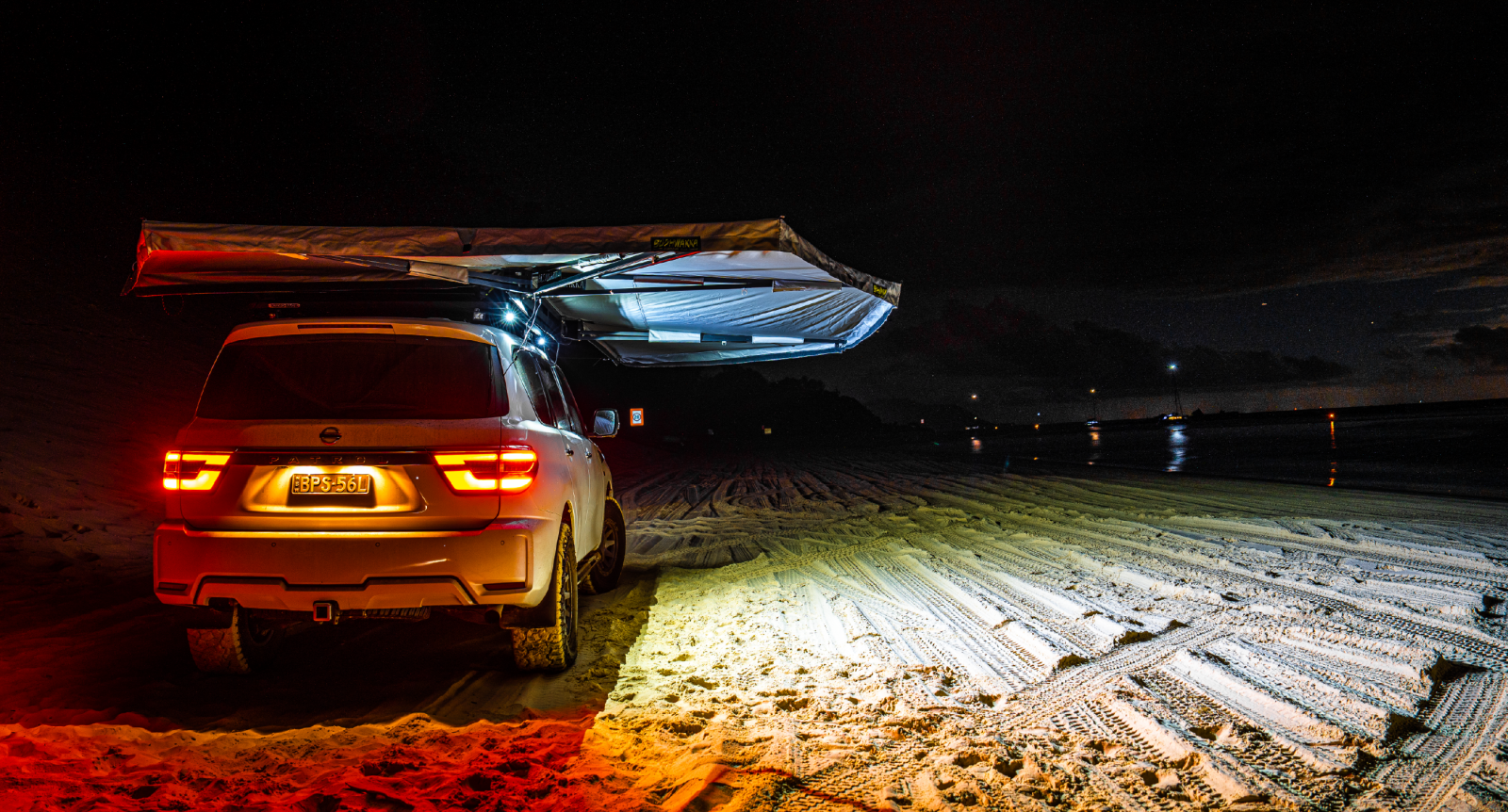

  • ✓Awning and camp: bright, even light over the camp kitchen
  • ✓Reverse and scene lighting: extra light when backing up a boat ramp or campsite
  • ✓Marine: deck, side rail and cockpit lighting

Two ROK-3 rock lights mounted under a Rhino-Rack Pioneer platform on twin brackets

Built for the bush

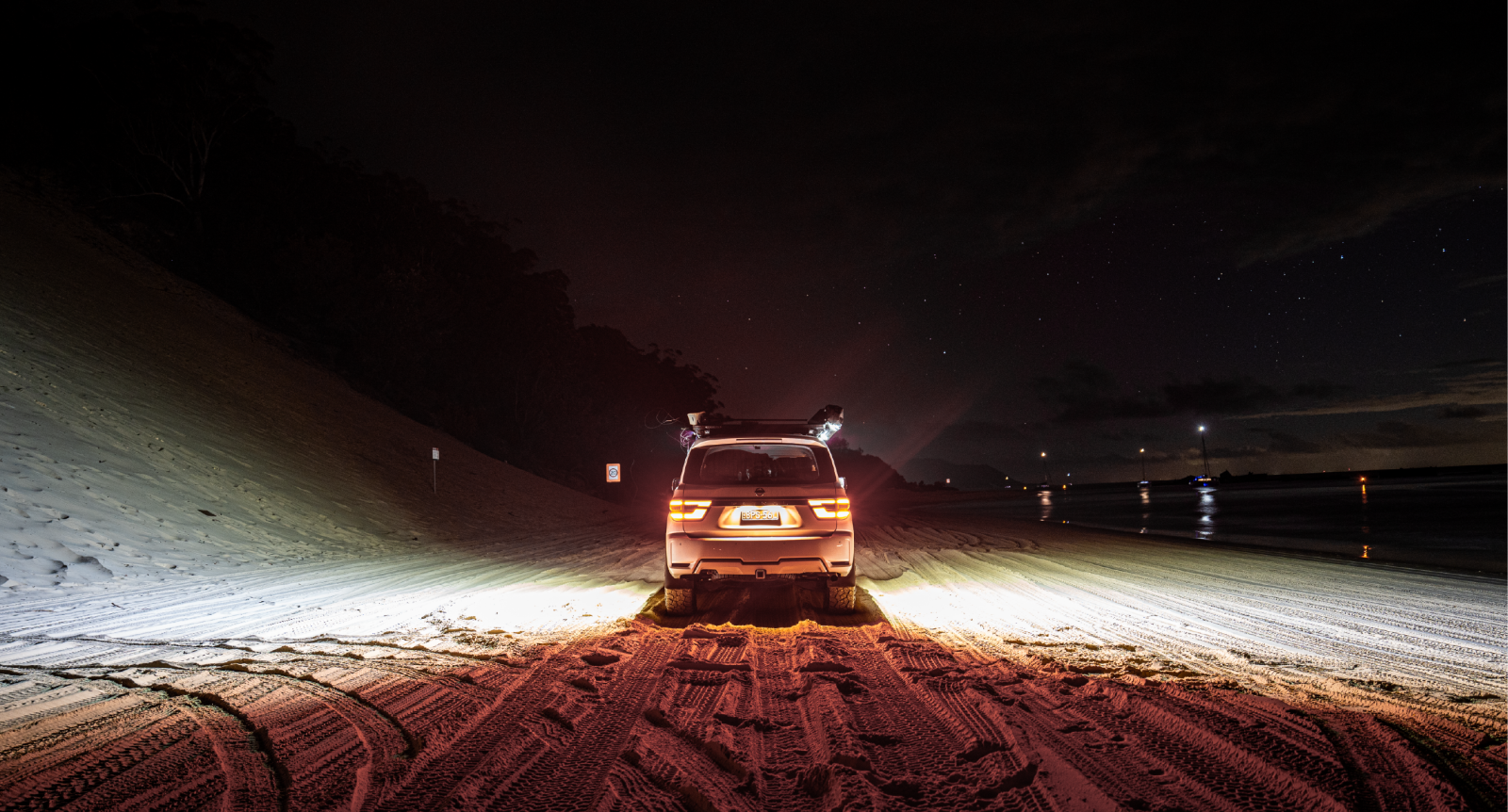

ROK-3 white rock lights on the roof rack of a Nissan Patrol lighting up a beach campsite at night

Sealed against water and dust

The ROK-3 is rated IP69K, the highest rating for water and dust, so it survives creek crossings, pressure washing and corrugated dirt roads. Stainless steel bolts and a rubber base pad hold it firm on corrugated roads.

Easy install

Two screws and two wires

Mount it flat with the supplied screws and rubber base, then connect its two wires (positive and negative) through a switch. Need an angle? Add a 30 degree angled base. Want camp light that does not attract bugs? Pair it with the amber ROK-3.

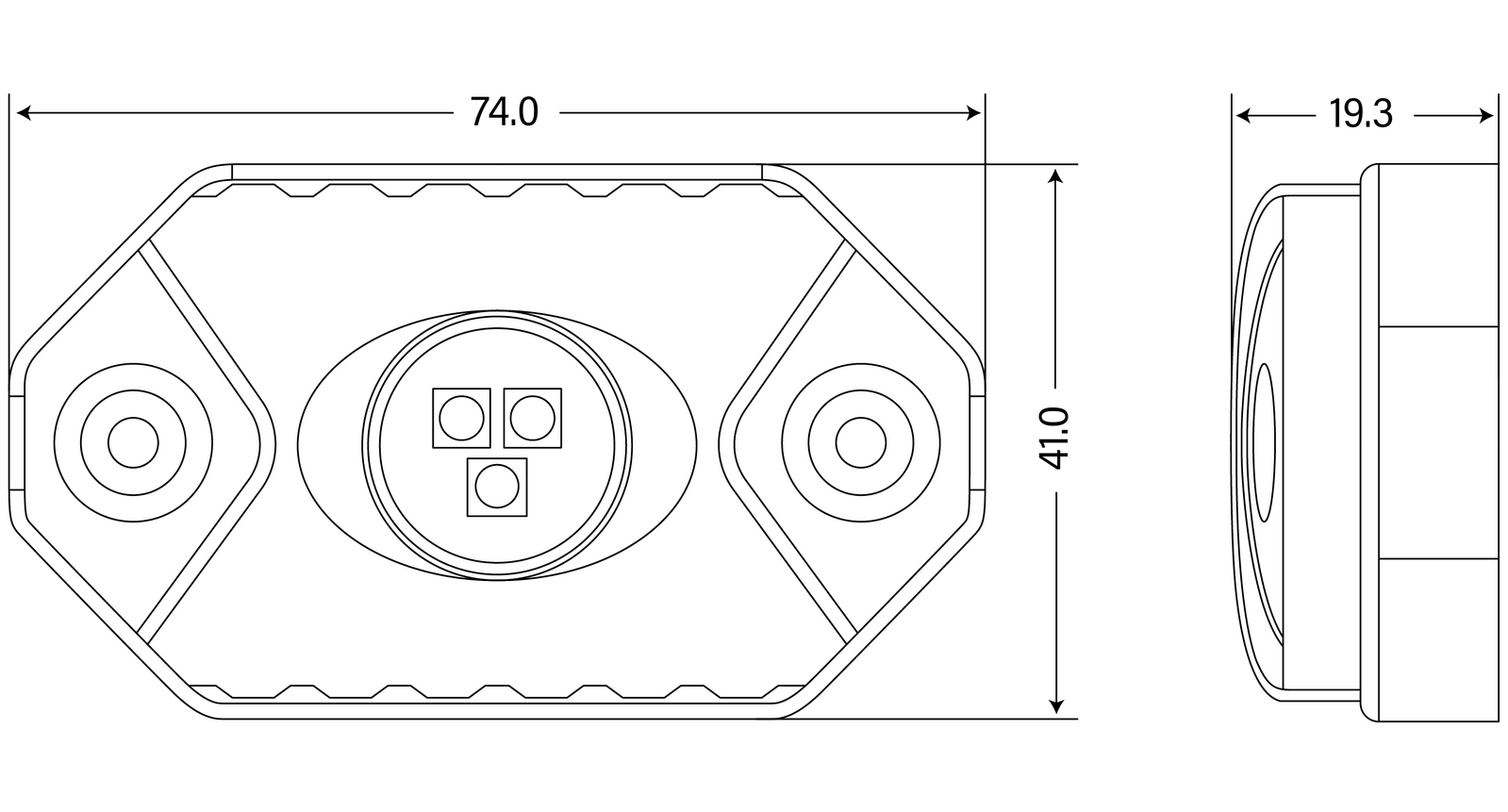

ROK-3 rock light dimension drawing: 74mm long, 41mm wide, 19.3mm deep

Frequently asked questions

What size is it?

The ROK-3 housing is 74mm long, 41mm wide and 19.3mm deep, with a mounting hole at each end.

Is it bright enough for a camp light?

Yes. At 966 lumens one ROK-3 lights up a camp kitchen or the back of a ute canopy. Two on an awning bracket covers a full campsite.

How do I mount it?

Screw it straight onto any flat surface, or use one of our brackets: the 30 degree angled base to tilt the beam, Rhino-Rack Pioneer brackets or awning brackets.

Is it waterproof?

Yes. It is rated IP69K, so it handles rain, river crossings, pressure washing and dust.

Can I dim it?

Yes. It can be dimmed with a PWM (pulse width modulation) dimmer or controller, and it is compatible with the dimming on Redarc RedVision systems.

Can I use them while driving on the road?

They are made for off-road, camp, canopy and work lighting. Rules for extra lights on vehicles differ between states, so check your state rules before using them while driving on public roads.

Do you supply bulk or fleet orders?

Yes, we supply Perception Lighting in bulk Australia-wide. Please contact our team.

ROK-3 white rock lights on a Ford Ranger canopy rack lighting the beach track at night

Features

  • ✓966 lumens of 5700K daylight-white light
  • ✓3 Osram LEDs
  • ✓Super flood beam to light up the area around you
  • ✓IP69K waterproof
  • ✓Runs on 9-32V DC, so it suits 12V and 24V systems
  • ✓Low 6W, 0.5A draw at 12V
  • ✓Simple two-wire connection (positive and negative)
  • ✓Dimmable with a PWM dimmer, compatible with Redarc RedVision dimming
  • ✓Stainless steel bolts and rubber base pad
  • ✓5 year warranty

Specifications

Light

Output966 lumens
LEDs3 x Osram
Power6W
Colour temperature5700K daylight white
Beam patternSuper flood

Electrical

Operating voltage9-32V DC
Current draw0.5A at 12V
Wiring2 wires: positive and negative
DimmingPWM dimmable, compatible with Redarc RedVision

Build

Waterproof ratingIP69K
Dimensions74 x 41 x 19.3 mm
MountingSurface mount, stainless steel bolts, rubber base pad
Warranty5 years

What's Included

  • 1 x ROK-3 LED rock light (white 5700K)
  • Stainless steel bolts and rubber base pad

Product Details

SKU ROK-3
Model # ROK-3
Barcode # 9359968001699
Brand Perception Lighting
Voltage 9-32V DC
Light colour White 5700K
Waterproof rating IP69K
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.070m
Shipping Length 0.150m
Shipping Cubic 0.000498000m3
