DETAILS


Overview

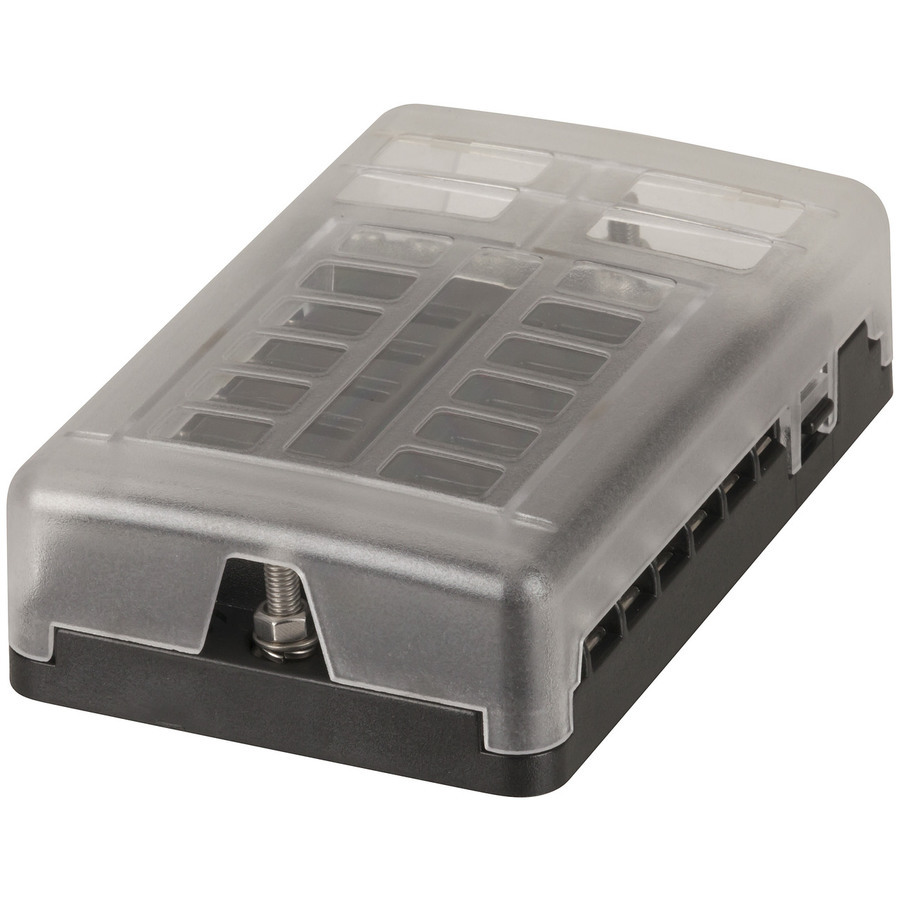

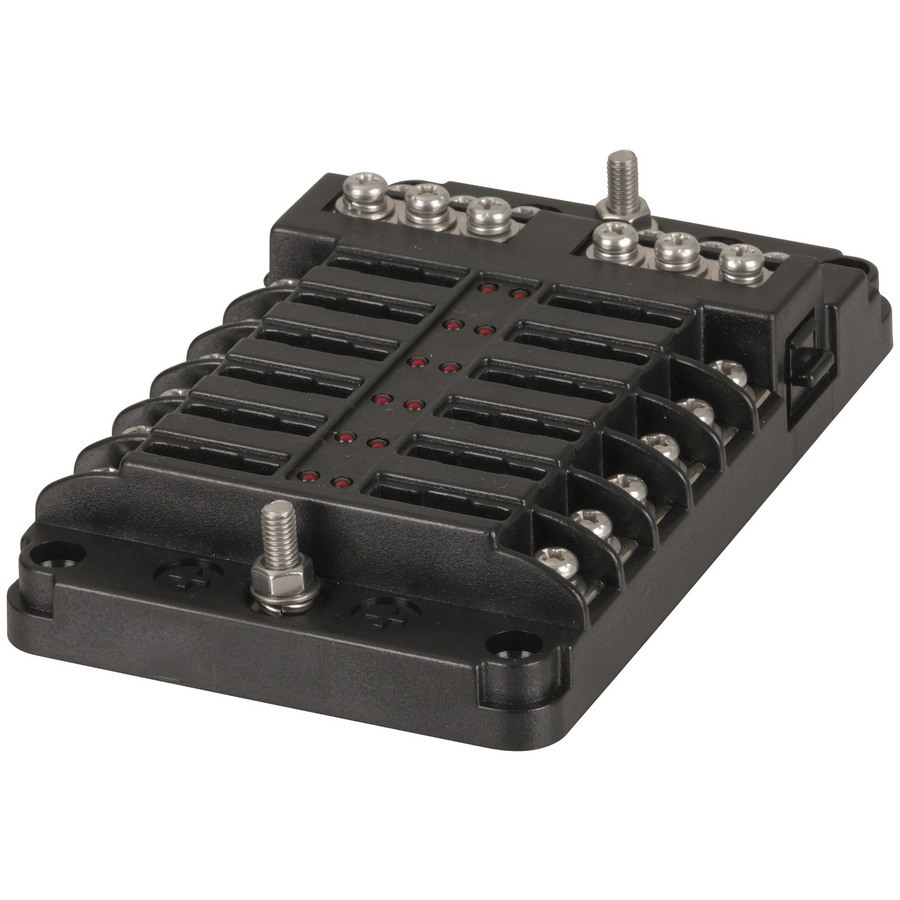

This versatile fuse block provides fused distribution of your positive terminals, as well as distribution for the negative wires. This is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30A, up to 100A combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.

Features:
- Up to 30A per output
- Red LED blown fuse indication
- Negative bus bar

Specifications:
Main Line:
 Terminal Rating: M5 Threaded Studs (32VDC, 100A Max.)
 Wire Size: #4-6 AWG
Single Line:
 Terminal Rating: M4 Threaded Studs (32VDC, 30A Max.)
 Wire Size: #12-16 AWG
Terminals: Nickel Plated Copper
Screws: Stainless Stee

Features

12 Way Fuse Block with Bus Bar Brand: 12 Volt Direct SKU: TVD-FB12B

Product Details

SKU TVD-FB12B
Barcode # 0744109316319
Brand 12 Volt Direct
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
