12 Volt Direct MPPT Solar Regulator 100V 50A Pro Series with Bluetooth
Buy Now, Pay Later.
DETAILS
Overview
Maximize Solar Efficiency With Smart Bluetooth Control!

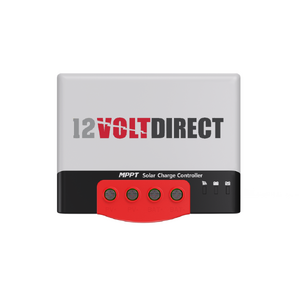

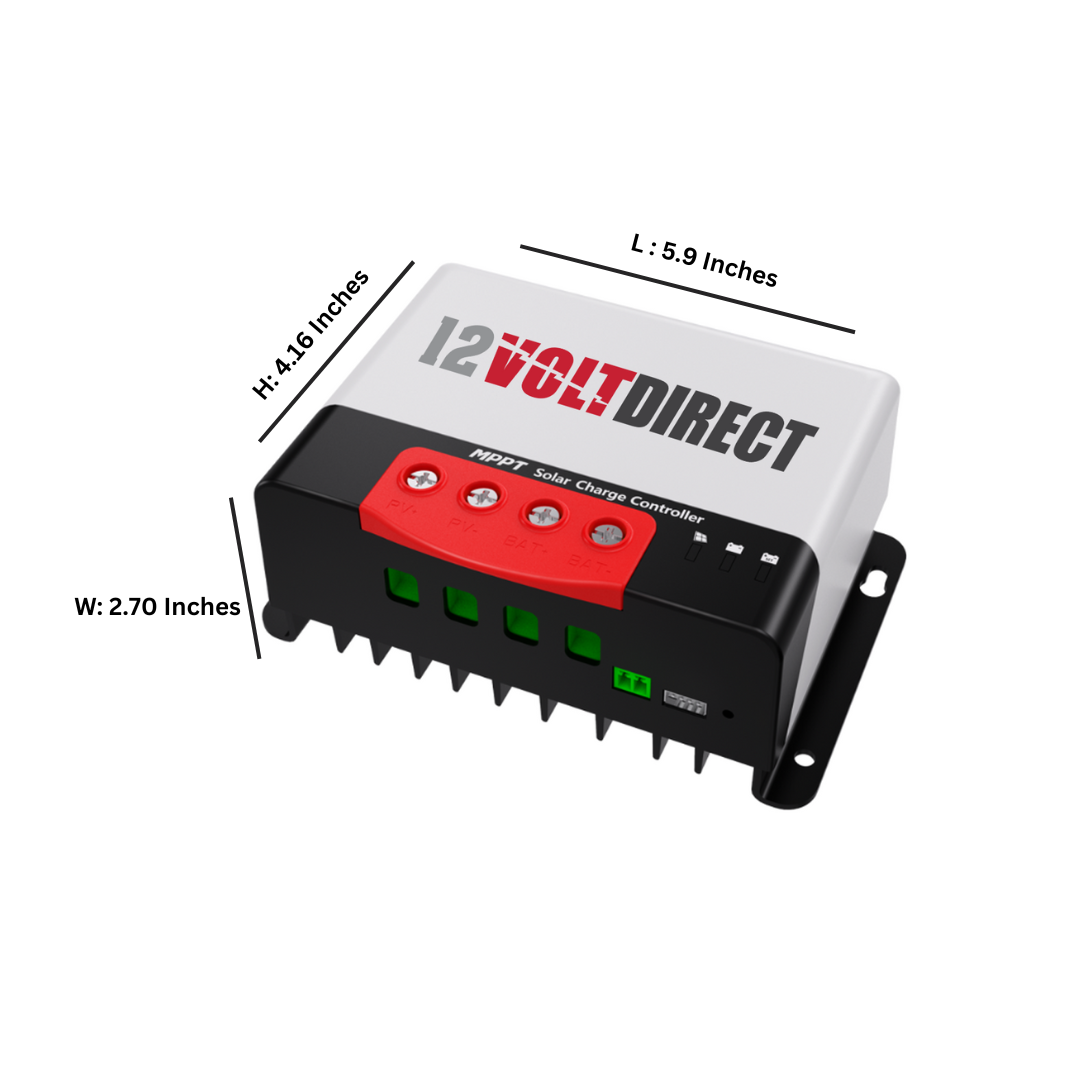

The 12 Volt Direct MPPT Solar Regulator 100V 50A Pro Series w/ Bluetooth is a high-performance charge controller designed to maximize solar energy efficiency for 12V and 24V battery systems. With advanced Maximum Power Point Tracking (MPPT) technology, it dynamically adjusts voltage and current to ensure optimal power output, improving charging efficiency by up to 99.9%.
Featuring a 100V solar input capacity and a powerful 50A output, this Pro Series regulator is ideal for off-grid solar systems, RVs, boats, cabins, and backup power setups. Its Blueto0oth connectivity allows for seamless real-time monitoring and system control via a mobile app, providing instant access to charging status, energy statistics, and performance optimization.
Designed with multi-stage charging algorithms, it extends battery life and ensures stable and efficient power distribution. The regulator is compatible with lithium, AGM, gel, and lead-acid batteries and comes equipped with comprehensive safety features, including overvoltage, short-circuit, overheating, and reverse polarity protection.
With a rugged, weather-resistant build, this MPPT solar regulator is engineered for long-lasting outdoor performance, making it a reliable and intelligent choice for professional solar energy management.
KEY FEATURES:
- MPPT Technology: Optimizes solar power by constantly tracking the best energy conversion
- point
- Bluetooth Connectivity: Remotely control and monitor your system through your
- smartphone or tablet
- 50A Output: Handles larger solar setups with high power demands
- Wide Voltage Range: Supports up to 100V input, adaptable to various solar panel
- configurations
- Advanced Protection: Includes overcharge, overcurrent, and short-circuit protection for
- safe operation
- Temperature Compensation: Automatically adjusts charging to adapt to temperature
- changes
- Real-Time Monitoring: Access system performance and diagnostics from anywhere
SPECIFICATIONS:
- Input Voltage: 100V DC Max
- Output Current: 50A
- Charging Efficiency: 98%
- Bluetooth Range: Up to 50 meters
- Operating Temperature: -20°C to 60°C
- Mounting: Wall Mountable
- Protection: Overcharge, overcurrent, short-circuit, and temperature protection
- Display: LED indicators, Bluetooth app support
- System Voltage: 12V DC
Features
12 Volt Direct MPPT Solar Regulator 100V 50A Pro Series w/ Bluetooth Brand: 12 Volt Direct SKU: TVD-MPPT10050-PROProduct Details
| SKU | TVD-MPPT10050-PRO |
| Model # | TVD-MPPT10050-PRO |
| Barcode # | 9359968003549 |
| Brand | 12 Volt Direct |
| Current | 20A |
| Input Voltage | 100V |
| Shipping Weight | 1.6000kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.100m |
| Shipping Length | 0.230m |
| Shipping Cubic | 0.000150000m3 |
