LB300 Pro / Weekender & LB200 Compact Battery Tray

In Stock - Ready for immediate dispatch or pickup
Order in for Dispatch Today
Pickup Available from Punchbowl, NSW

DETAILS

Overview

Bolt down.
Strap in.

A made-to-measure steel tray for your 12 Volt Direct LB300 & LB200 Compact lithium battery. Bolt it down, strap the battery in, and it stays put on the roughest roads.

Made-to-measure fitSized to the LB300 footprint, 345 x 190 mm.

Bolts down solid6 mm mounting holes through the base.

Strap slots built inSlots at each end for a tie-down strap.

Made for the LB300 & LB200 Compact

This 12 Volt Direct battery tray is cut and folded to suit our 12 Volt Direct 300Ah Pro Series (TVD-LB300-PRO), 12 Volt Direct 300Ah Weekender (TVD-LB300-WKNDR) and 12 Volt Direct 200Ah Compact Weekender (TVD-LB200-WKNDR-COMPACT) lithium batteries. The base sits flat under the battery and the folded ends stop it shifting forward and back.

Use it in a canopy, under a drawer system, in a camper or a van. It gives the battery a proper mounting point instead of letting it ride loose, so your terminals and cables aren’t taking the strain over corrugations.

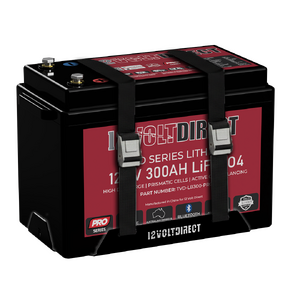

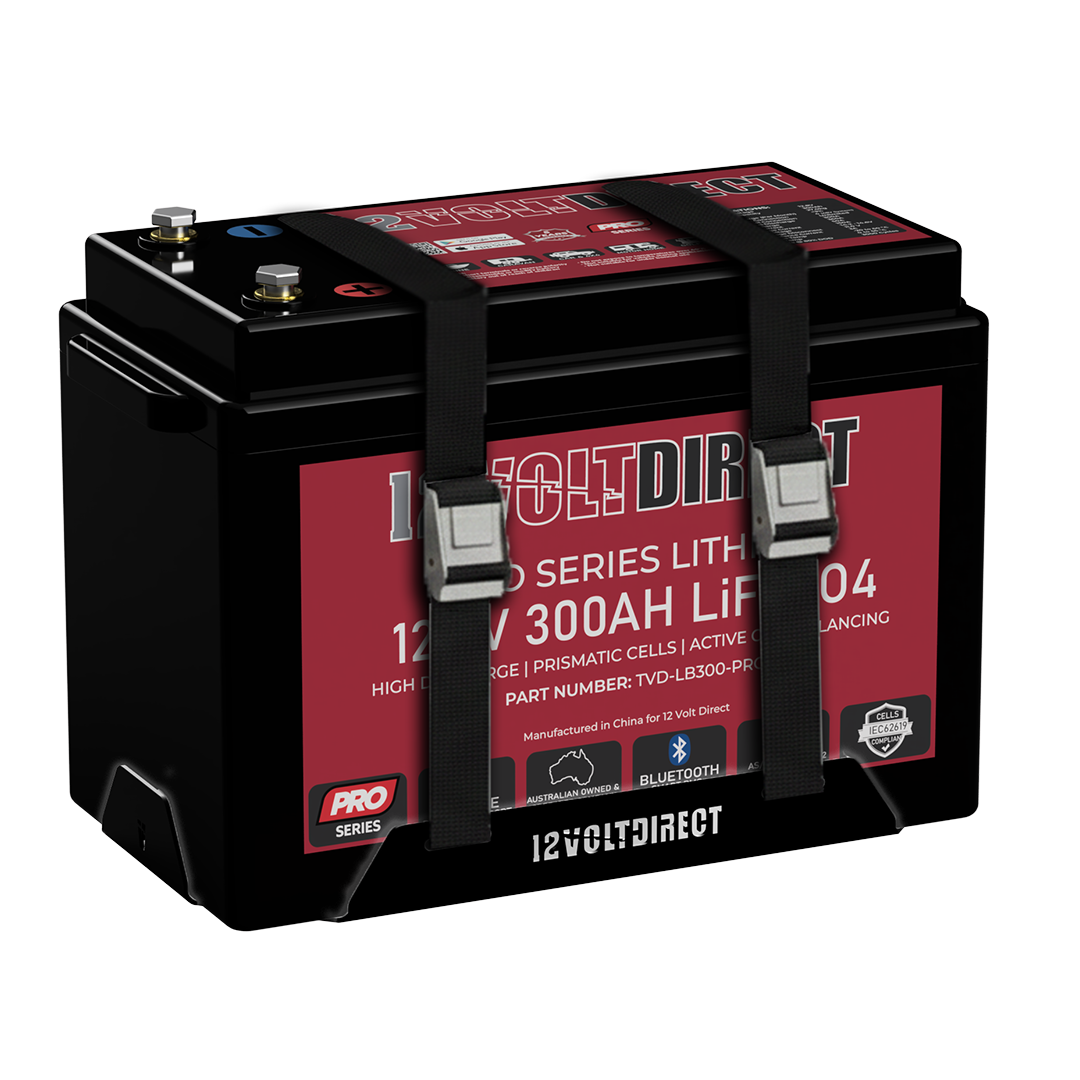

12 Volt Direct LB300 battery tray fitted

Straps shown for illustration. Not included.

Compatibility

✓12 Volt Direct 300Ah Pro Series (TVD-LB300-PRO)
✓12 Volt Direct 300Ah Weekender (TVD-LB300-WKNDR)
✓12 Volt Direct 200Ah Compact Weekender (TVD-LB200-WKNDR-COMPACT)

Not suitable for:

✕12 Volt Direct 200Ah Pro Series / 200Ah Weekender – use TVD-BT04

Tech specs

Suits	12 Volt Direct 300Ah Pro Series (TVD-LB300-PRO) 12 Volt Direct 300Ah Weekender (TVD-LB300-WKNDR) 12 Volt Direct 200Ah Compact Weekender (TVD-LB200-WKNDR-COMPACT)

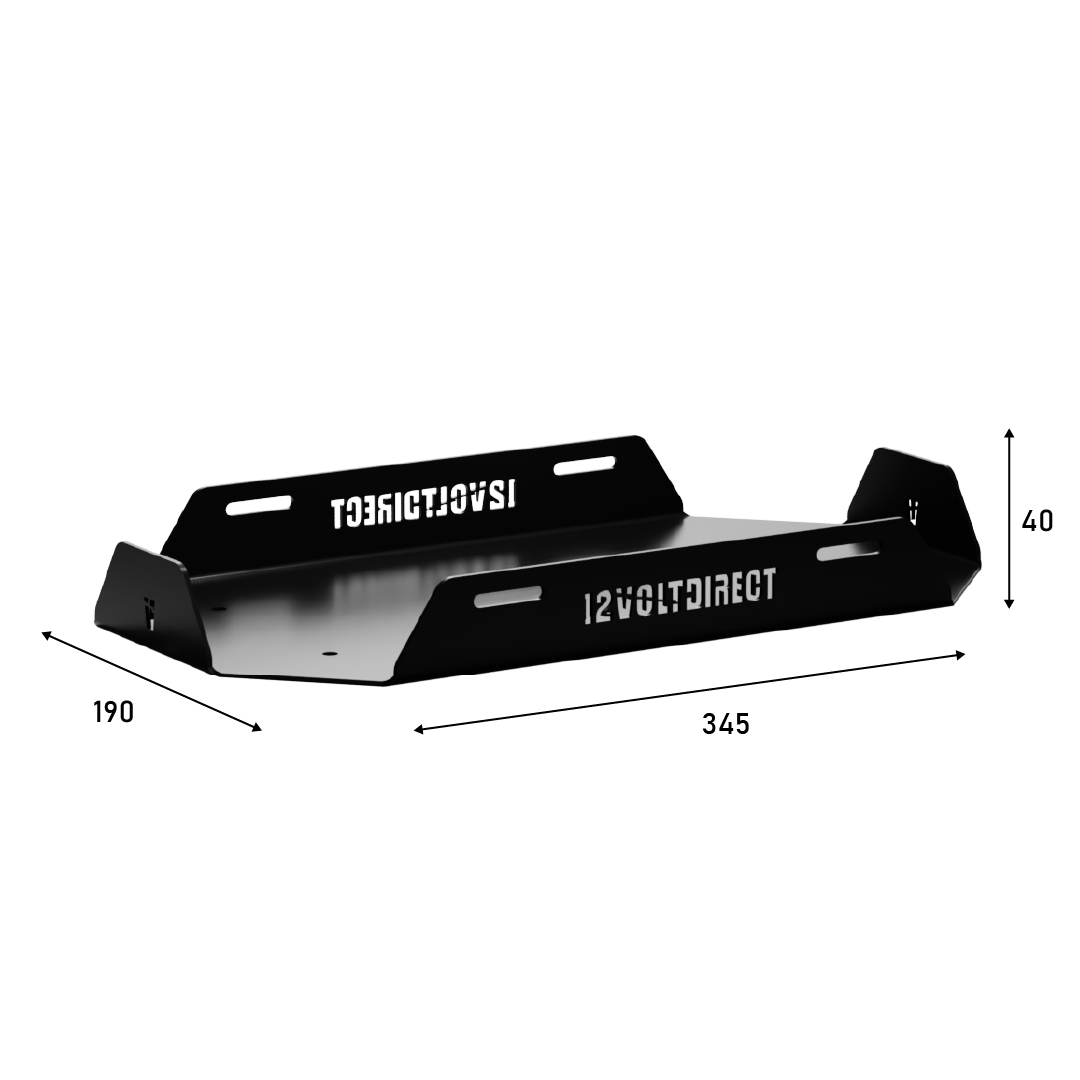

Tray size	345 x 190 mm x 40 mm high
Material	Powder-coated steel, black
Mounting	6 mm bolt holes in the base
Tie-down	Strap slots at each end
Brand	12 Volt Direct
Warranty	12 months

What’s included

1 x 12 Volt Direct LB300 battery tray

Tie-down straps and mounting bolts are not included.

Simple installation

Three steps

No brackets to build and no special tools. A drill, a few bolts and a strap is all it takes.

1Pick your spot

Choose a flat, solid surface in the tub, canopy, drawer, van or camper. Check there’s room for cables and airflow.

2Bolt it down

Mark and drill through the 6 mm holes and fix the tray with bolts or screws to suit the surface.

3Strap it in

Sit the battery in the tray and run a tie-down strap through the end slots and over the top. Cinch it tight.

Always use a strap

The tray stops your battery sliding, but a tie-down strap through the end slots is what holds it down on rough roads. Straps aren’t included, so use a cam or ratchet strap rated for the weight.
